Xerox Phaser 6100

Summary of Product
4-6

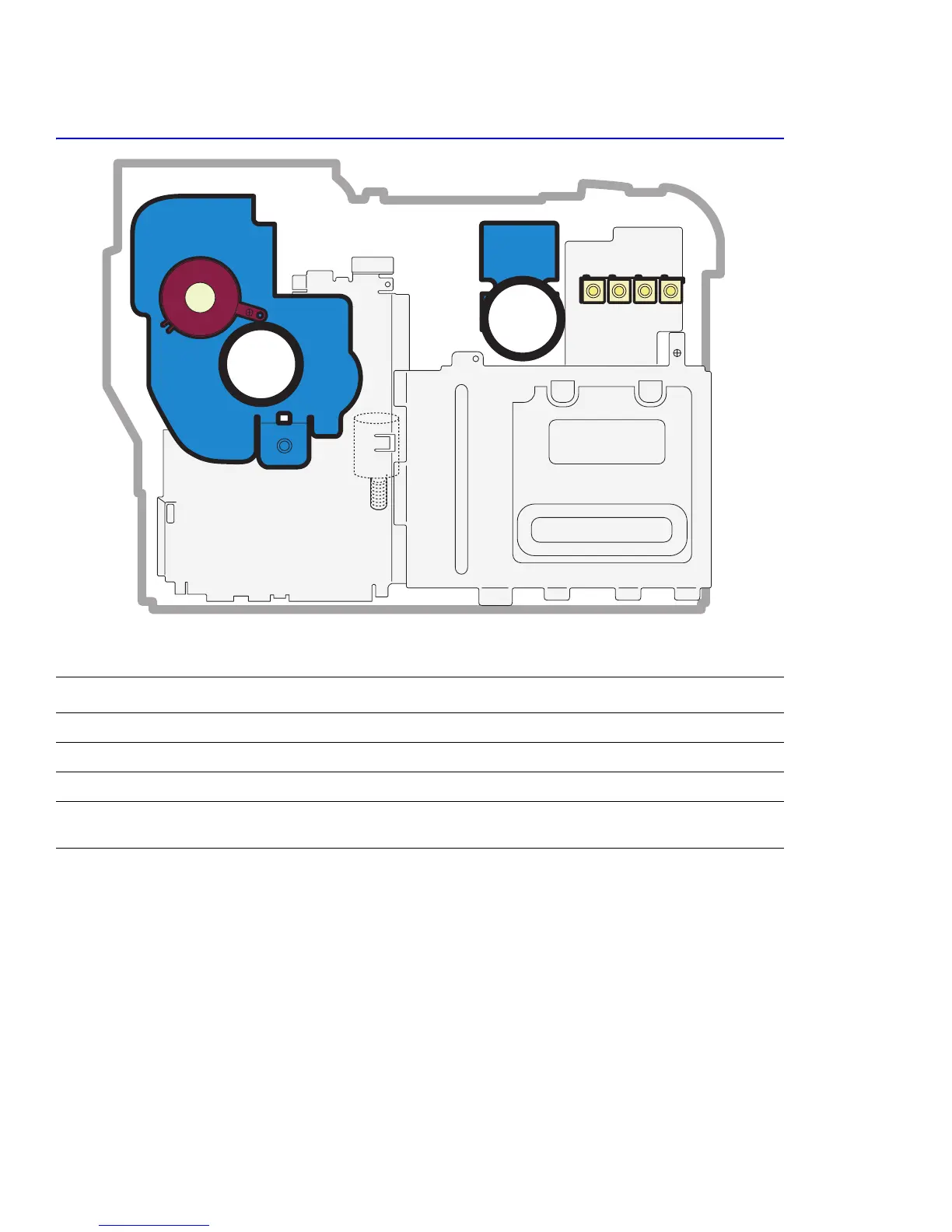

4.1.2 Motor and Fan Layout
No. Name Description
1. Main Motor Drives the imaging unit, transfer belt, feed, fuser, exit and duplex unit.
2. DEVE Motor Drives the toner cartridges and transfer belt cleaning cam.
3. Fuser Fan Cools the fuser.
4. Waste Toner Motor Transfer collected waste toner from the imaging unit and transfer belt
to the waste toner cartridge.
3. Fuser Fan
3. Fuser Fan
1. Main Motor
1. Main Motor
2. DEVE Motor
2. DEVE Motor
4. Waste Toner Motor
4. Waste Toner Motor
3. Fuser Fan
1. Main Motor
2. DEVE Motor
4. Waste Toner Motor
