Xerox Phaser 6100 Service Manual

Parts List
Service Manual 9-7

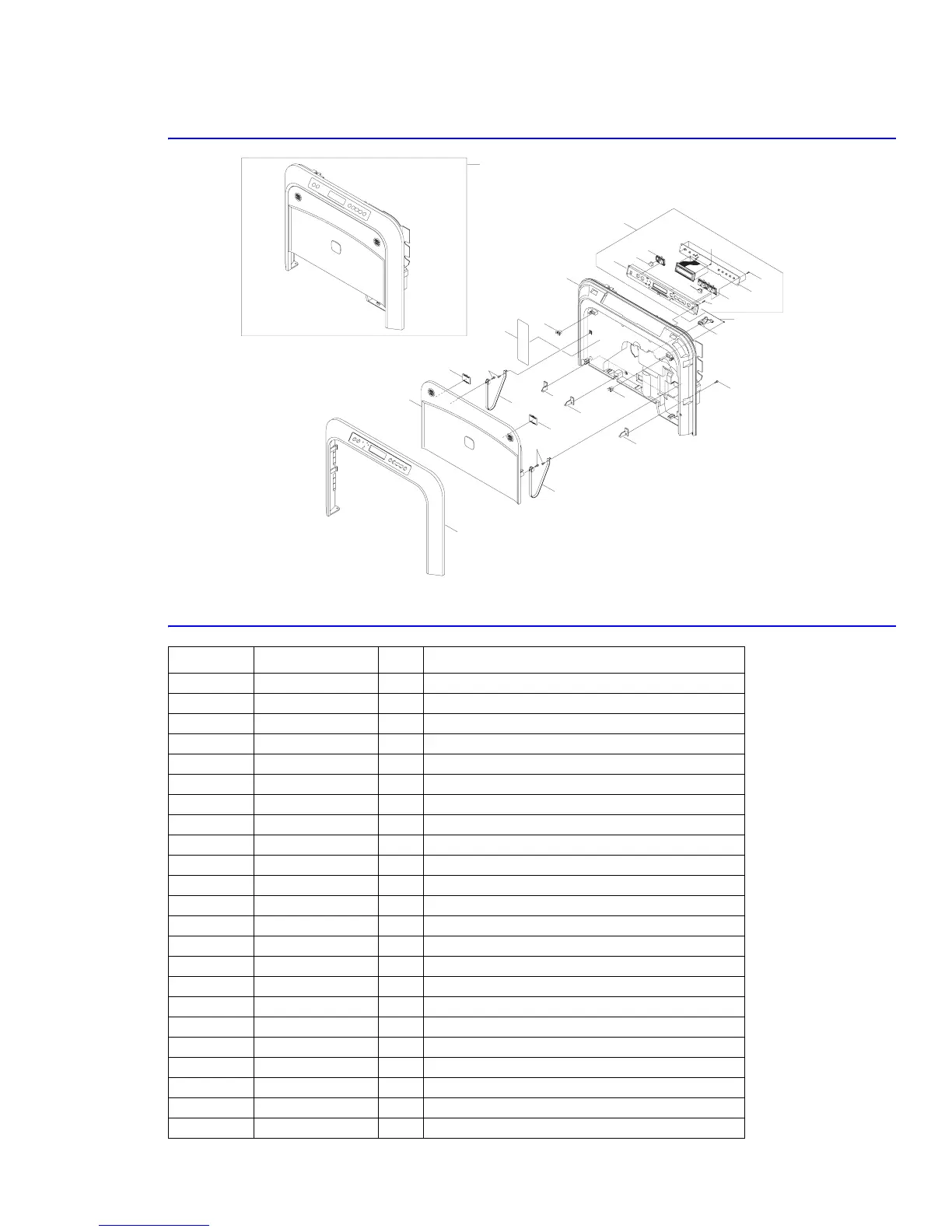

9.2 Front Cover
Front Cover 9.2
No. Part number Qty Part Name and (part description)
0 1 Xerox Front Cover
1 1 Cover-Front Hinge F
2 2 Cover Front Hinge R
3 116-1917-00 1 Waste Cartridge Lock
5 116-1937-00 2 Front Cover Lock
6 116-1918-00 1 Waste Cartridge Lock Spring
7 2Strap
8 116-1938-00 1 Front Cover Deco
9 116-1869-00 1 Front Cover Inner
10 116-1870-00 1 Front Cover
11 116-1871-00 2 Front Cover Latch
12 1 Cover OPE Frame
13 1 OPE Key 1
14 1 OPE Key 1 Cap
15 1 OPE Key 2
16 1 OPE Key 2 Cap
17 1 Label(P) Front Inner
18 1 Sub-Panel Board
19 333-4414-00 1 Front Panel Assembly (Control Panel)
S4 P/O Screw Kit 2 Screw-Taptite
S5 P/O Screw Kit 6 Screw-Taptite
S8 P/O Screw Kit 4 Screw-Taptite
S3 P/O Screw Kit 4 Screw-Tapping
8
10
11
2
7
7
S8
2
1
5
3
14
13
S3
6
11
5
17
12
9
19
16
15
0
18
S5
S3
S4
S8

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
