Xerox Phaser 6100 Service Manual

Summary of Product
4-14

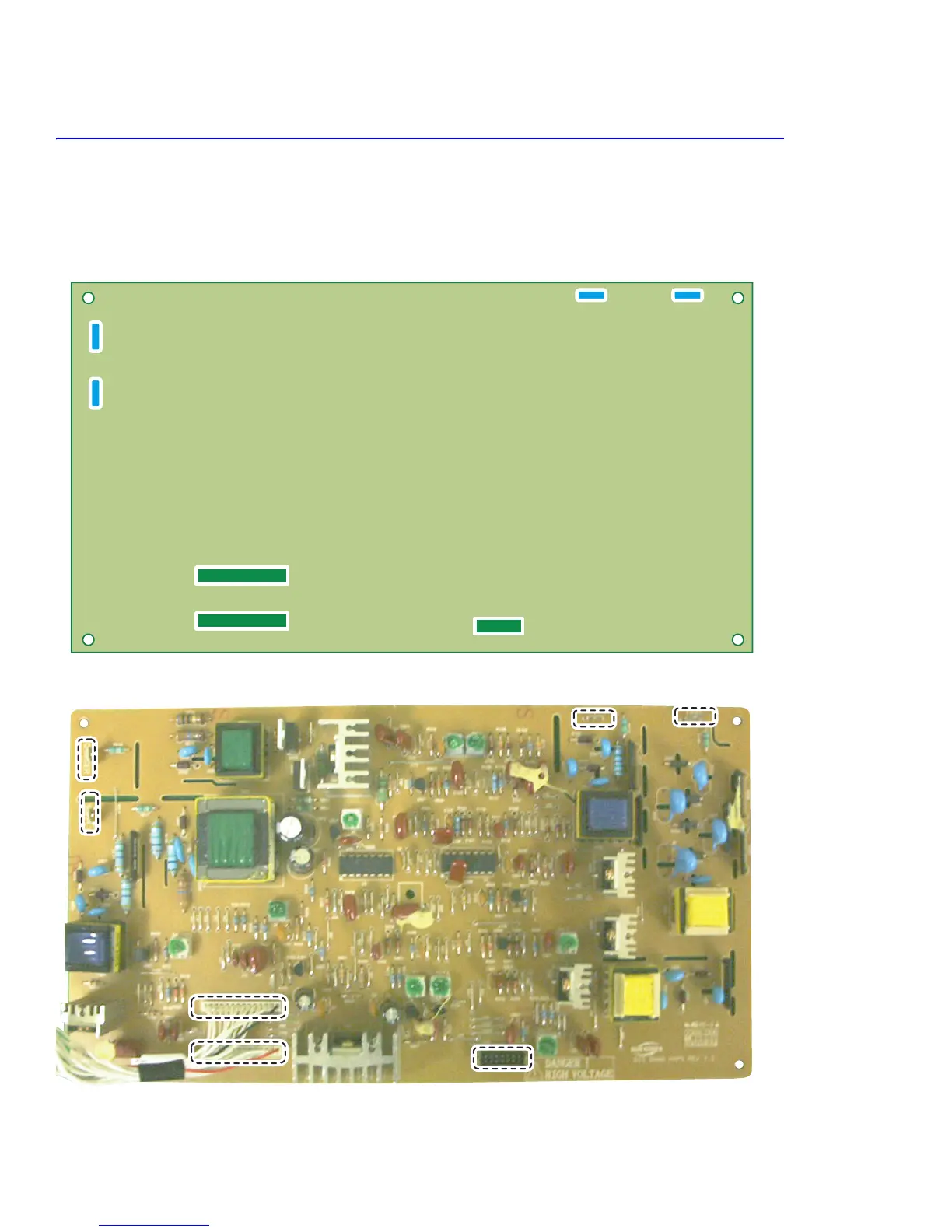

4.1.7 HVPS (High Voltage Supply) Board
The HVPS uses the +24 volts supplied by the LVPS to generate the high voltages used by the charge roller, toner
cartridge, imaging unit (T1), transfer belt (T2), and transfer roller. For the best print-quality images, these hifh
voltages must be controlled and maintained accurately.
Warning
High Voltage! Be sure to follow the steps outlined in Section 1.5.4 when servicing this assembly.
SUPPLY
T1 T2
CHARGER
CN1
CN2
SUPPLY
SUPPLY
T1
T1
T2
T2
CN1
CN1
CN2
CN2
SUPPLY
T1 T2
CHARGER
CHARGER
CHARGER
CN1
CN2

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
