Disassembly
Service Manual 6-37
6.4.16 Laser Unit (PL 9.1.21)
1. Remove the transfer unit and imaging unit (protect from light and damage). (6.3.3)
2. Remove the DEVE cover (Door A). (6.4.15)
3. Remove the Laser Unit Brush. (6.4.15.1)

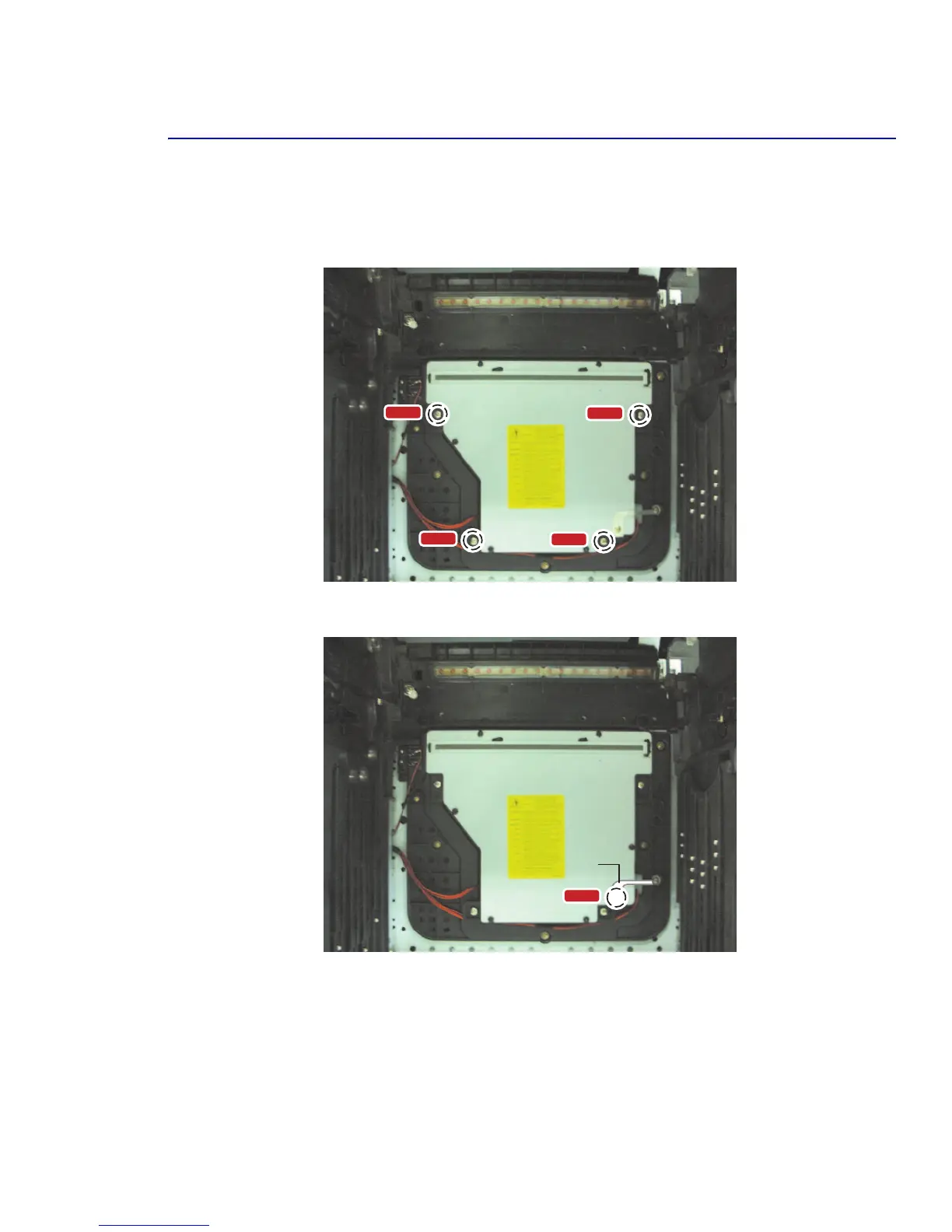

4. Remove 4 screws (4*10 silver).
5. Remove 1 screw (3*8 yellow).
Screw
Screw
Screw
Screw
Screw
LSU GroundLSU Ground
To Next Page
