Xerox Phaser 6100 Service Manual

Parts List
Service Manual 9-19

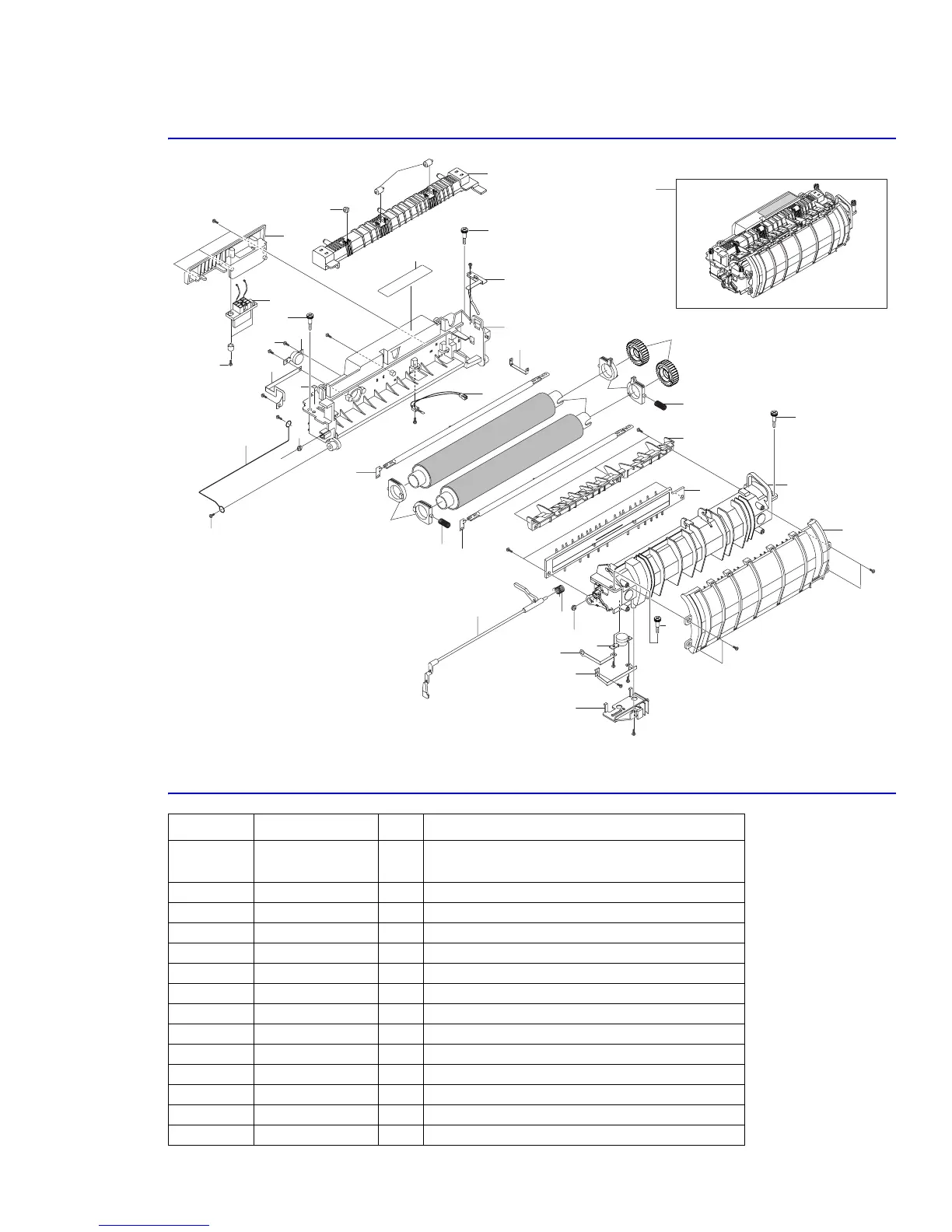

9.9 Fuser Assembly
Fuser Assembly 9.9
No. Part number Qty Part Name and (part description)
0 119-1579-00
116-1567-00
1
1
230V Fuser Assembly
110V Fuser Assembly
1 2 Roller-Heat
2 2 Bearing Fuser F
3 2 Bearing Fuser Gear
4 2 Gear Fuser Z35
5 2 Spring-ETC-PR
6 1 Fuser Upper
7 1 Fuser Lower
8 1 Ground Fuser
9 1 NPR Electrode AC Wire
12 2 Thermostat
13 1 NPR Electrode F
14 1 NPR Electrode PR
15 1 NPR Electrode AC Plate
21
27
23
2
0
5
8
6
5
7
12
15
28
22
28
S10
S2
S2
9
25
24
14
16
20
34
34
26
30
1
3
4
18
19
17
34
34
13
S10
12
29
31
35
33
32

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
