Xerox Phaser 6100

Disassembly
Service Manual 6-17
6.4.4b Duplex Unit (PL 9.6.2) and Transfer Roller (PL 9.1.54)
1. Remove the Duplex Cover Assembly (Door C) (6.4.4a)

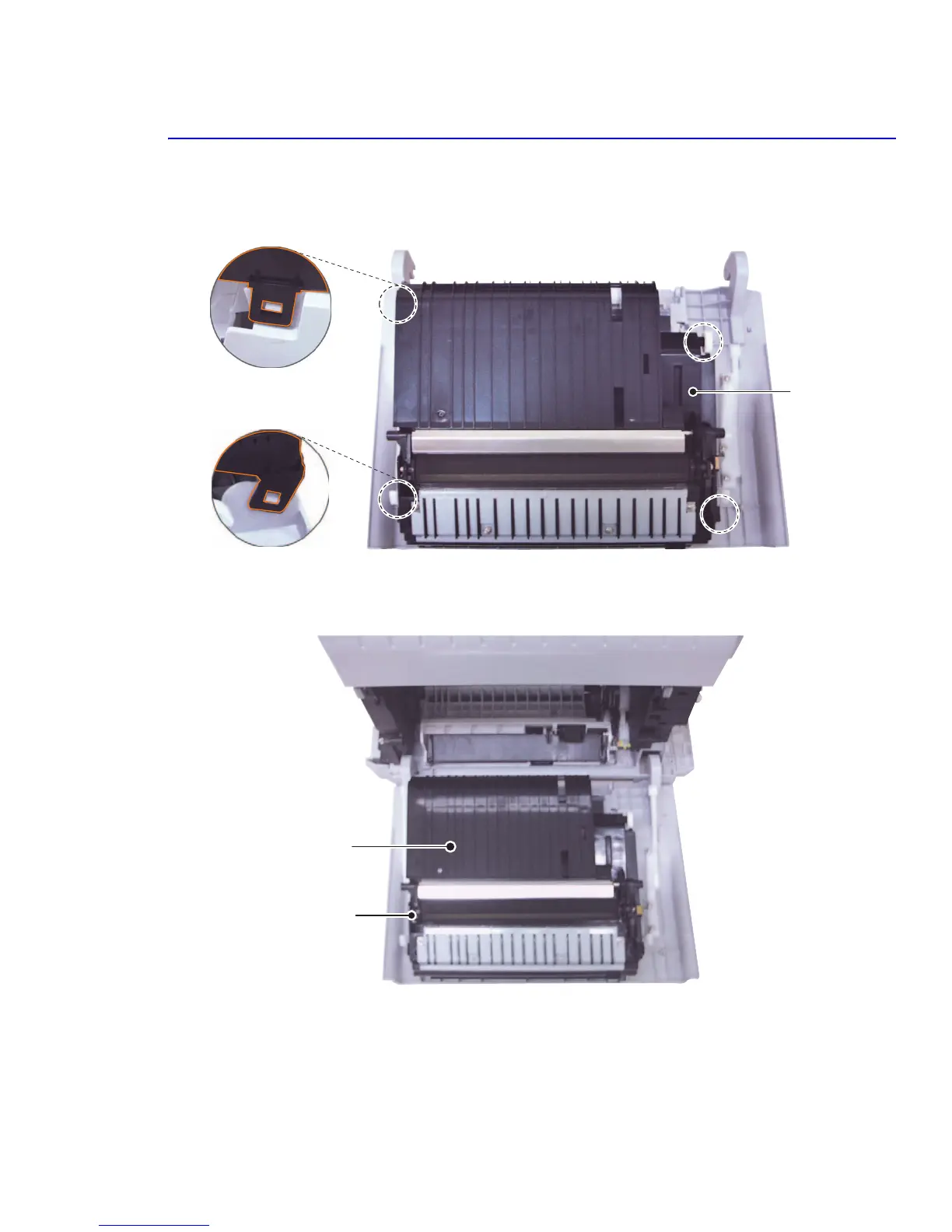

2. Release the 4 hooks on the right and left side of the duplex unit with a flat-blade screwdriver.
3. Remove the duplex assembly from the door.
4. Remove the transfer roller by turning the bushing on each end of the roller.
Duplex
Assembly
Hook
Hook
Hook
Hook
Duplex
Assembly
Transfer
Roller
