Xerox Phaser 6100 Service Manual

Parts List
Service Manual 9-17

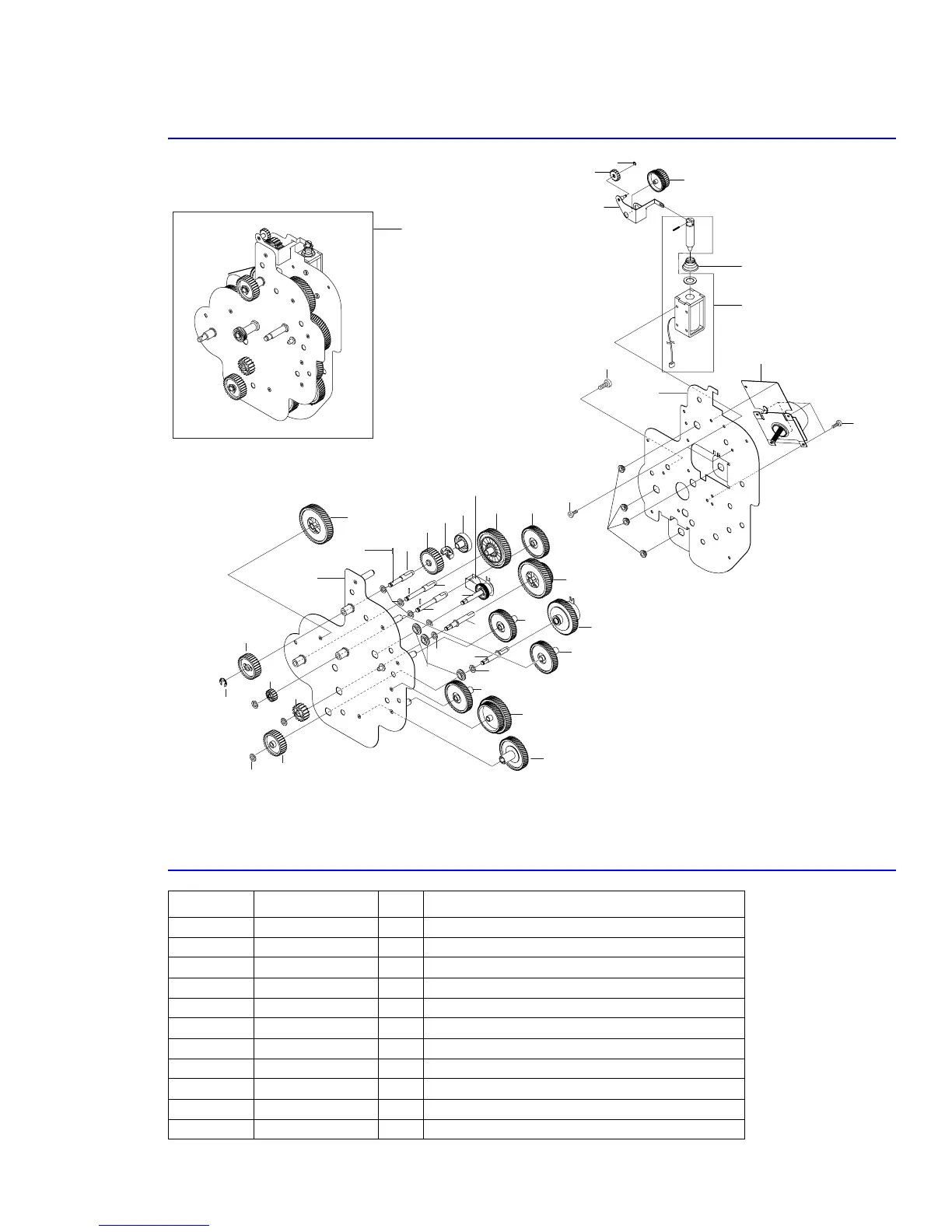

9.8 Main Drive Assembly
Main Drive Assembly 9.8
No. Part number Qty Part Name and (part description)
0 116-1850-00 1 Main Drive ASM
1 116-1880-00 1 Motor BLDC-Main Drive (Main Motor)
2 1 Duplex Solenoid
3 116-1934-00 1 Clutch Cam Solenoid
4 1 Clutch Electric Feed
5 3 Busing 8/5
6 6 Bushing D6/L4
7 P/O Hardware Kit 1 Spring ETC Solenoid DP
8 1 Gear Feed Drive_Z37
9 1 Gear Fuser Drive 1_Z47
10 1 Gear Fuser Drive 2_Z30
28
38
16
33
9
4
11
12
12
17
18
12
31
32
3
6
29
22
23
25
24
10
20
14
8
35
37
15 13
26
42
42
21
5
2
36
30
27
19
7
0
1
S17
S11
S11

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
