Xerox Phaser 6100 Service Manual

Troubleshooting
Service Manual 8-1
8.1 Verifying Symptoms
Before attempting to repair a problem with the printer, obtain a detailed description of the problem from the customer.
8
Troubleshooting

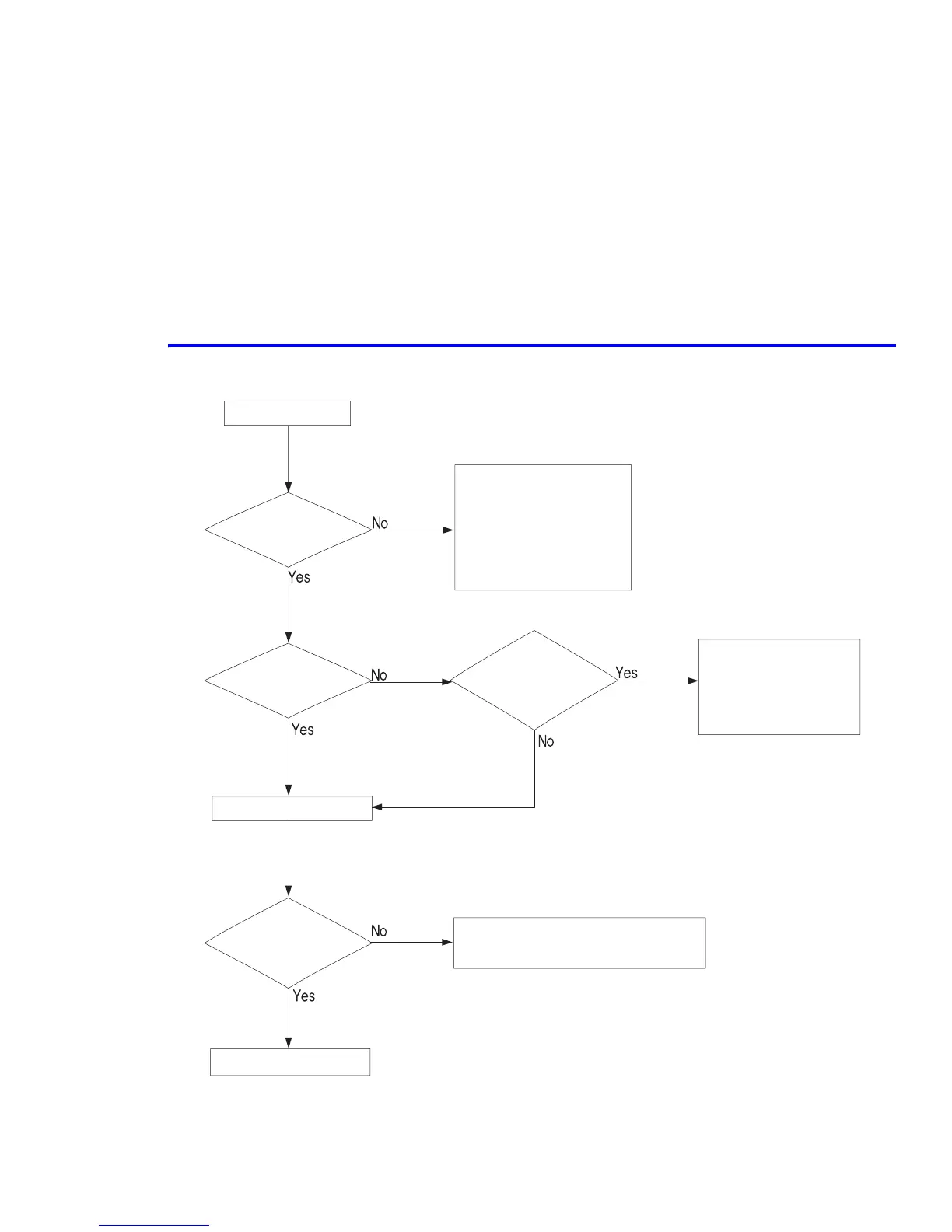

Control Panel
ON?
See
"8.1.1 Basic Check List"
Print
Print-
quality is
normal?
END
Ready
or
Power Saver
Indicate
"Error Message"
Power On
- No Power
- Control Panel
- Main Board
See
"8.5 Error Message"
See
"8.2 Print Quality Troubleshooting"

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
