Xerox Phaser 6100 Service Manual

Disassembly
6-42
6.4.19 MPT (Multi-Purpose Tray) Feed Assembly and Roller (PL 9.17.0)
1. Remove all consumables (Toner cartridges, Transfer unit, and Imaging Unit (protect from light)) (6.3.3)
2. Remove the Front Cover and Top Cover. (6.4.1)
3. Remove the Rear Cover. (6.4.3)
4. Remove the Duplex Cover. (6.4.4)
5. Remove the LVPS and LVPS Cover. (6.4.7a)
6. Remove the LVPS inner cover by lifting it out of the printer, there are no screws. (See PL 9.1-55)
7. Disconnect 2 harnesses (CN31 and CN32) from the main board.
8. Free the wiring harness. Cut the tie wrap to loosen the sensor and solenoid harness on the rear of the printer.

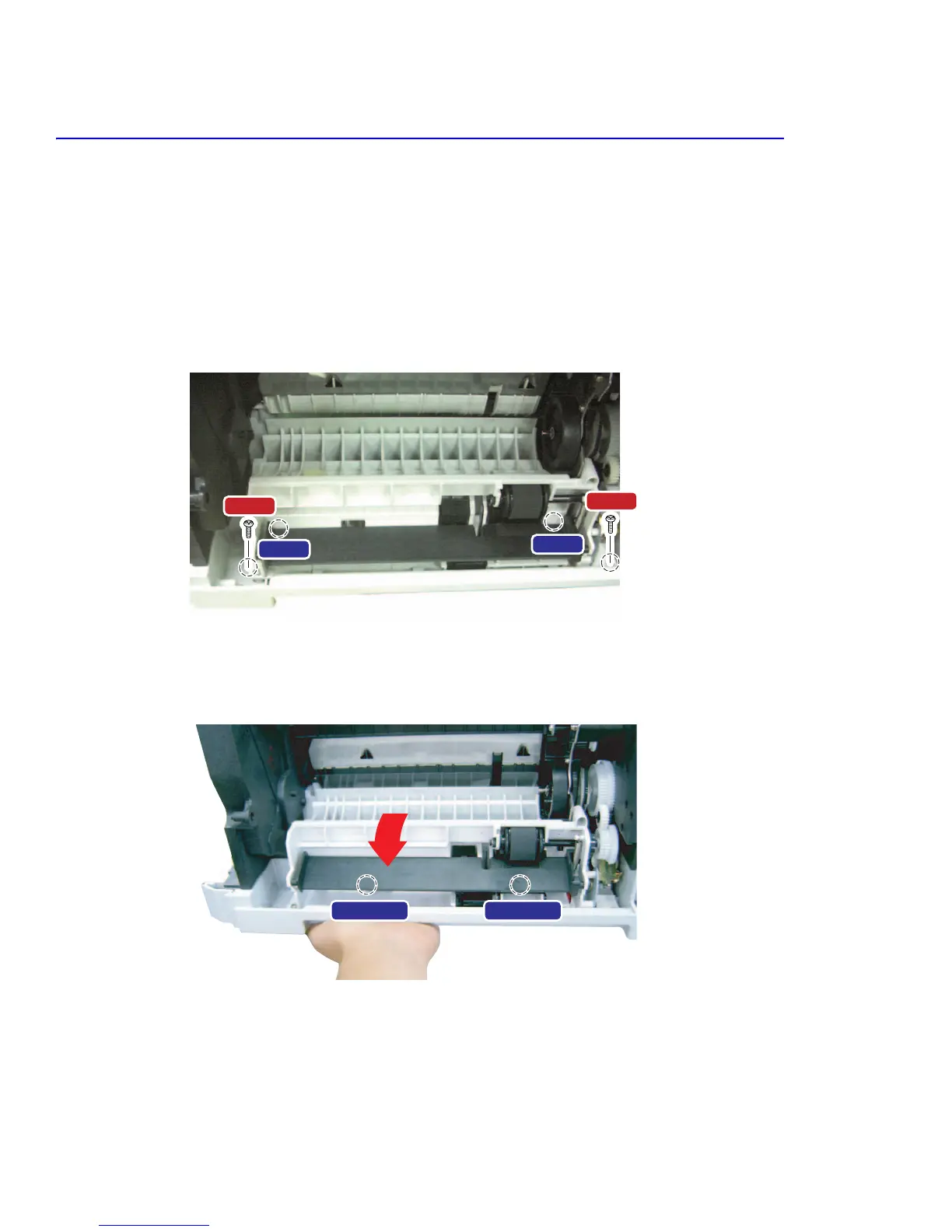

9. Remove the 4 screws (3*10 Silver) securing the asembly to the base.
10. Slide the right side of the printer 3 to 4 inches over the edge of the table to give access to the underside.
Caution
Do not tilt the printer excessively or waste toner will spill.
11. Reach up underneath to locate the locking tabs which secure the MPT to the base. Pull the tabs forward and up
to release the assembly. Rotate the whole assembly towards you to remove it.
>> On re-assembly:
1. Insert the assembly in at a 45
o
angle, aligning with the 3 tabs on the base of the printer.
Caution
Be careful not to damage the solenoid on reassembly.
Screw
Screw
Screw
Screw
Snap -Fit Snap -Fit
