Xerox Phaser 6100 Service Manual

Parts List
9-22

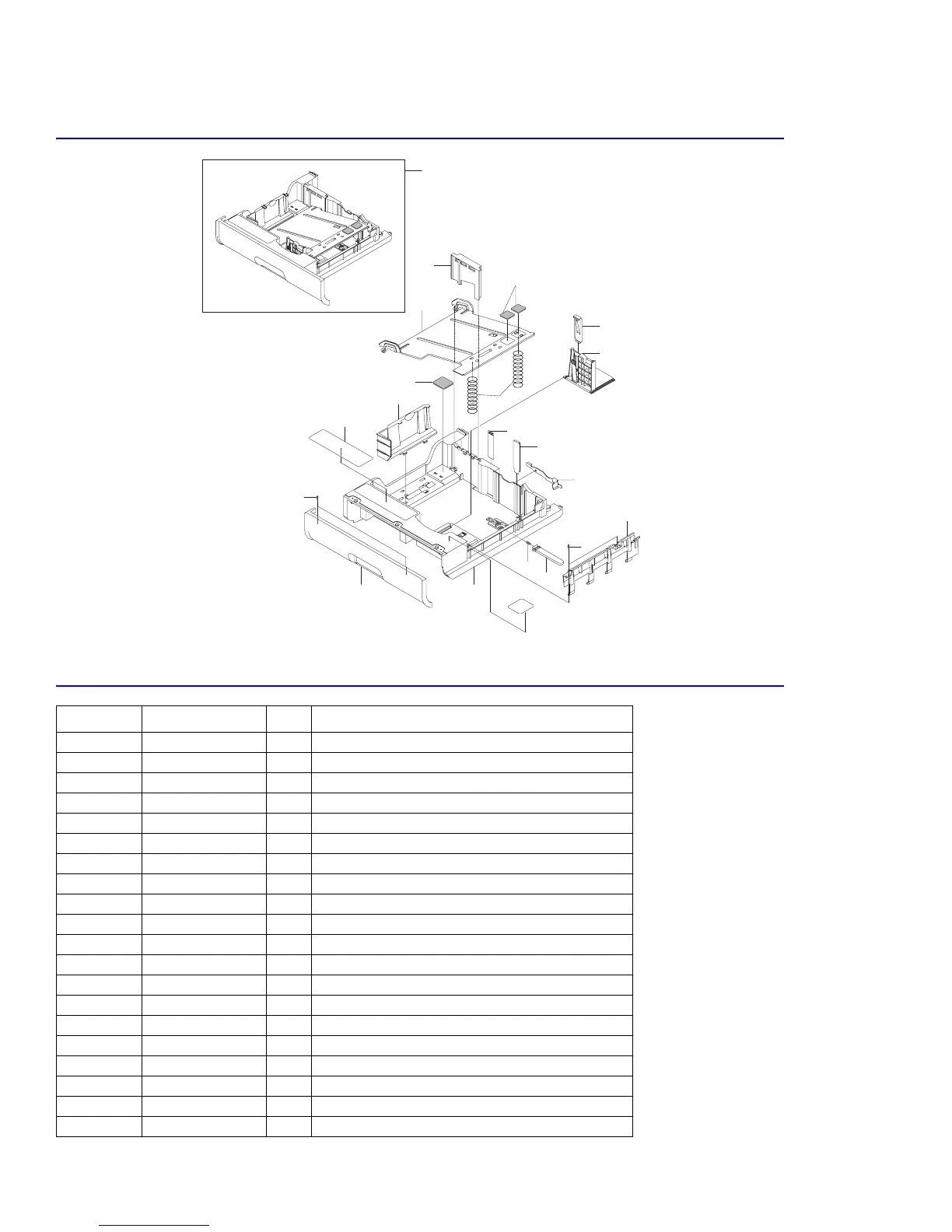

9.11 Paper Tray, Tray 2 (SCT)
Paper Tray, Tray 2 (SCF) Assembly 9.11
No. Part number Qty Part Name and (part description)
0 116-1940-00 1 Paper Tray, Tray 2 (SCT)
1 1 Frame Cassette
2 1 Cover Cassette
3 1 Guide Side CST
4 1 Guide Front CST
5 1 Guide Rear
6 1 Plate K/UP
7 1 Finger
8 1 Spring Plate Guide
9 1 Guide Plate Paper
10 4 Spring CS
11 1 Spring Locker Plate
12 1 Locker Plate
14 1 Side Guide
15 2RPR Pad CST
16 1 Label(P) Instruction
17 1 Label(R)-Height CST
18 1 Label(P)-LTR/A4
19 1 Label(P)-Load CST
S8 4 Screw_Taptite
14
15
8
10
0
3
17
18
9
7
11
4
6
12
12
S8
S8
16
5

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
