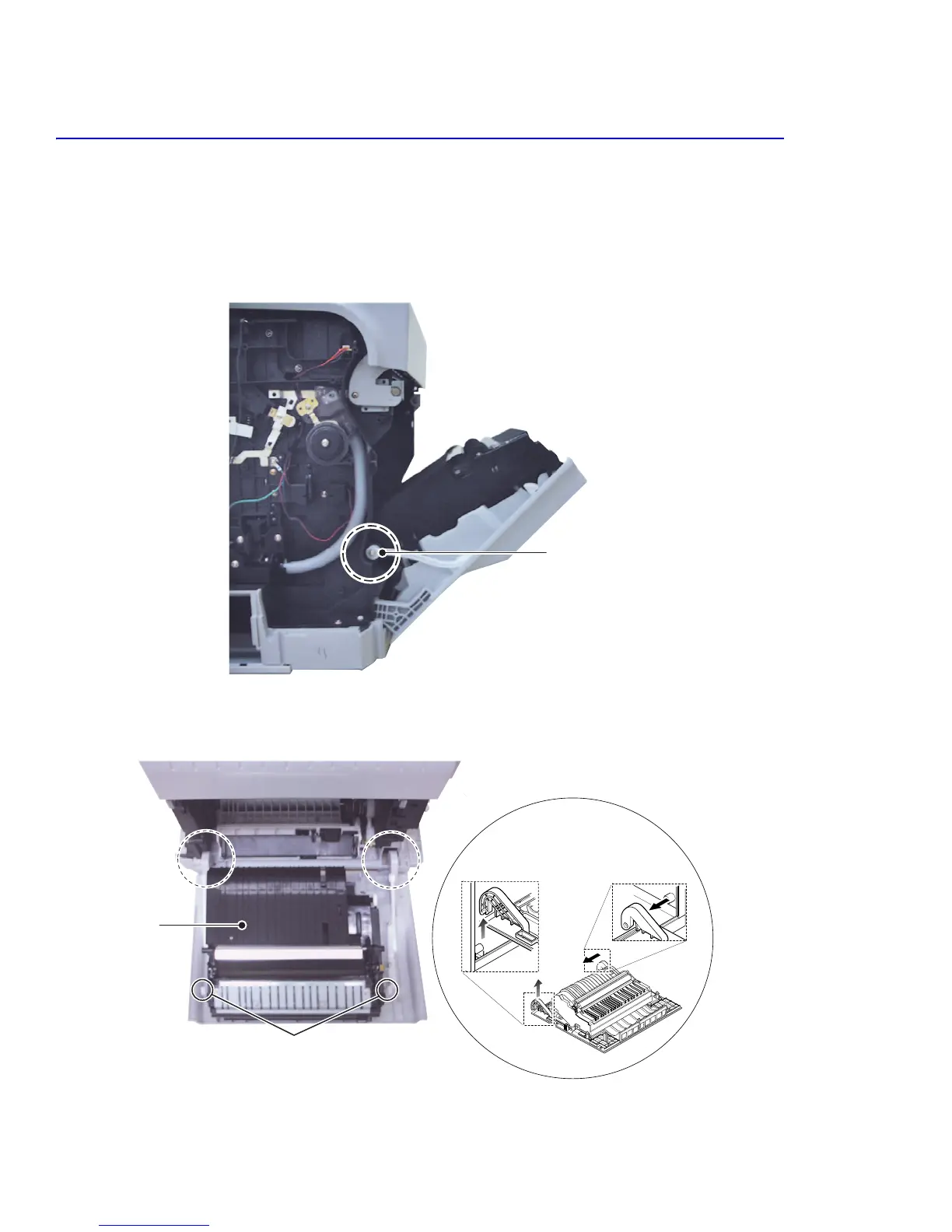

6.4.4a Duplex Cover - Door C (PL 9.6.0)
1. Remove the Front and Rear Covers (6.4.3)
2. Open Door C.
3. Remove the top 2 hinge screws (3*10 silver) on either side of each hinge rail.
4. Disconnect the links from the door.
5. Holding the door at a 90
o
angle, snap the front hinge out. Slide the door towards the front of the printer and
remove it.
Screw
Duplex
Assembly
A
A
B
B
Screws
