Xerox Phaser 6100

Summary of Product
Service Manual 4-1

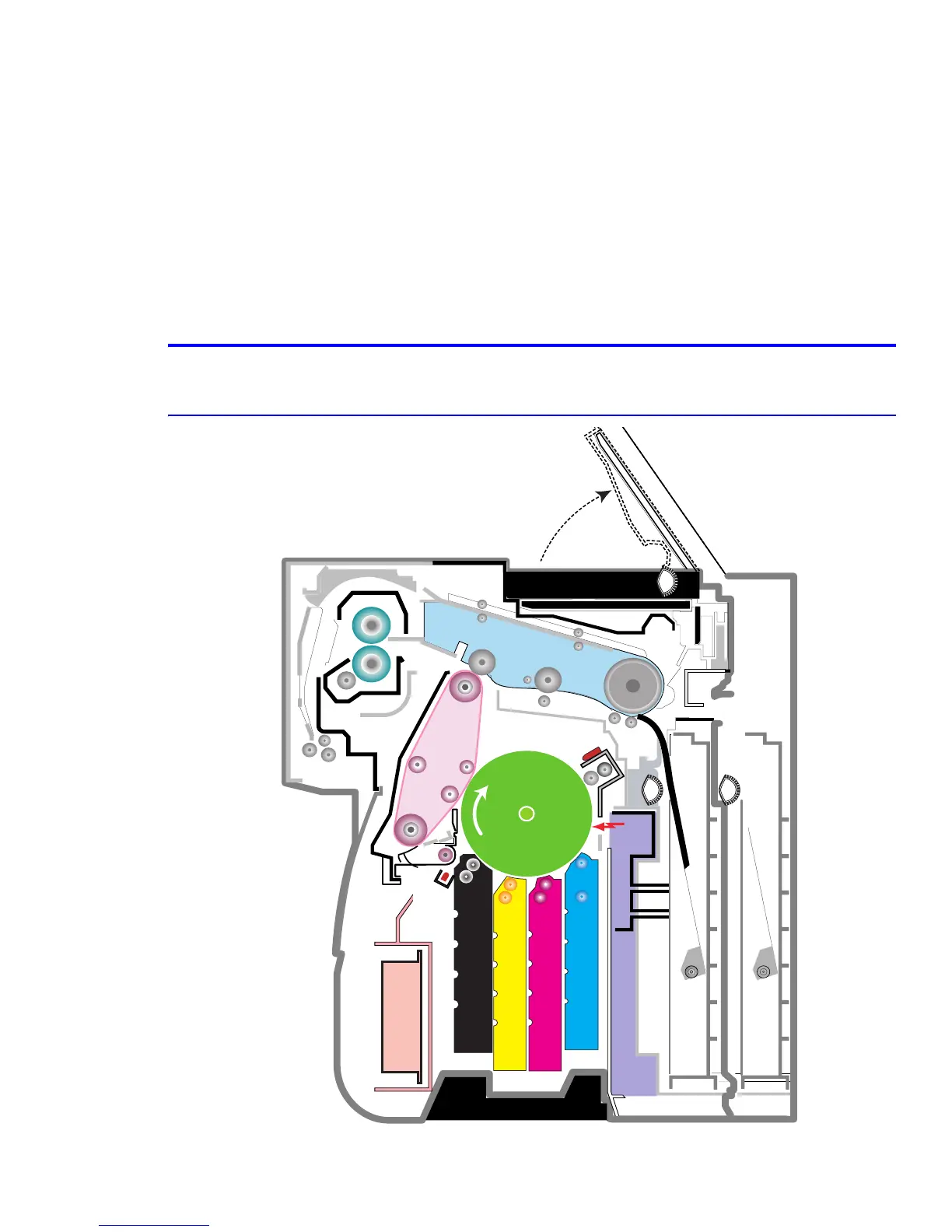

4.1 System Structure
4.1.1 Major Assemblies of the Printer
4
Product Summary
HVPS
Eraser Lamp
Eraser Lamp
HVPS
DEV. - Black
DEV. - Yellow
Pick-up
Roller
DEV. - Magenta
DEV. - Cyan
CASSETTE
LSU
Feeder
DUPLEX
Fuser Unit
EXIT Unit
MPF
MPT
DEV. - Black
DEV. - Yellow
Pick-up
Roller
DEV. - Magenta
DEV. - Cyan
SCF
Tray 2 Tray 1
LSU
Deve Cover
Deve Cover
Transfer
Belt
Transfer
Belt
Feeder
DUPLEX
Transfer
Roller
Transfer
Roller
Imaging Unit
w/OPC Drum
Imaging Unit
w/OPC Drum
Fuser Unit
EXIT Unit
PTL
PTL
SCF Path
Pick-up
Roller
Pick-up
Roller
Pick-up
Roller
Pick-up
Roller
