Disassembly
Service Manual 6-21
6.4.7a Low-Voltage Power Supply - LVPS/SMPS (PL 9.1.19)
1. Remove the rear cover (6.4.3)

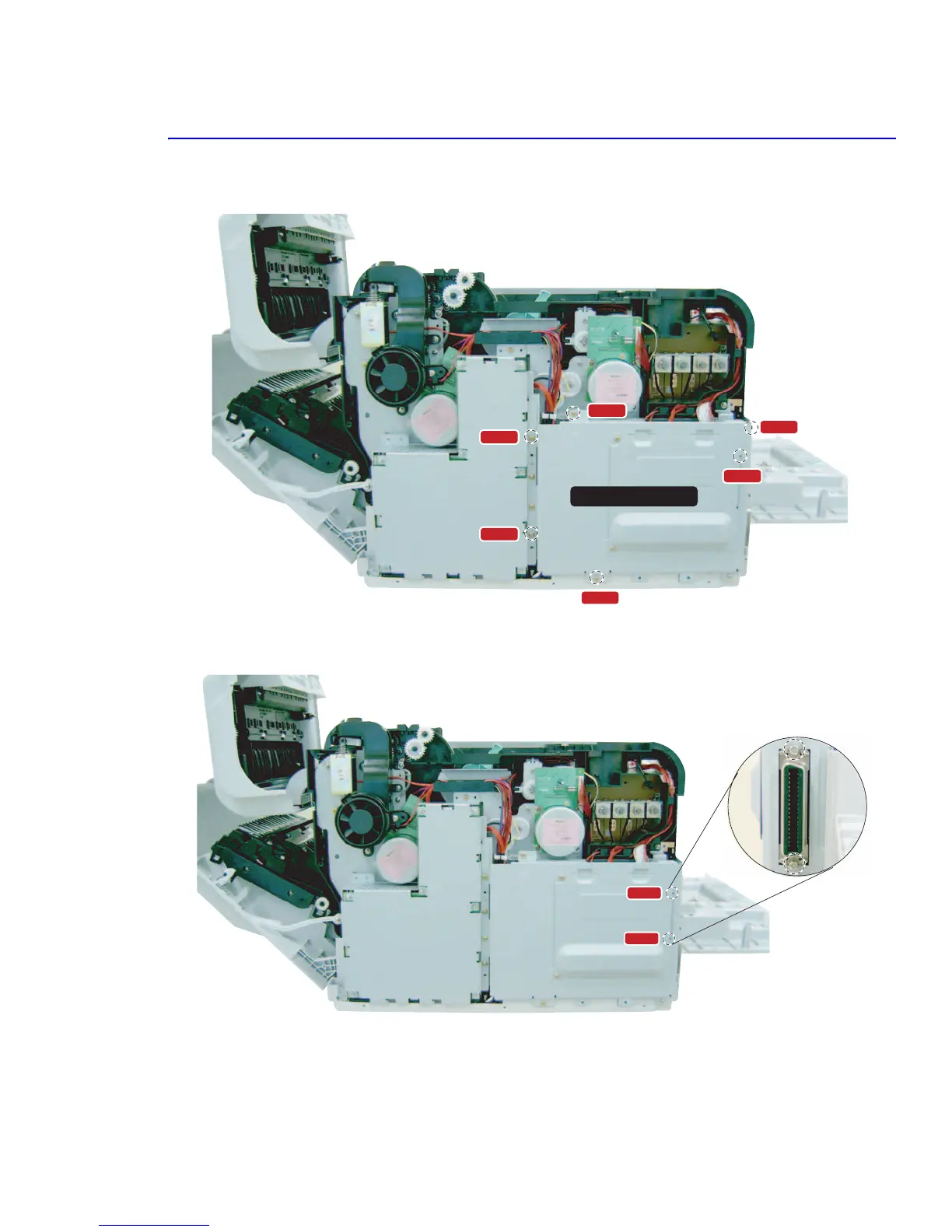

2. Remove 5 screws (3-6 machine, gold) from the main board shield.
3. Remove 2 screws (3-10 machine, silver) connected to the parallel port and then remove the main board shield.
Main PBA Bracket
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
