Xerox Phaser 6100 Service Manual

Disassembly
6-22

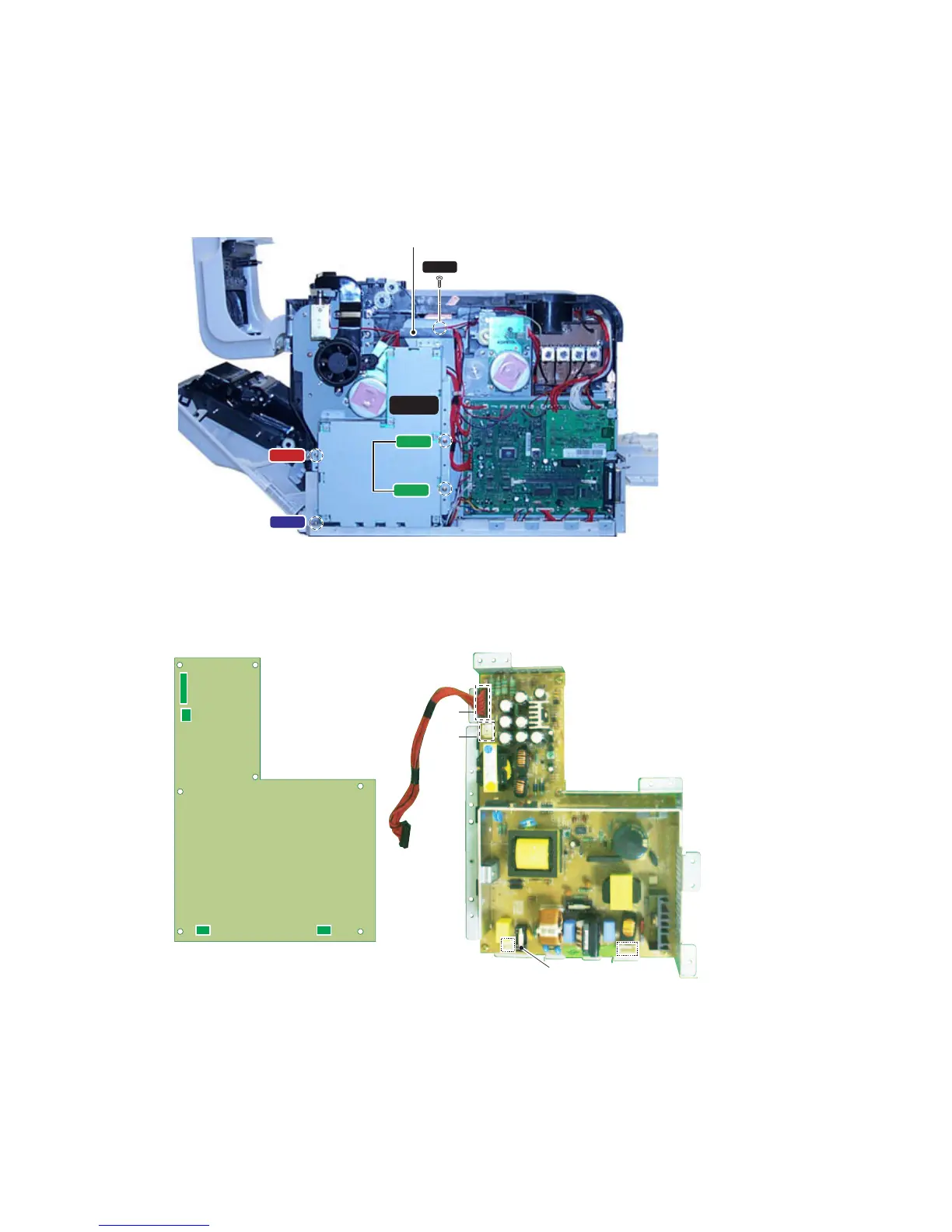

4. Remove 5 screws from the LVPS.
■ A: Right side 2EA (3 * 6 Gold)
■ B: Left side 1EA (3 * 10 Silver)
■ C: Bottom 1EA (4 * 10 Silver)
5. Remove 2 screws (3*10 silver) from the harness guide and free the harness, then remove the guide.
6. Press the top of the LVPS cage towards door C and tilt it out to access and disconnect the 4 harnesses from the
LVPS.
7. Remove the LVPS.
Screw
Screw
Screw
LVPS
C
A
Screw
BB
C
A
Harness Guide
Screw
CON4
CON3
CON4
CON4
CON3
CON3
CON4
CON3
CON1
CON1
Fuse
CON2
CON2

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
