Xerox Phaser 6100 Service Manual

Summary of Product
Service Manual 4-7

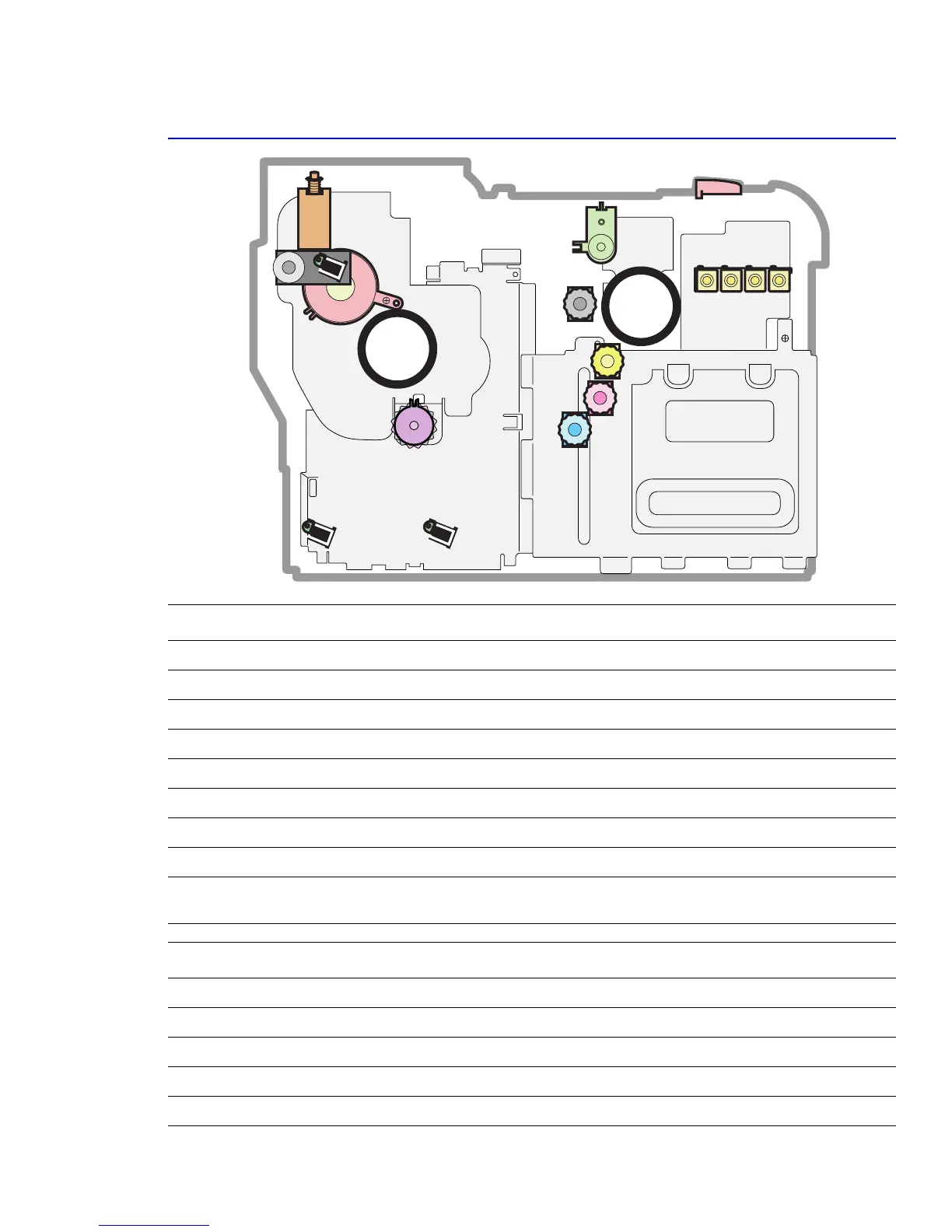

4.1.3 Clutch and Solenoid Layout
No. Solenoid Name Description
1. Y DEVE solenoid Controls high voltage to the yellow toner cartridge.
2. M DEVE solenoid Controls high voltage to the magenta toner cartridge.
3. C DEVE solenoid Controls high voltage to the cyan toner cartridge.
4. K DEVE solenoid Controls high voltage to the black toner cartridge.
5. Pickup solenoid Controls drive to the pickup roller.
6. MPT pick solenoid Controls drive to the MPT pick roller.
7. Duplex solenoid Reverses rotation of the main motor during duplexing
8. Transfer belt home solenoid Engages and disengages the transfer roller from the transfer belt.
9. Transfer belt cleaning solenoid
(cam)
Operates the transfer belt cleaning blade.
No. Clutch Name Description
1. Y DEVE clutch Controls the yellow toner cartridge drive.
2. M DEVE clutch Controls the magenta toner cartridge drive.
3. C DEVE clutch Controls the cyan toner cartridge drive.
4. K DEVE clutch Controls the black toner cartridge drive.
5. Feed Clutch Controls registration of the paper pick.
Cartridge Solenoid(C, M, Y, K)
Duplex Solenoid
Transfer Belt
Cleaning
Solenoid
Black Deve
Clutch
Black Deve
Clutch
Yellow Deve Clutch
Magenta Deve Clutch
Cyan Deve Clutch
Cartridge Solenoid(C, K, Y, M)
Yellow Deve Clutch
Magenta Deve Clutch
Cyan Deve Clutch
Transfer Belt
Home Solenoid
Transfer Belt
Home Solenoid
MP Pick_up
Solenoid
MPT Pick_up
Solenoid
Feed Regi
Clutch
Pick_up Solenoid

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
