Xerox Phaser 6100 Service Manual

Disassembly
Service Manual 6-53

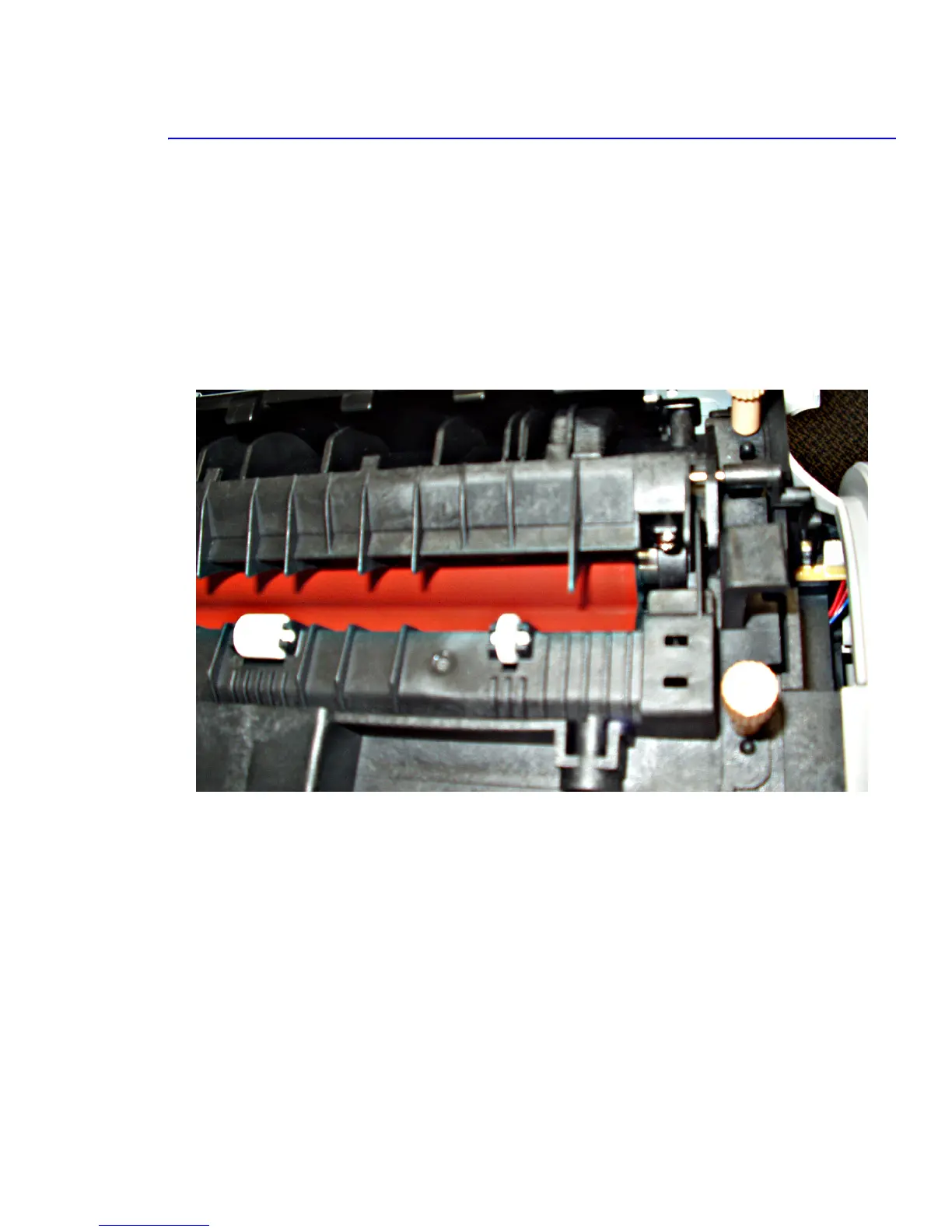

6.4.28 Fuser Exit Sensor (PL 9.14.5)
1. Remove the Front Cover and Top Cover. (6.4.1)
2. Remove the Rear Cover. (6.4.3)
3. Remove the Duplex Cover (Door C). (6.4.4)
4. Remove the Fuser and Fuser Cover Base. (6.4.5 and 6.4.5.1)
5. Remove the LVPS and LVPS Cover. (6.4.7)
6. Remove the Main Drive Assembly. (6.4.9)
7. Disconnect CN19 wiring harness from the main board.
8. Remove the 1 screw securing the sensor to the front frame.
9. Feed the harness through the channel and remove the sensor from the front frame.
>> On re-assembly:
Caution
Be careful not to pinch or damage the wiring when reinstalling the main drive assembly.

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
