Xerox Phaser 6100 Service Manual

Disassembly
Service Manual 6-27

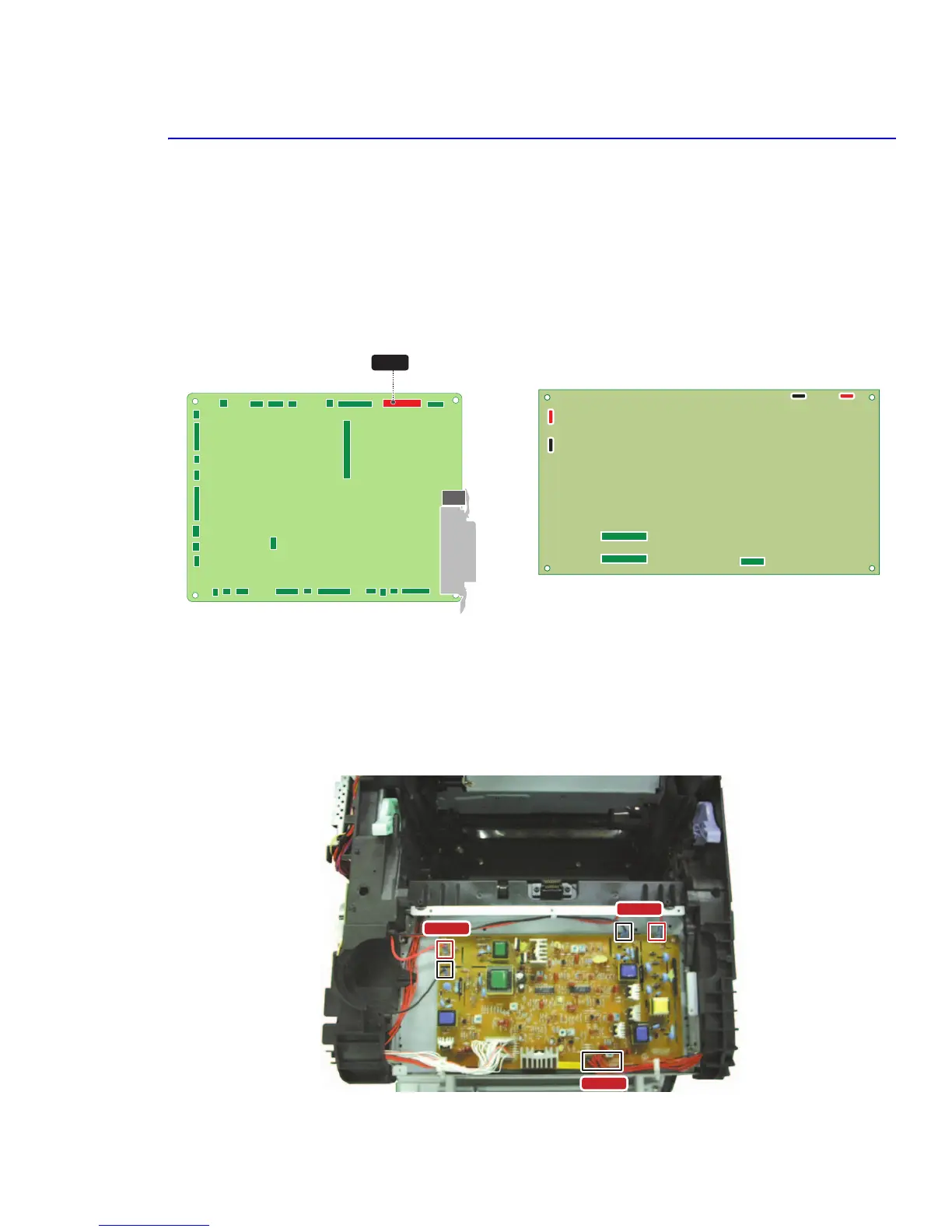

6.4.10 HVPS (High Voltage Power Supply) (PL 9.1.20)
Warning
High Voltage! Be sure to follow the steps outlined in Section 1.5.4 when servicing this assembly
1. Remove the front cover and top cover. (6.4.1)
2. Remove the rear cover. (6.4.3)
3. Remove the main board shield. (6.4.7b)
4. Remove and free the CN7 harness from the main board.
5. Remove 1 harness and 4 high-voltage harnesses from the HVPS.
Caution
Do not swap the HVPS wires, they are the same color, size, and shape. Note the wire connectors
and connection points for T1 and T2.
6. Free the white wiring harness through the channel in the chassis.
SUPPLY
T1
T2
CHARGER
CN1(to Deve Driver)
CN2(to Deve OEM)
USB
Parallel Port
CN7
HVPS
Harness
Harness
Harness
RedRed
RedRedBlackBlack
BlackBlack

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
