Xerox Phaser 6100 Service Manual

Disassembly
Service Manual 6-41

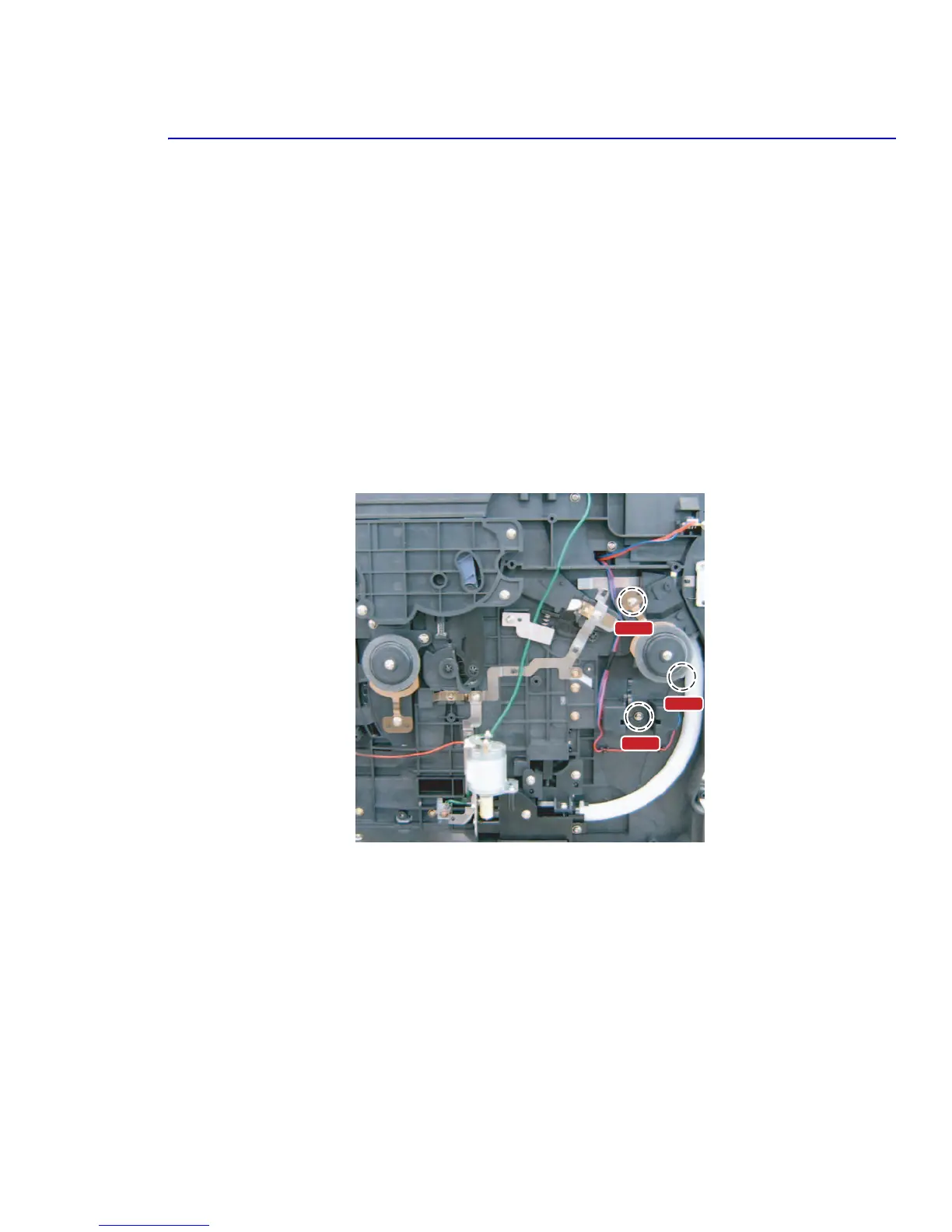

6.4.18a Waste Toner Cartridge Full Sensor (PL 9.14.1)
1. Remove the Front Cover and the Top Cover. (6.4.1)
2. Remove the Rear Cover. (6.4.3)
3. Remove the Fuser and Fuser Cover Base. (6.4.5 and 6.4.5.1)
4. Remove the LVPS. (6.4.7)
5. Remove the Main Drive Assembly. (6.4.9)
6. Disconnect the harness CN17 from the main board.
7. Remove 2 screws (3*10 silver) from the waste toner assembly and rotate the waste auger tube away from the
printer (towards you), but do not disconnect it.
Caution
Be careful not to spill waste toner. Pay attention to the position of the foam gasket, as it can be
easily damaged.
8. Route the wiring harness through the channel to free it from the chassis.
9. Remove 1 screw (3*10 Silver) from the toner waste cartridge full sensor.
Note
Note the orientation of the sensor for reassembly.
10. Release the sensor assembly from the tabs to remove the sensor.
>> On re-assembly:
1. When re-securing the waste auger, ensure proper alignment of the foam gasket.
Caution
Be careful no to pinch or damage the wiring when reinstalling the main drive assembly.
Screw
Screw
Screw

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
