6.4.1 Top Cover (PL 9.1.17) and Front Cover (PL 9.1.15)

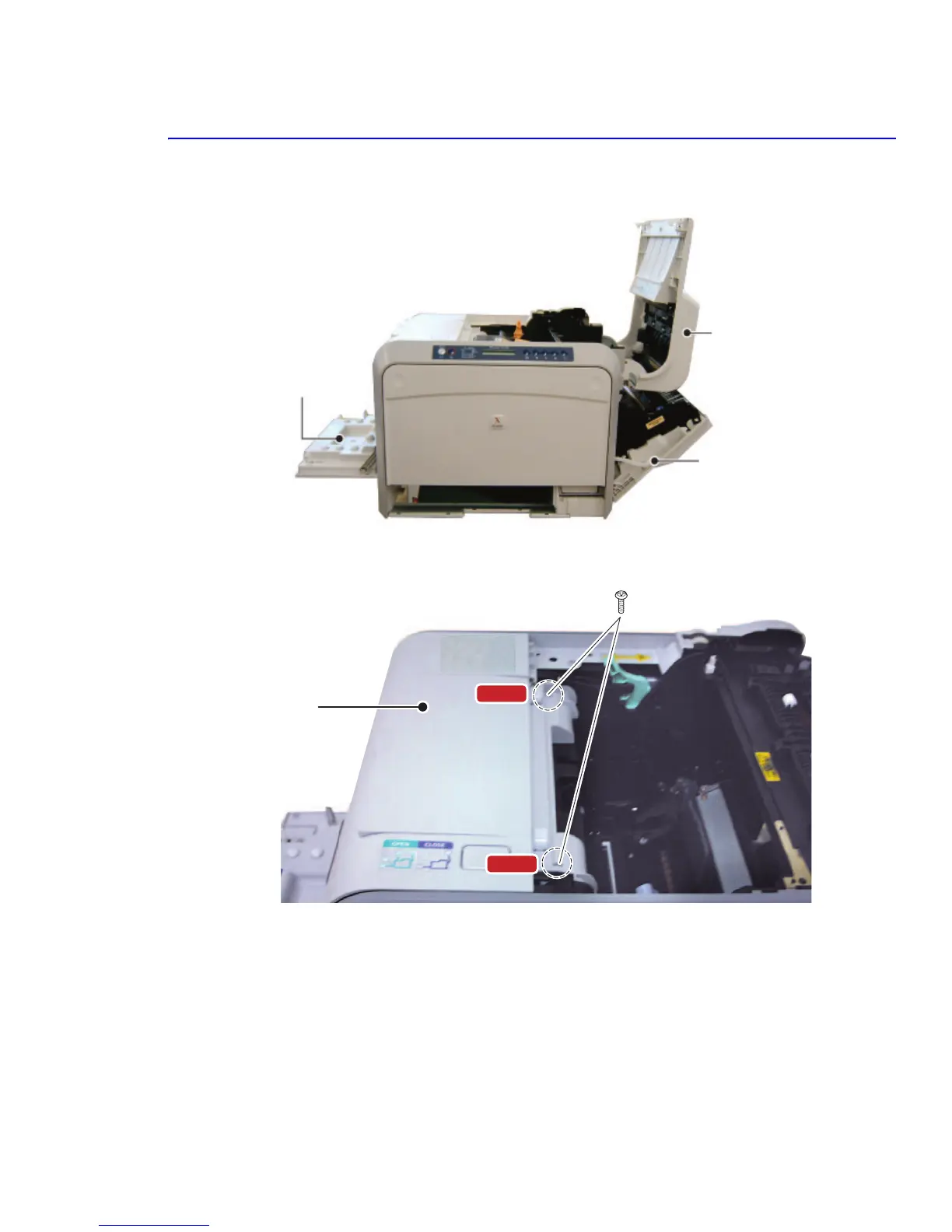

1. Remove Tray 1.
2. Open DEVE Cover (Door A), Exit Cover (Door B), and Duplex (Door C).
3. Remove 2 screws (3-10 silver) from the top cover.
DEVE Cover
Door A
Exit Cover
Door B
Duplex Cover
Door C
Top Cover
Screw
Screw
