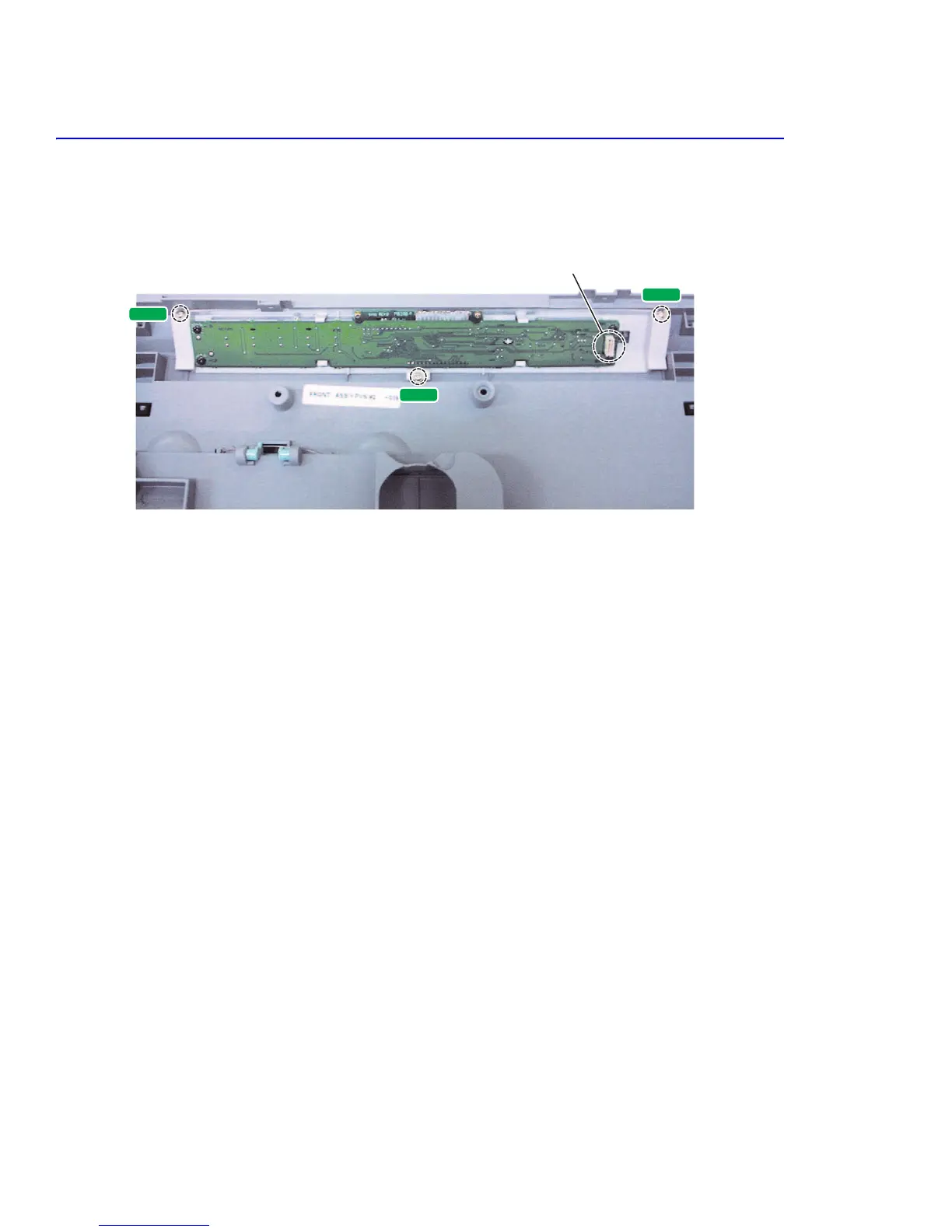

6.4.2 Control Panel (PL 9.2.19)
1. Remove the front cover (6.4.1).
2. Remove 3 ((A) 3-8 gold).
3. Disconnect the wiring harness connector.
4. Rotate the control panel to release it from the tabs and remove the control panel from the printer.
Screw
Screw
Screw
A
A
A
A
A
A
Connector
