Xerox Phaser 6100 Service Manual

Parts List
9-26

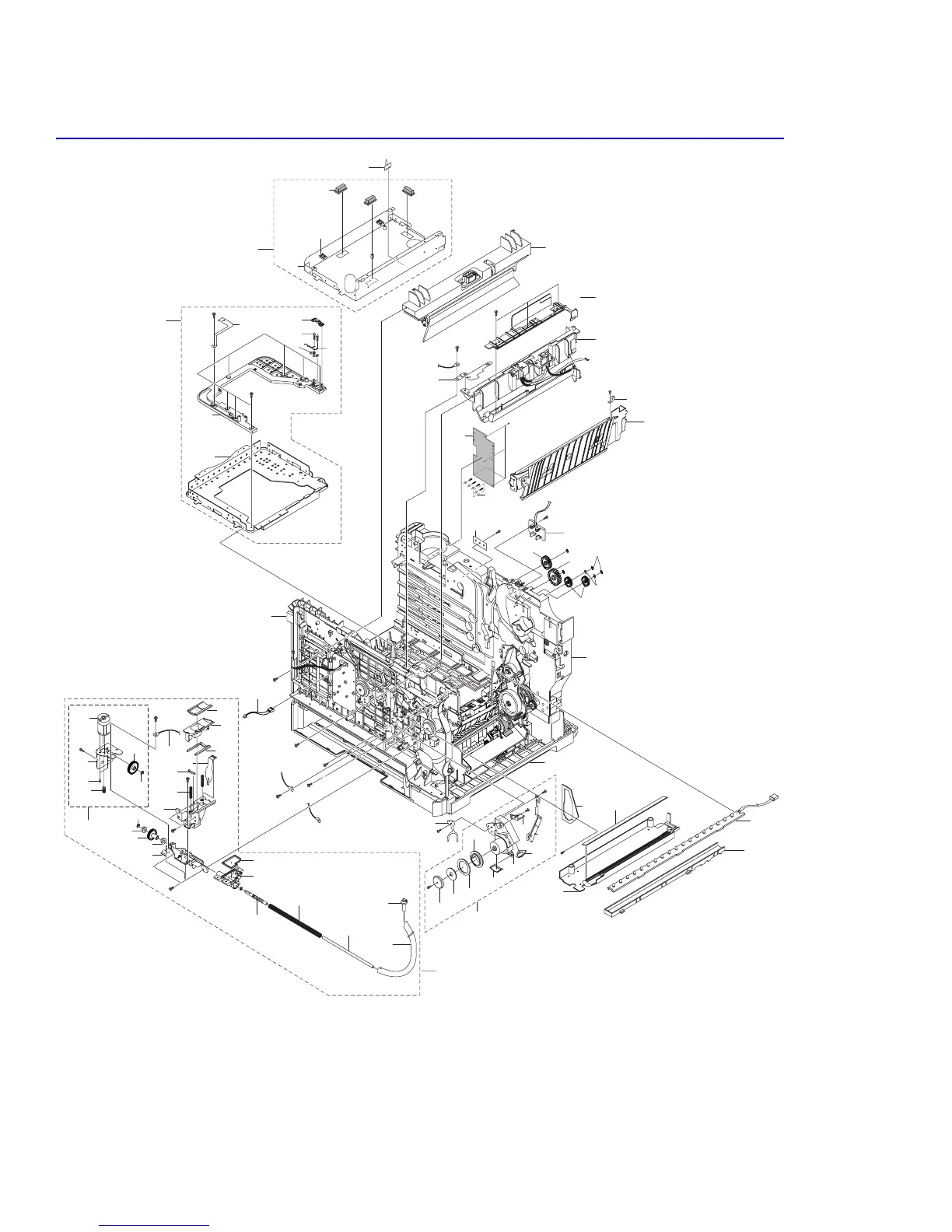

9.13 Main Frame
5
15
3
8
29
23
7
6
30
4
26
14
18
27
25
28
5-2
5-3
5-1
3-3
3-6
3-7
3-2
3-1
11
10
24
9
12
2
31
3-5
3-4
1
1-18
1-3
1-17
1-10
1-14
1-15
1-20
1-11
1-4
1-8
1-3
1-5
1-13
1-19
1-16
1-12
1-7
1-6
1-9
1-1-2
1-1-3
S1
1-1-4
1-1-1
1-1
1-1-5
1-2
13
17-3
17-7
17-8
17-9
17-4
17-1
17-2
17-5
17
16
17-6
19
20
32
