Xerox Phaser 6100

Parts List
Service Manual 9-41

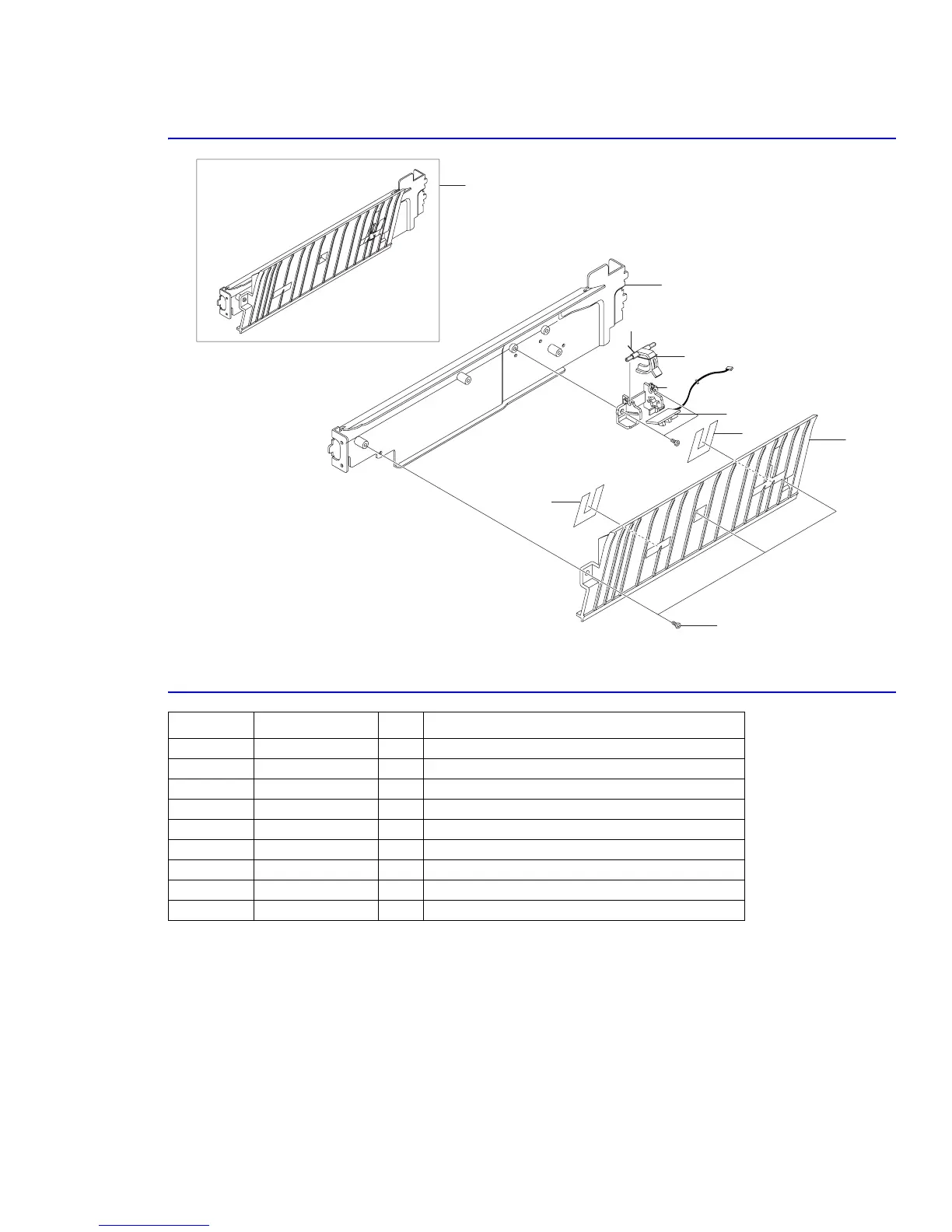

9.20 Paper Guide Assembly
Paper Guide Assembly 9.20
No. Part number Qty Part Name and (part description)
0 1 Paper Guide
1 116-1901-00 1 Feed Sensor Cover
2 116-1902-00 1 Feed Sensor
3 116-1903-00 1 Feed Sensor Actuator
4 1 Paper Guide Bracket
5 116-1952-00 2 Sheet - Paper Guide
6 116-1953-00 1 Guide Paper Path
7 1 Actuator Spring
S9 P/O Screw Kit 5 Screw-Taptite
