Disassembly
6-48

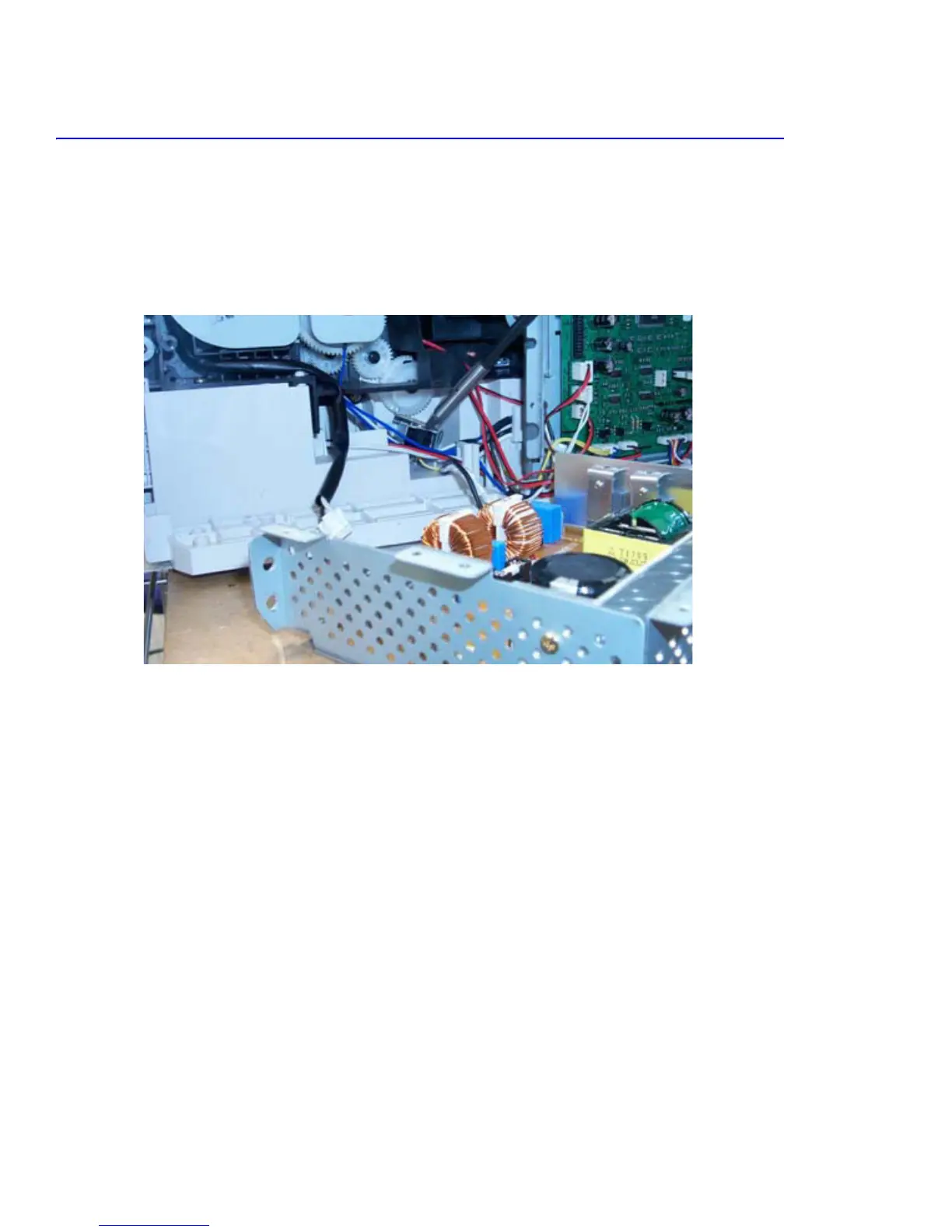

6.4.23 Paper Pickup Solenoid (PL 9.16.22)
1. Remove all consumables (Toner cartridges, Transfer unit, and Imaging Unit (protect from light)) (6.3.3)
2. Remove the Top Cover. (6.4.1)
3. Remove the Rear Cover. (6.4.3)
4. Remove the LVPS and LVPS Cover. (6.4.7a)
5. Remove the LVPS inner cover by lifting it out of the printer, it is not held by screws.
6. Remove the 1 screw securing the solenoid to the base.
7. Disconnect the harness (CN25) from the main board and remove the solenoid.
To Next Page
