Xerox Phaser 6100 Service Manual

Parts List
9-10
9.5 Exit Assembly

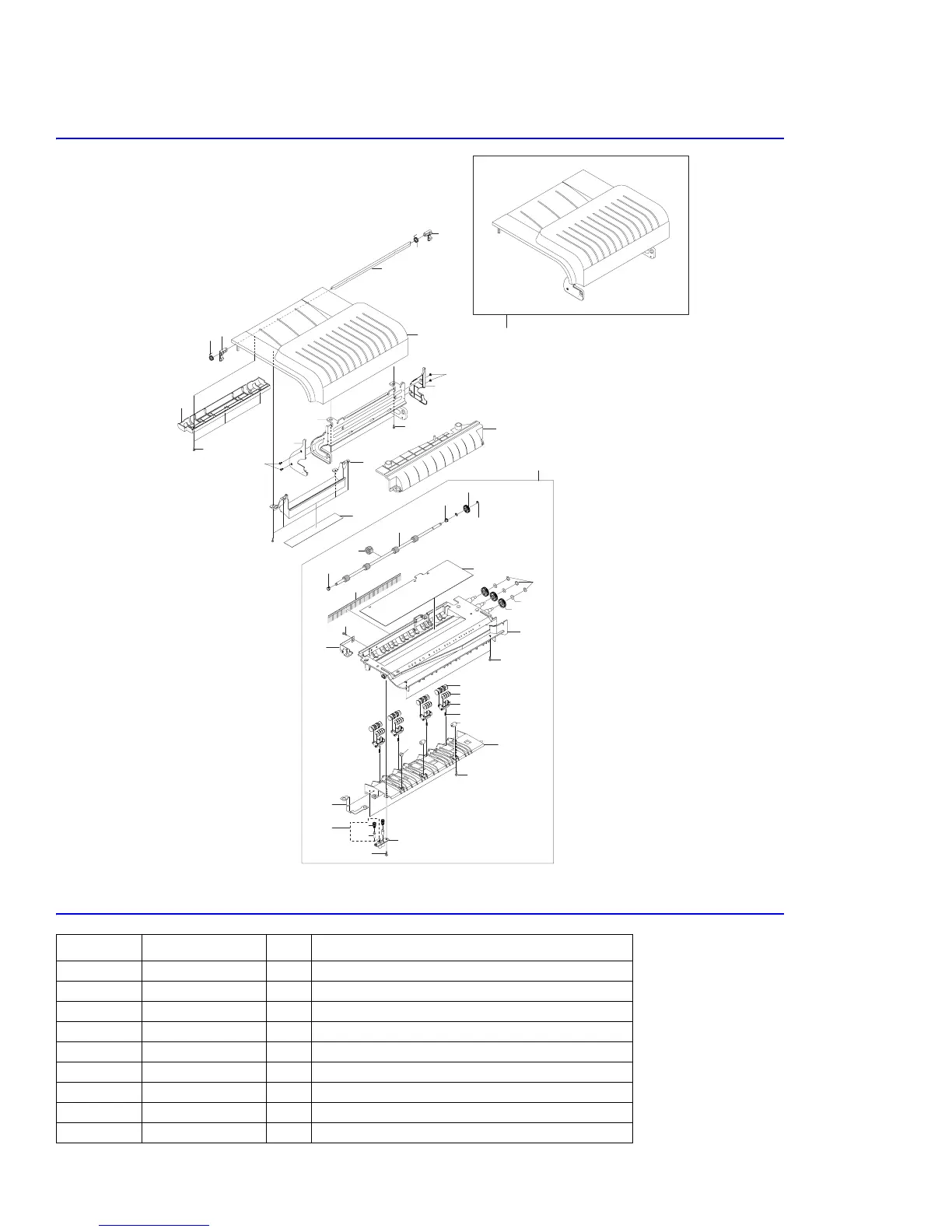

Exit Assembly 9.5
No. Part number Qty Part Name and (part description)
0 116-1853-00 1 Exit ASM
1 1Cover Exit
2 1 C/Exit Lock Cover
3 1 Cover Exit Bar
4 1 Cover Dup Locker F
5 1 Cover Dup Locker R
6 2 Spring TS
7 1 Cover Exit Guide
8 1 Cover Exit F Cap
0
5
6
2
4
6
1
7
8
10
9
13
12
3
S8
S19
S8
11-10
11-S8
11
11-8
11-9
11-21
11-1
11-4
11-S8
S8
11-13
11-14
11-15
11-16
11-19
11-20
11-S8
11-20-1
11-20-2
11-18
11-12
11-11
11-17
11-22
11-5
11-2
11-2-1
11-3
11-7
11-6
S19
S14

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
