Xerox Phaser 6100 Service Manual

Parts List
Service Manual 9-21
9.10 Paper Tray, Tray 1 (FCT)

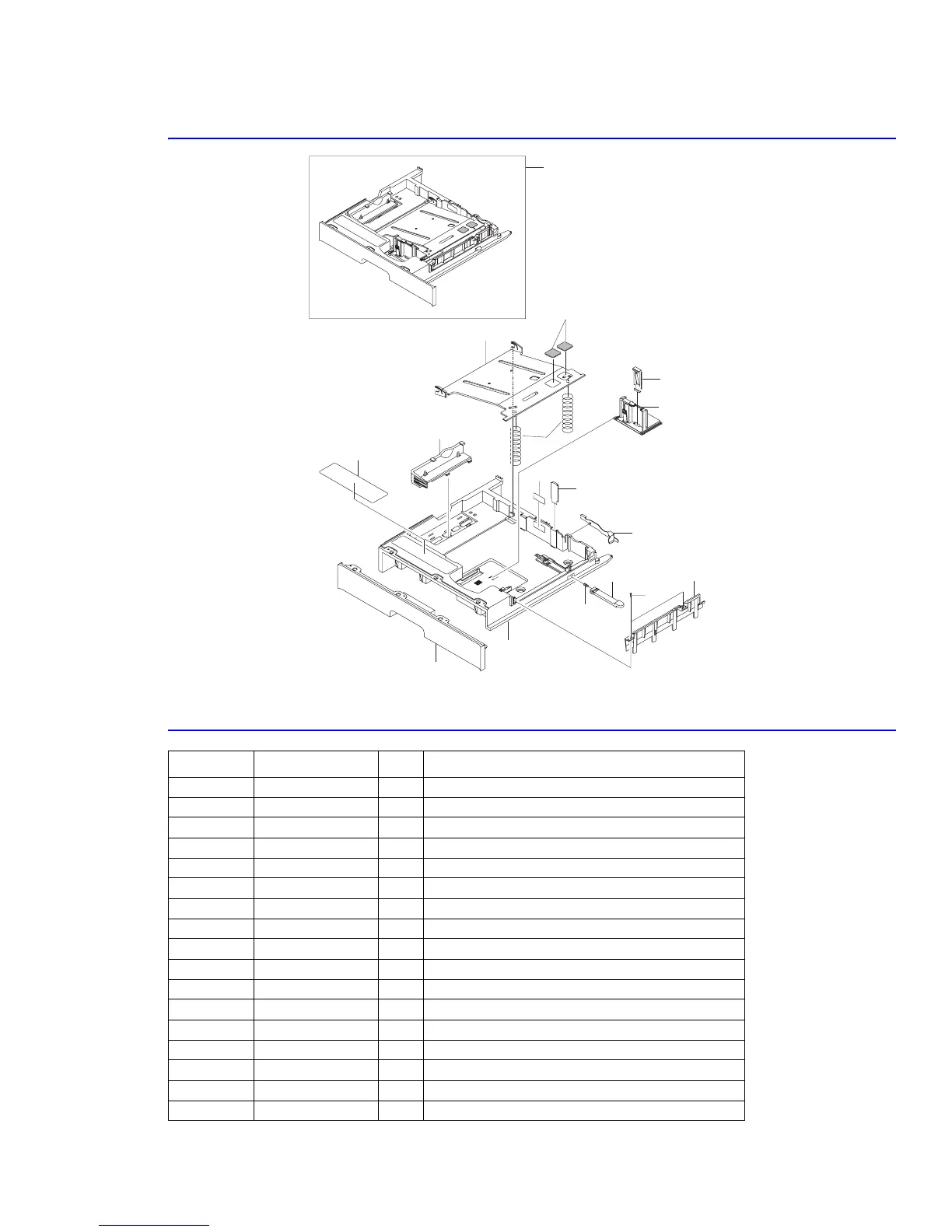

Paper Tray, Tray 1 (FCT) Assembly 9.10
No. Part number Qty Part Name and (part description)
0 116-1854-00 1 Paper Tray, Tray 1 (FCT)
1 1 Frame Cassette
2 1 Cover Cassette
3 1 Guide Side CST
4 1 Guide Front CST
5 1 Guide Rear
6 1 Plate K/UP
7 1 Finger
8 1 Spring Plate Guide
9 1 Guide Plate Paper
10 2Spring
11 1 Spring Locker
12 1 Locker Plate
13 2RPR Pad CST
14 1 Label(R)-Height Xerox
15 1 Label(P)-Instruction
S8 P/O Screw Kit 2 Screw_Taptite
8
0
3
15
9
7
4
1
2
12
S8
14
5
11
13
10
6

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
