Xerox Phaser 6100 Service Manual

Disassembly
6-18
6.3.5a Fuser (PL 9.1.9)
Warning
If the printer has been printing recently, the fuser will be hot. Open the exit cover and let the fuser
cool before removing it.
1. Open the DEVE cover (Door A).
Note
Before opening the exit cover, completely open the DEVE cover until it is at a 90
o
angle to the main
frame and the toner cartridges are ejected.
2. Open the exit cover (Door B).

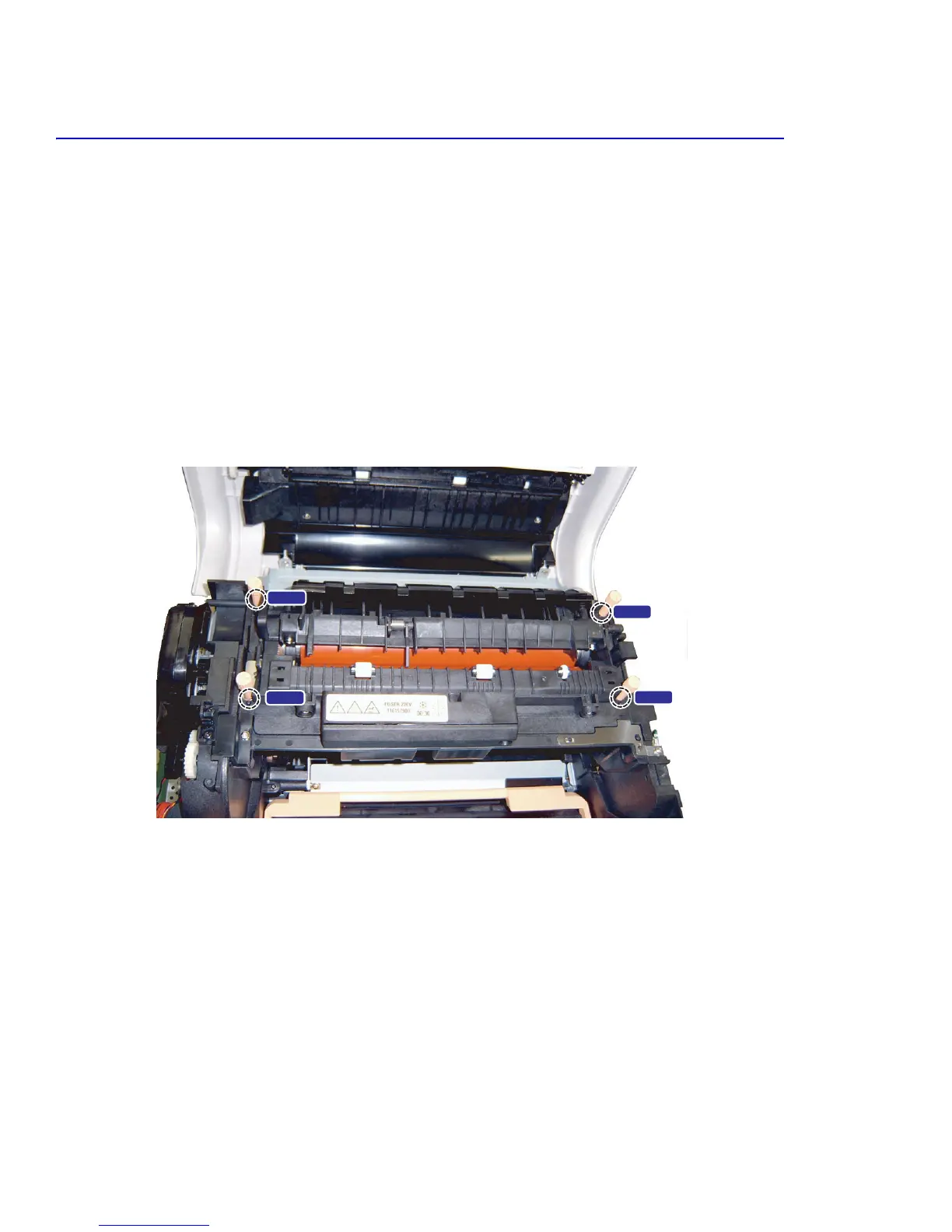

3. Remove the 4 thumbscrews.
4. Remove the fuser by holding both sides and pulling straight up and out of the priner.
Screw
Screw
Screw
Screw

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
