Xerox Phaser 6100 Service Manual

Parts List
Service Manual 9-15

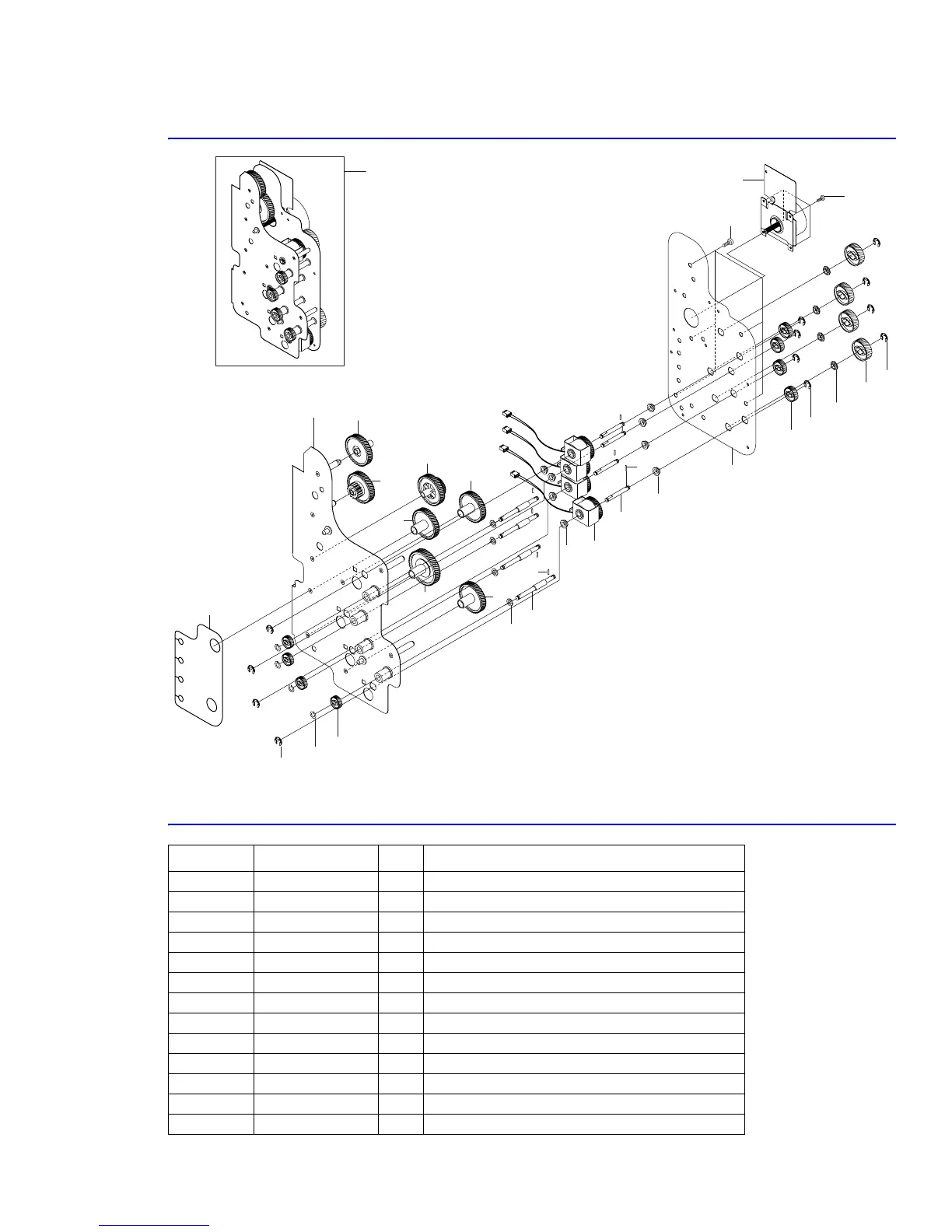

9.7 DEVE Drive Assembly
DEVE Drive Assembly 9.7
No. Part number Qty Part Name and (part description)
0 116-1851-00 1 DEVE Drive ASM
1 1 Bracket DEVE Front
2 4 Clutch Spring DEVE
3 4 Shaft DEVE Clutch
4 12 Bushing D6/L4
5 P/O Hardware Kit 12 E-ring
6 4 Shaft DEVE Drive
7 4 Washer plain
8 4 Gear DEVE DRive 2_Z20
9 1Gear Idle Z51
10 1 Harness Guide
11 1 Gear ITB Clean RDCN
12 1 Gear DEVE RDCN
9
11
13
13
18
1
5
8
17
10
12
13
0
7
14
6
3
2
4
4
15
19
5
4
20
5
16
S17
S11
18
