Xerox Phaser 6100 Service Manual

Specifications
Service Manual 3-5
3.6.1 Paper Size and Weights (cont’d)
3.6.2 Print Margins and Skew
3.6.3 PC (Host) Specifications
For reliable operation, the following PC configurations are recommended:
■ Windows 98, Me; Pentioum 166 MHz; 64 MB RAM
■ Windows NT 4.0, 2000, XP, Server 2003; Pentium 233 MHz; 128 MB RAM
■ Mac OS9; USB only; Power Macintosh G3, G4, iMac, PowerBook, iBook
■ All; 200 MB free hard drive space, CD-ROM Drive
Tray Support Media Types / Capacity Sizes Weight
Tray 1
Tray 2
Paper; 250 sheets (20 lb)
Paper; 500 sheets (20 lb)
A4, Letter 16 ~ 24 lb
60 ~ 90 gsm
MPT
Paper; 100 sheets
Envelope; 10
Label; 10 sheets
Transparency; 30 sheets
Card stock; N/A
A4, Letter, Legal, Folio, Executive,
A5, ISO and JISB5, A6, Statement,
Monarch, COM10, #9, C5, B5 Env.
and DL
16 ~ 43 lb
60 ~ 163 gsm
Auto Duplex
Paper A4, Letter, Folio, Legal 20 ~ 24 lb
75 ~ 90 gsm
Output Tray
Paper; 250 sheets (20 lb)
Print Margins
Side print position accuracy +/- 2.0 mm (+/- 0.08”)
Lead print position accuracy +/- 3.0 mm (+/- 0.12”)
Skew

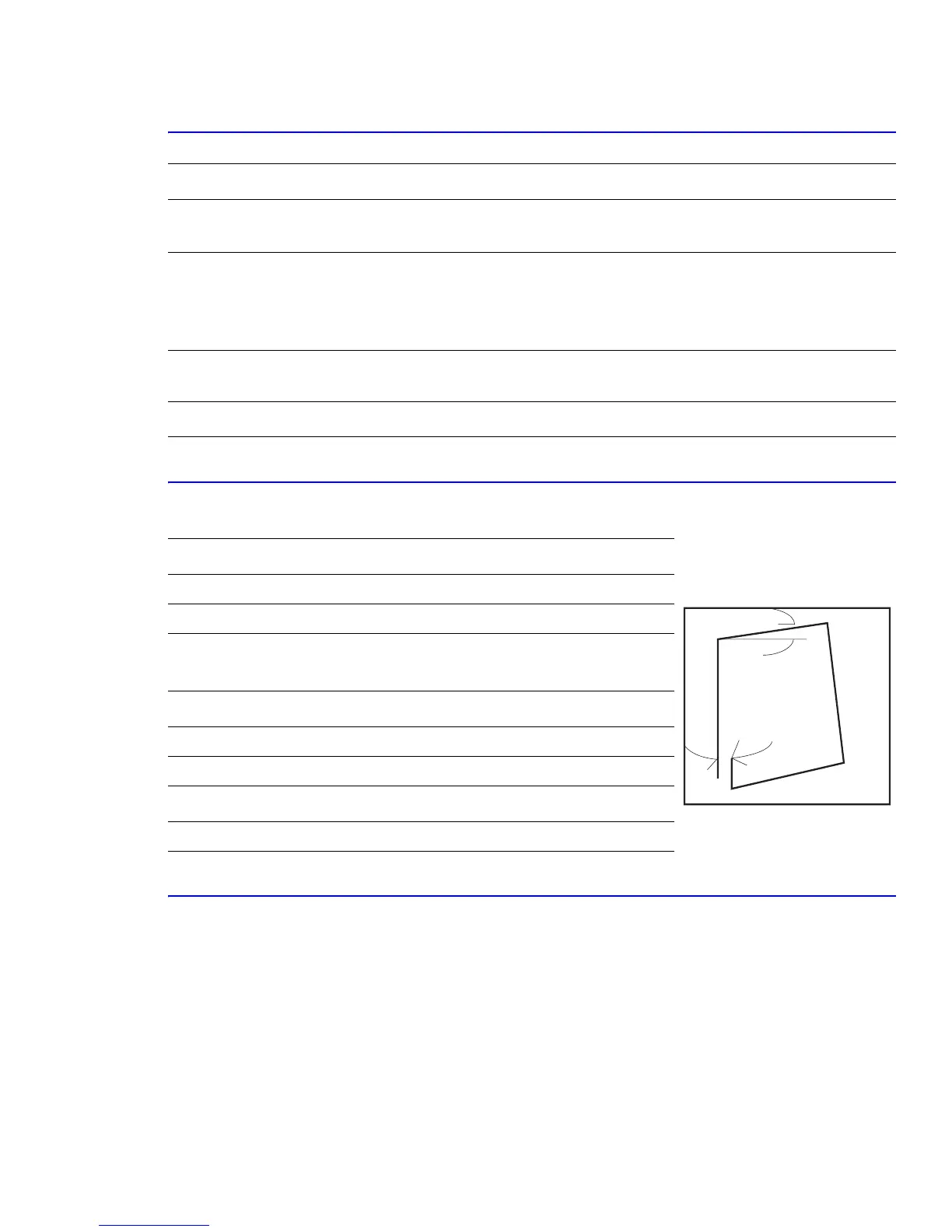

A rectangular box of 189 mm x 256 mm will be used to measure skew.
Simplex Tray 1, 2 MPT
A: Vertical < 2.0 mm (+/- 0.08”) < 2.0 mm (+/- 0.08”)
B: Horizontal < 1.5 mm (+/- 0.06”) < 1.5 mm (+/- 0.06”)
Duplex
1.5 times simplex printing
b
a

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
