Xerox Phaser 6100 Service Manual

Maintenance and Diagnostics
7-2

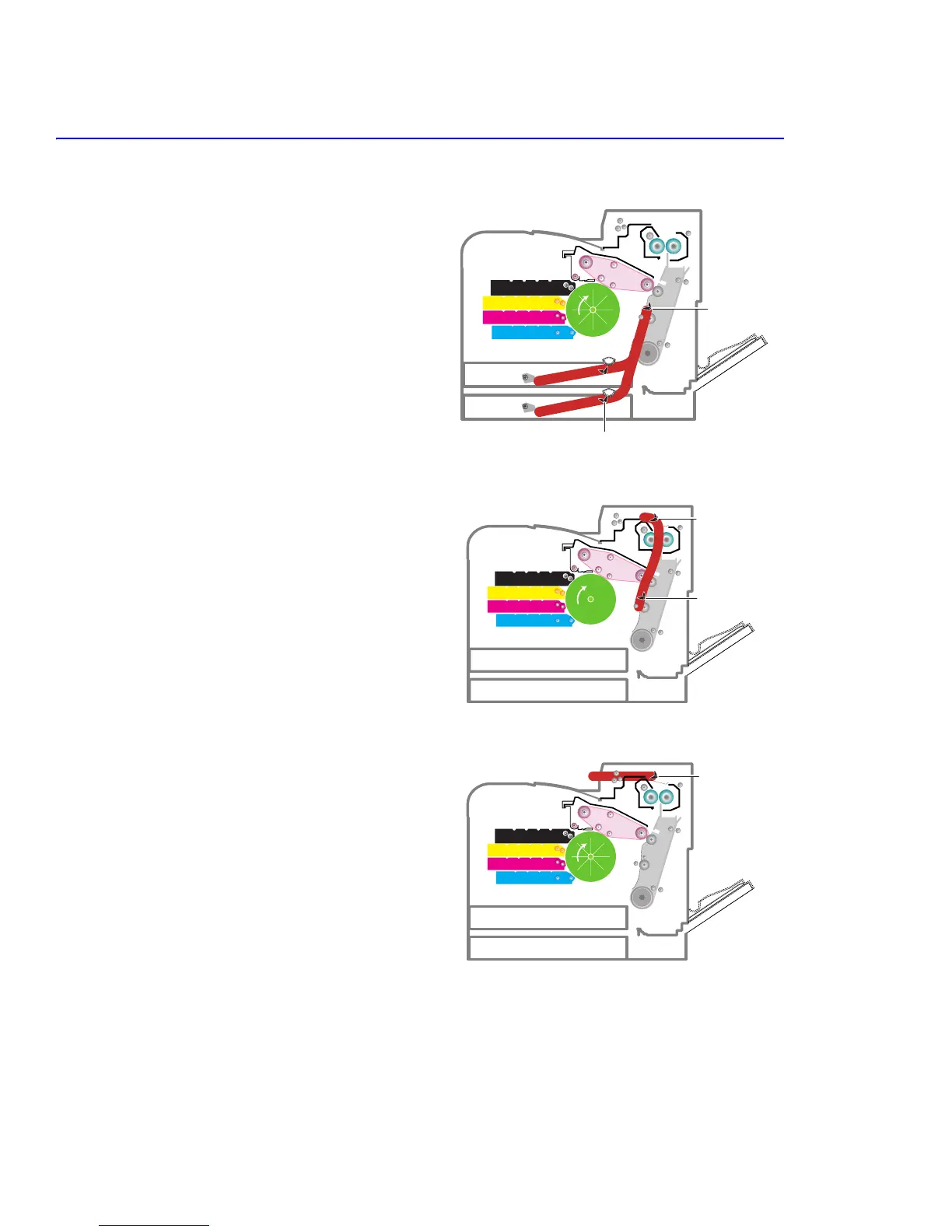

7.1.2 Jams
1) Jam at Tray 1/Tray 2 (Jam in feed area)
■ After paper pick, paper was not fed any further.
■ Paper did not reach the feed sensor in time.
■ Feed sensor is faulty and does not detect paper.
■ Tray 1 paper pick error: When paper is not picked
from Tray 1.
■ Tray 2 paper pick error: When paper is not picked
from Tray 2.
2) Jam at C (Jam inside printer)
■ After the leading edge of the paper has reached the
feed sensor, the feed sensor doesn’t turn off (fails
to detect the trailing edge of the paper) in time.
■ After the leading edge of the paper has
passed the feed sensor, it doesn’t reach the exit
sensor in time.
■ Exit sensor is faulty and does not detect paper.
3) Jam at B, C (Jam in exit area)
■ After the leading edge of the paper has passed the
exit sensor, the trailing edge of the paper has not
passed the exit sensor in time.
■ The paper drive motor has been driving for longer
than the time needed for the longest paper size and
the exit sensor has not turned off.
Pick-up
Roller
Feed Sensor
Paper Empty Sensor
Exit Sensor
Feed Sensor
Exit Sensor

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
