Xerox Phaser 6100

Parts List
9-38

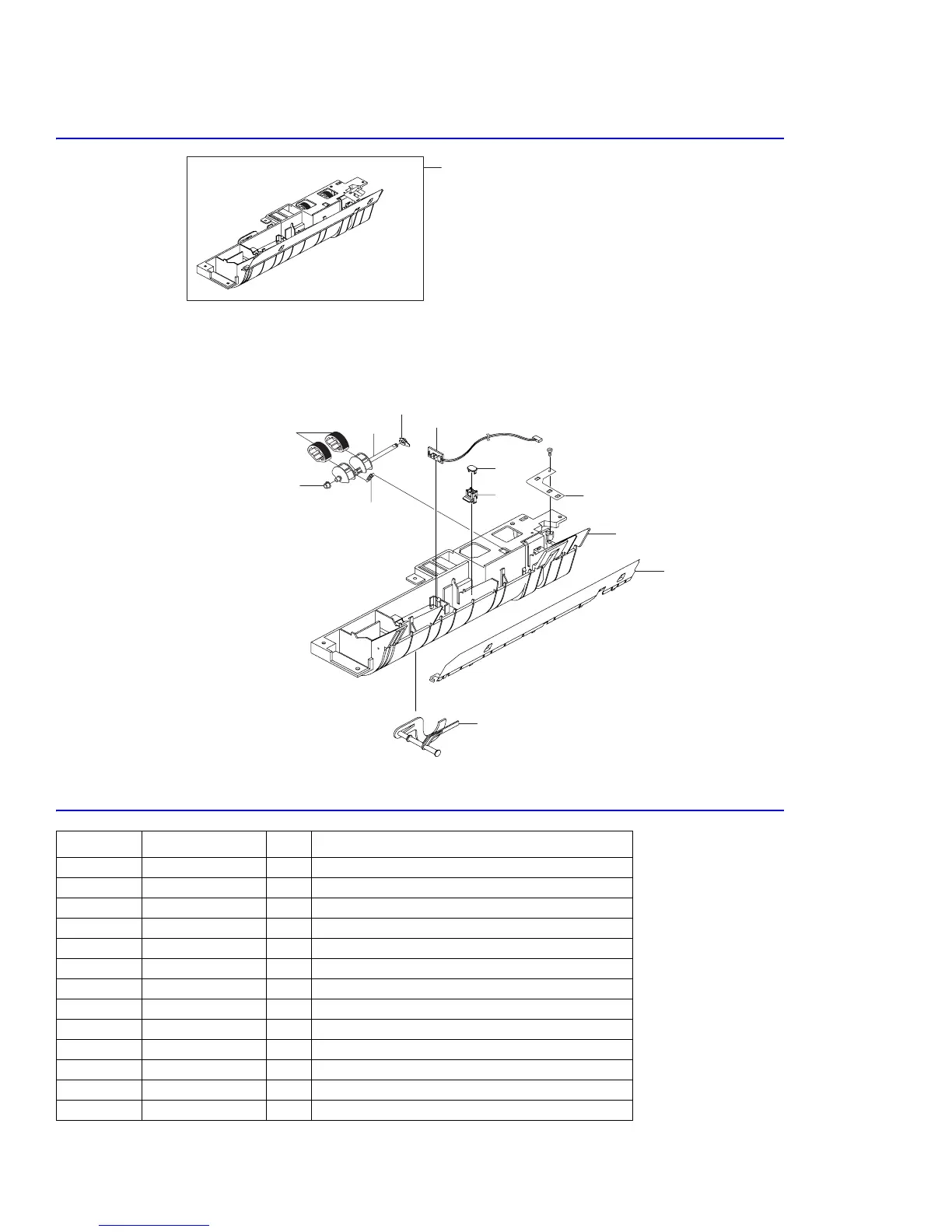

9.18 Pickup Assembly
Pickup Assembly 9.18
No. Part number Qty Part Name and (part description)
0 116-1890-00 1 Tray 1 Pickup ASM
1 1 Pickup Spring
2 1 Ground Feed
3 1 Guide Input
4 1 Cap Connector L
5 1 Cap Connector U
6 116-1897-00 1 Actuator Tray 1 Empty
7 1 Pickup Shaft
8 1 Guide Paper
9 116-1898-00 1 Tray 1 Empty Sensor
10 1 Bearing Shaft
11 116-1947-00 1 Bushing
12 116-1951-00 2 Pick Rollers Tray 1
7
1
5
12
11
2
0
8
3
6
4
10
9
