7) Fuser Unit
Warning: The fuser melts toner onto the paper at a very high temperature, use care when handling the Fuser
or severe burns can result. When removing the fuser from a printer that has recently been operating, let the fuser
cool before handling. Do not touch the AC line (copper contact) on a main frame even after removing the fuser.

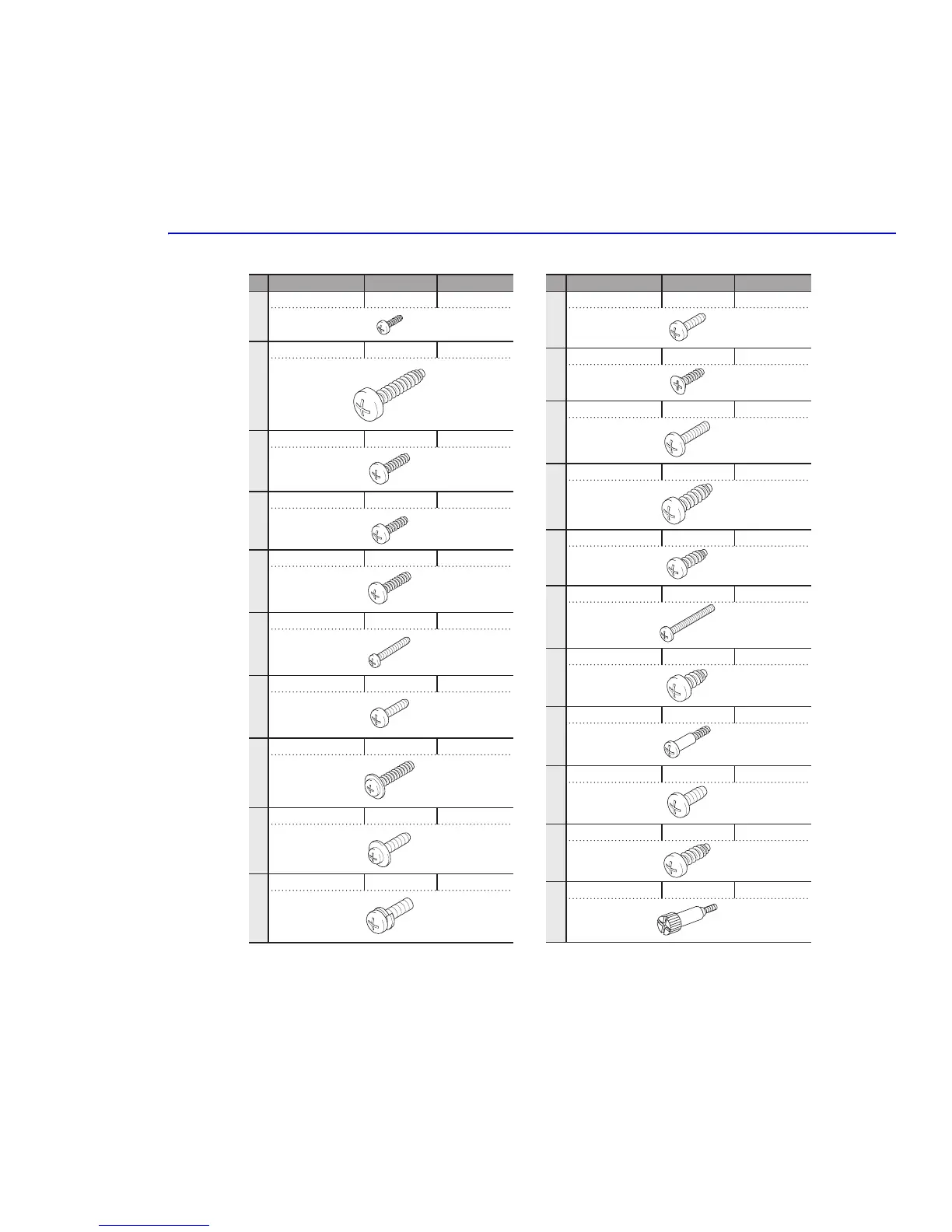

Screws Used in the Printer (Hardware Kit)
NO DESCRIPTION SPEC
S1 SCREW-MACHINE 2.6*4, GOLD
S2 SCREW-TAPPING 4*15, GOLD
S3 SCREW-TAPPING 3*8, GOLD
S4 SCREW-TAPTITE 2.6*6, GOLD
S5 SCREW-TAPTITE 3*8, BLACK
S6 SCREW-TAPTITE 2*10, GOLD
S7 SCREW-TAPTITE 3*6, GOLD
S8 SCREW-TAPTITE 3*10 SILVER
S9 SCREW-TAPTITE 3*6, GOLD
S10
SCREW-ASS’Y MACH 3*6, GOLD
NO DESCRIPTION SPEC
S11 SCREW-TAPTITE 3*6, GOLD
S12 SCREW-TAPTITE 3*8, BLACK
S13 SCREW-MACHINE 3*8, SILVER
S14 SCREW-TAPTITE 4*10 SILVER
S15 SCREW-TAPTITE 3*6, GOLD
S16 SCREW-MACHINE 2*16, BLACK
S17 SCREW-TAPTITE 4*6, YELLOW
S18 SCREW-SPICIAL 3*10, BLACK
S19 SCREW-TAPTITE 4*6, SILVER
S20 SCREW-TAPTITE 3*12, YELLOW
S21 COVER DIME SCREW EMBERGOLD

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
