Xerox Phaser 6100 Service Manual

Disassembly
6-50
6.4.25 Paper Feed Roller (PL 9.19.13)
1. Open Door C and protect the transfer roller.
2. Remove the e-ring and slide the large black feed roller off the shaft.

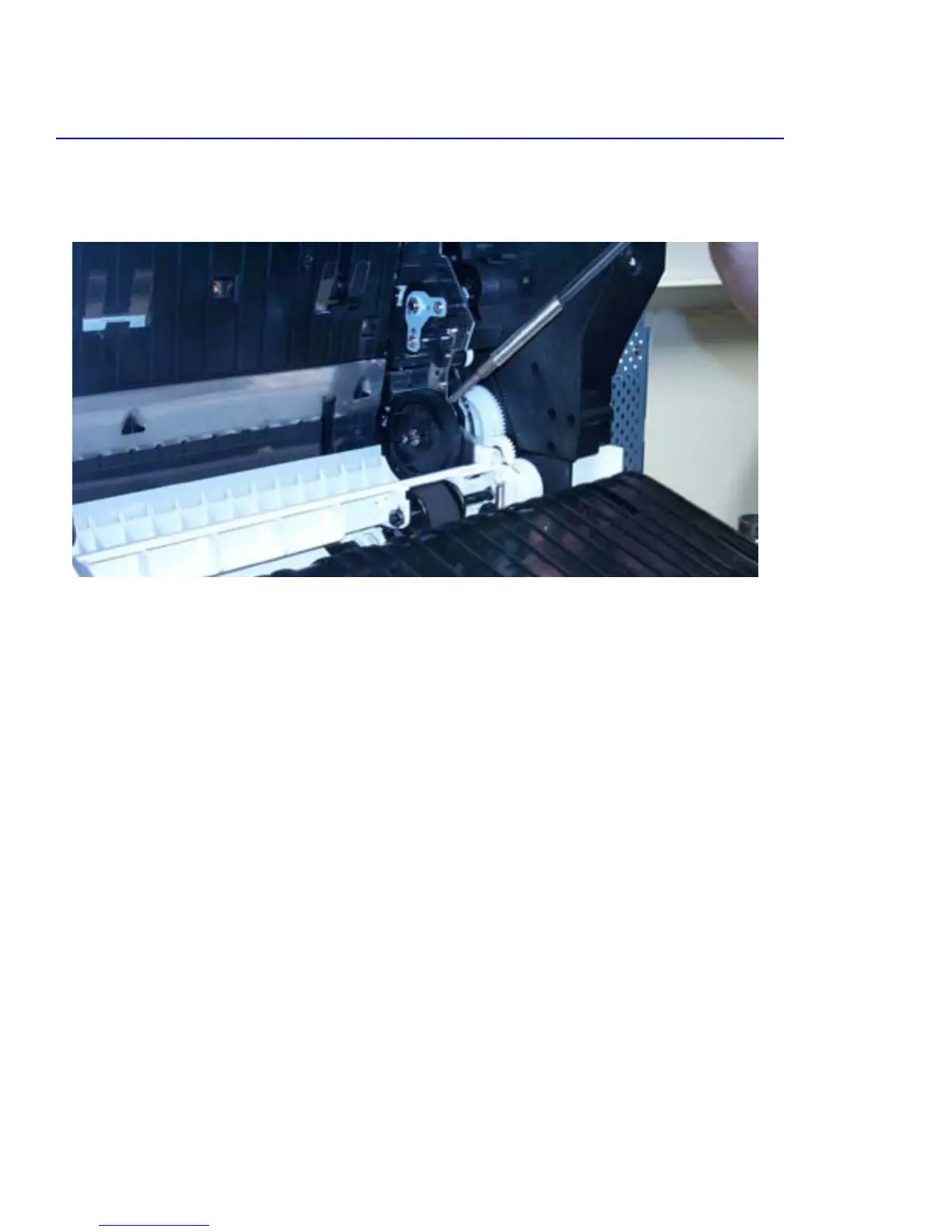

3. This roller is a press-fit roller, so gently work the roller off the shaft using a small flat-blade screwdriver.
>> On re-assembly:
1. When replacing the roller onto the shaft, depress the 2 white rollers (one behind, and one below) to allow
clearance for the black roller.
2. Wedge a small screwdriver behind the large white gear to prevent the shaft from moving when reinstalling the
roller.
3. Be careful not to damage the clear plastic paper guide. It should fit behind the paper path fins.

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
