Xerox Phaser 6100 Service Manual

Disassembly
6-34
6.4.14 Erase Lamp (PL 9.13.12)
1. Remove all the consumables (6.3.3)
2. Remove the front cover and top cover (6.4.1)
3. Remove the waster toner cartridge (o 6.4.18)
4. Open the DEVE cover (Door A) and the exit cover (Door B).
5. Remove 2 screws (4*10 silver) from the laser unit cover and 2 clips located next to the DEVE cover hinge.
(A)
6. Remove the laser unit cover.
7. Remove the waste auger tube.

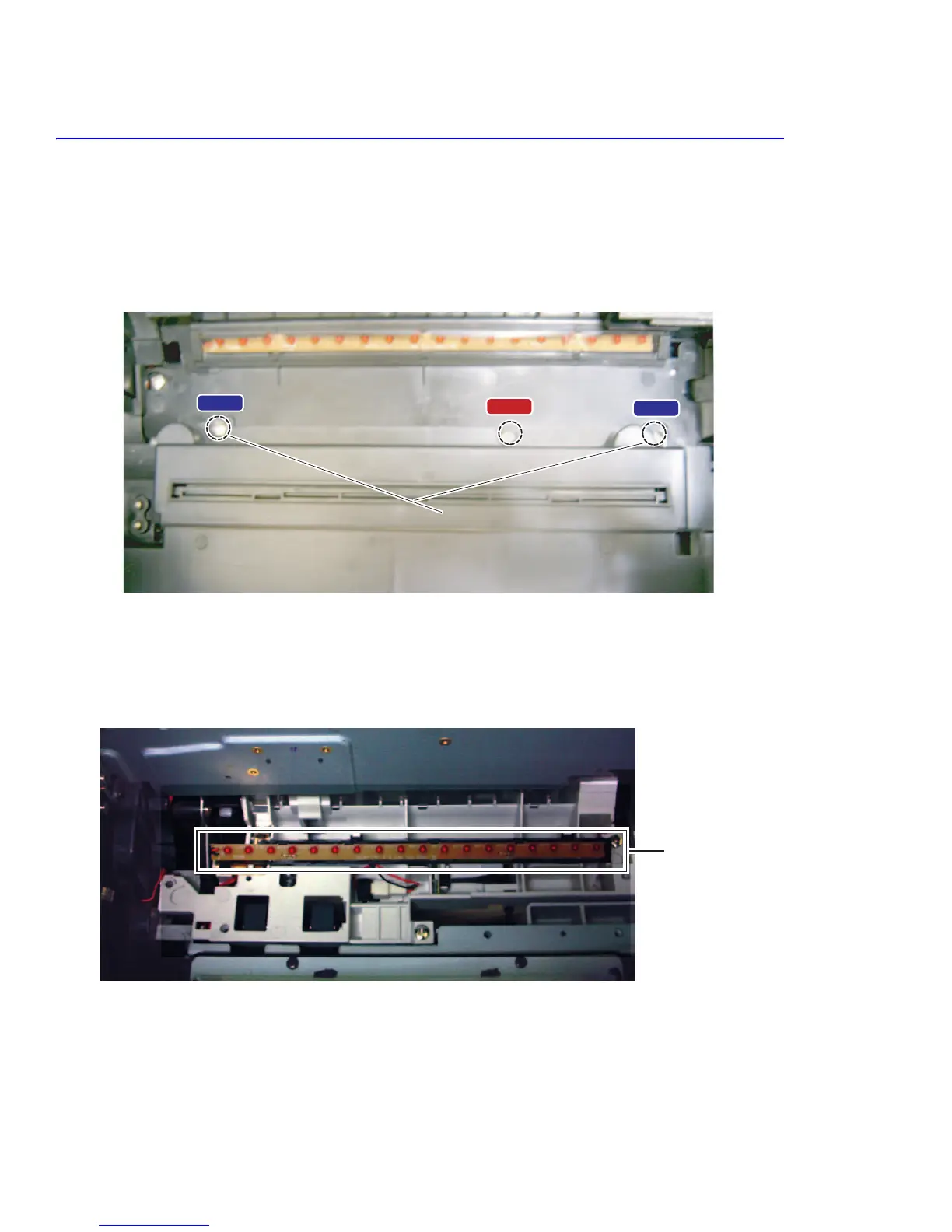

8. Remove 1 screw (4*10 silver) and then remove the lamp cover. (B)
9. Remove the 2 clips and lift the eraser lamp assembly, and disconnect the harness and then remove the erase lamp.
Screw
Screw
Screw
A
B
A
B
Erase Lamp

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
