Xerox Phaser 6100 Service Manual

Disassembly
6-6
6.3.2 Removing Consumables
This section shows you how to open the covers (front cover, DEVE cover, exit cover, and duplex cover) and how to
remove and replace the consumable parts (toner cartridge, transfer belt, and imaging unit).

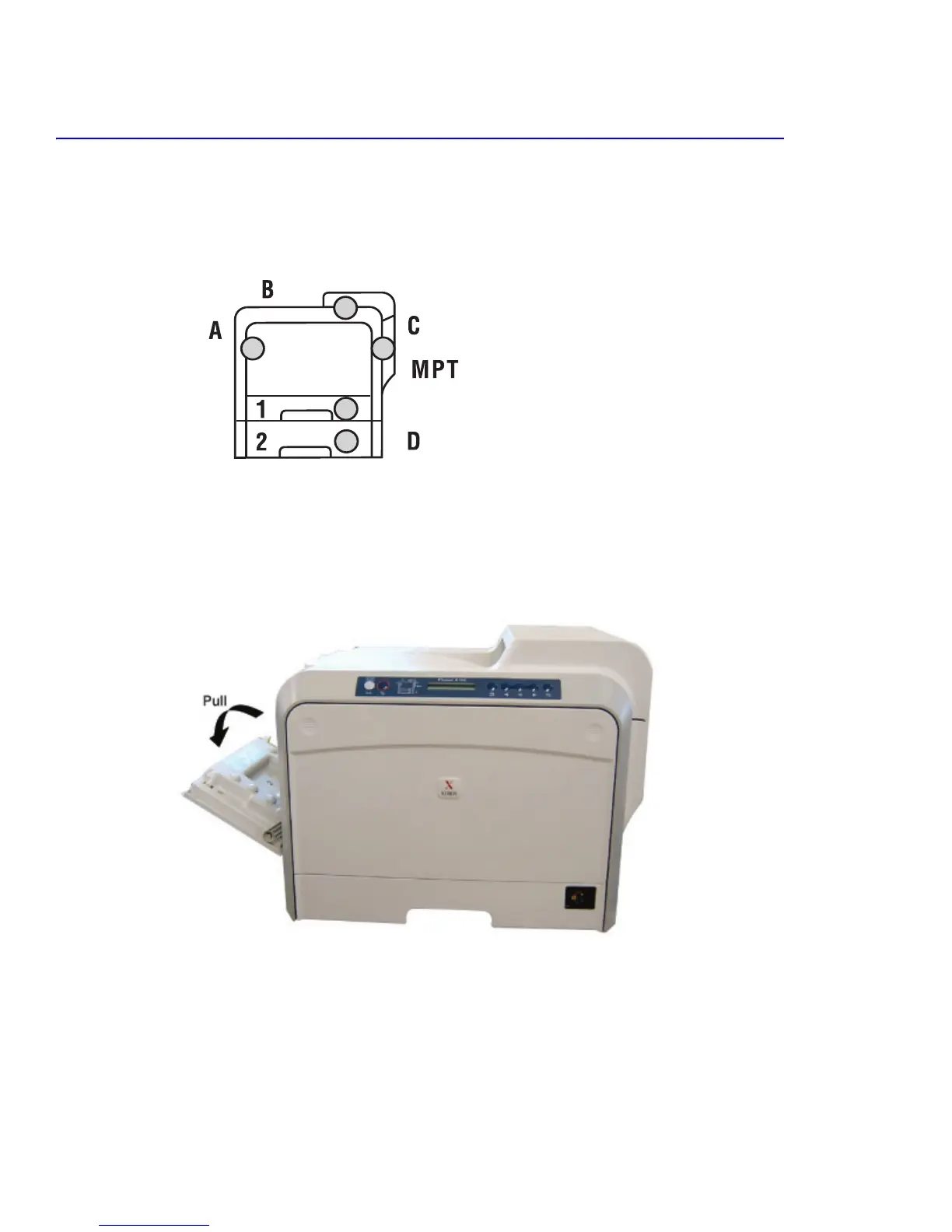

Orientation of the Printer Doors
1. Pull the side handle to open the DEVE cover (Door A) and then press down firmly until the toner cartridges are
ejected.
Note
Before opening the exit cover, completely open the DEVE cover, 90
o
to the main frame, ejecting
the toner cartridges.
2. Removing a toner cartridge (K, Y, M, and C)

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
