Xerox Phaser 6100 Service Manual

Disassembly
6-24
6.4.8 Fuser Fan Assembly (PL 9.1.27)
1. Remove the top cover. (6.4.1)
2. Remove the rear cover. (6.4.3)
3. Remove the main board shield. (6.4.7)
4. Remove 3 screws (3*10 silver).
5. Disconnect and free the harness from the main board and then remove the fuser fan.

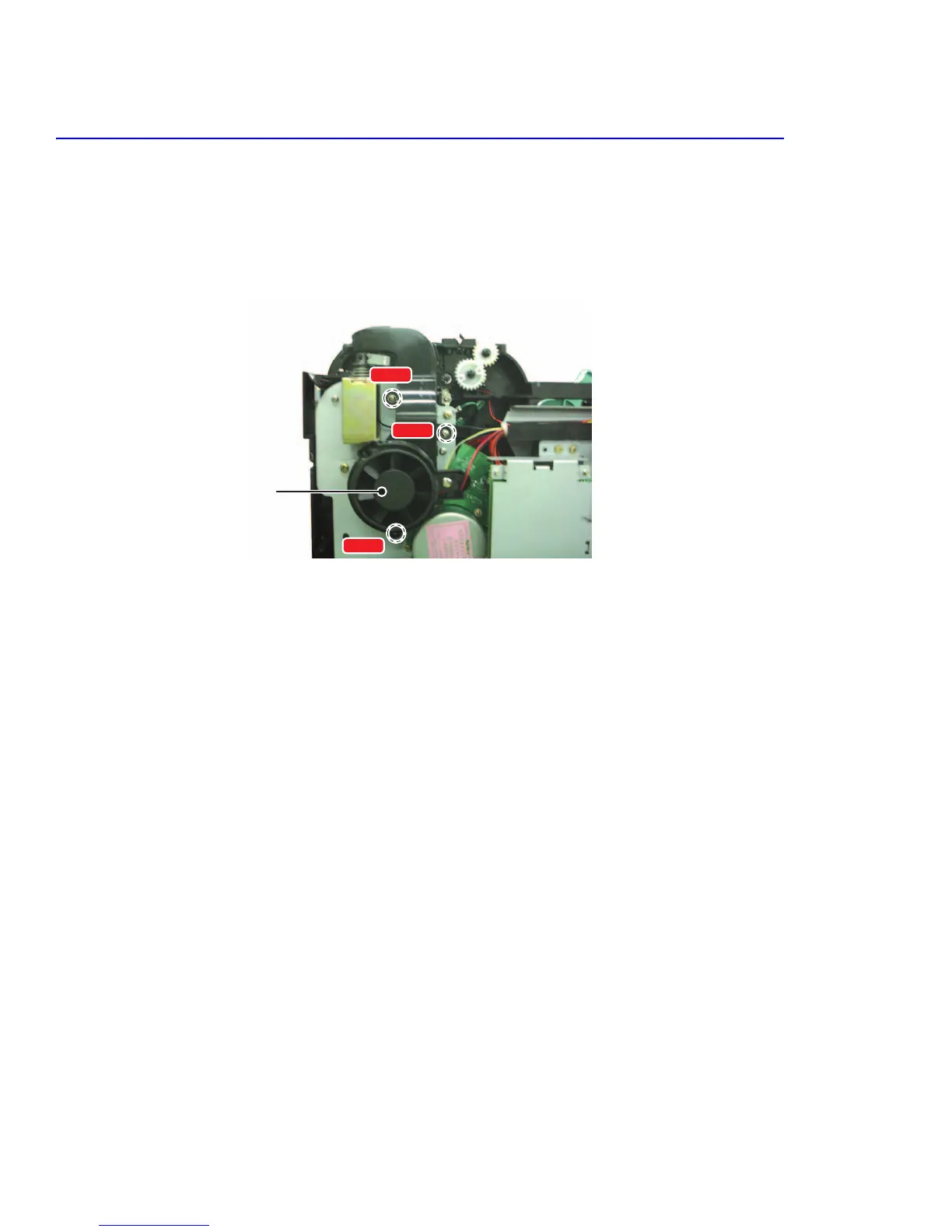

Fuser Fan
Screw
Screw
Screw

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
