Xerox Phaser 6100

Disassembly
Service Manual 6-43
6.4.19 cont’d

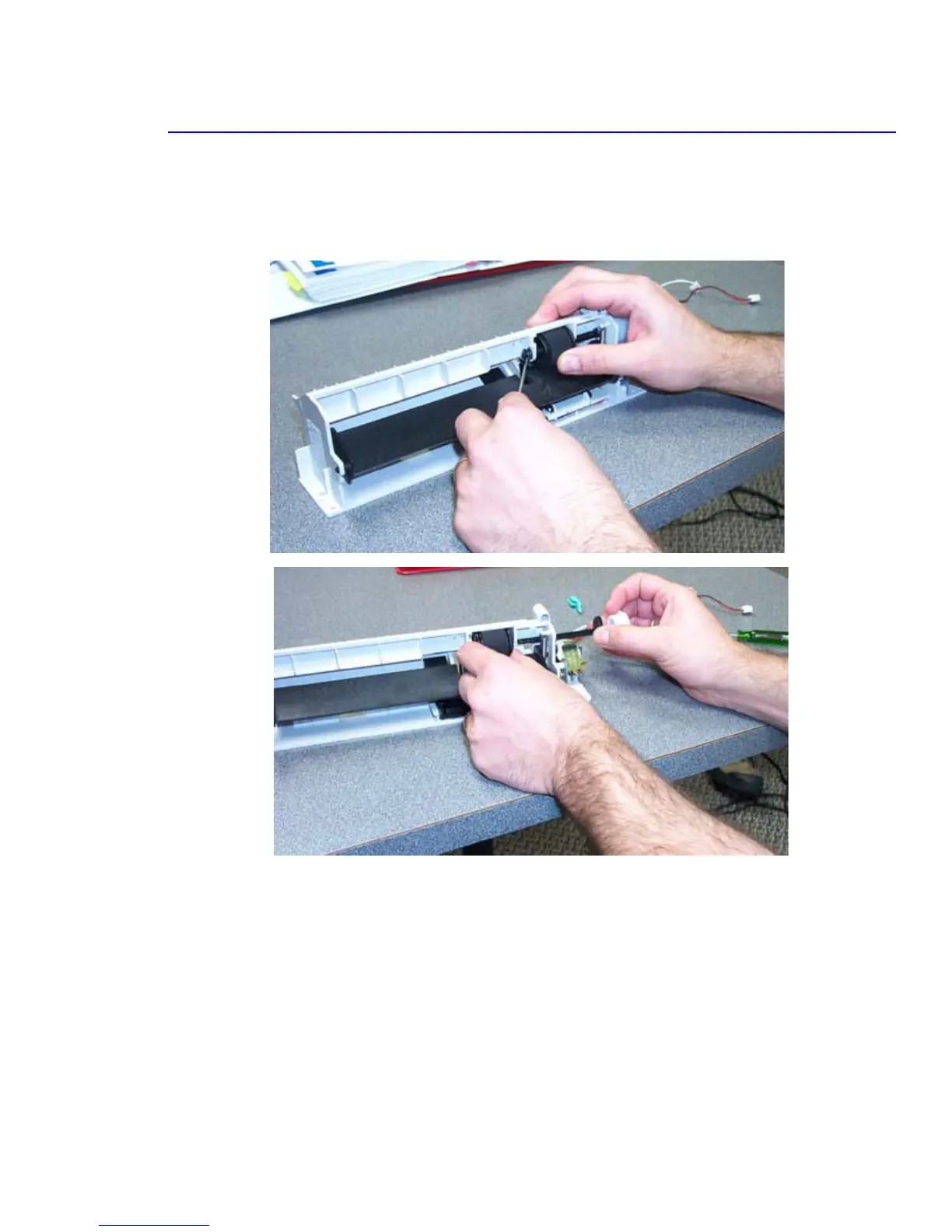

>> MPT Feed Roller
1. Place the MPT assembly on a flat surface and remove the e-ring and washer securing the pick roller shaft to the
assembly.
2. Slide the shaft to the right to free the roller and remove it.
