Xerox Phaser 6100 Service Manual

Disassembly
6-44
>> On re-assembly:
Note

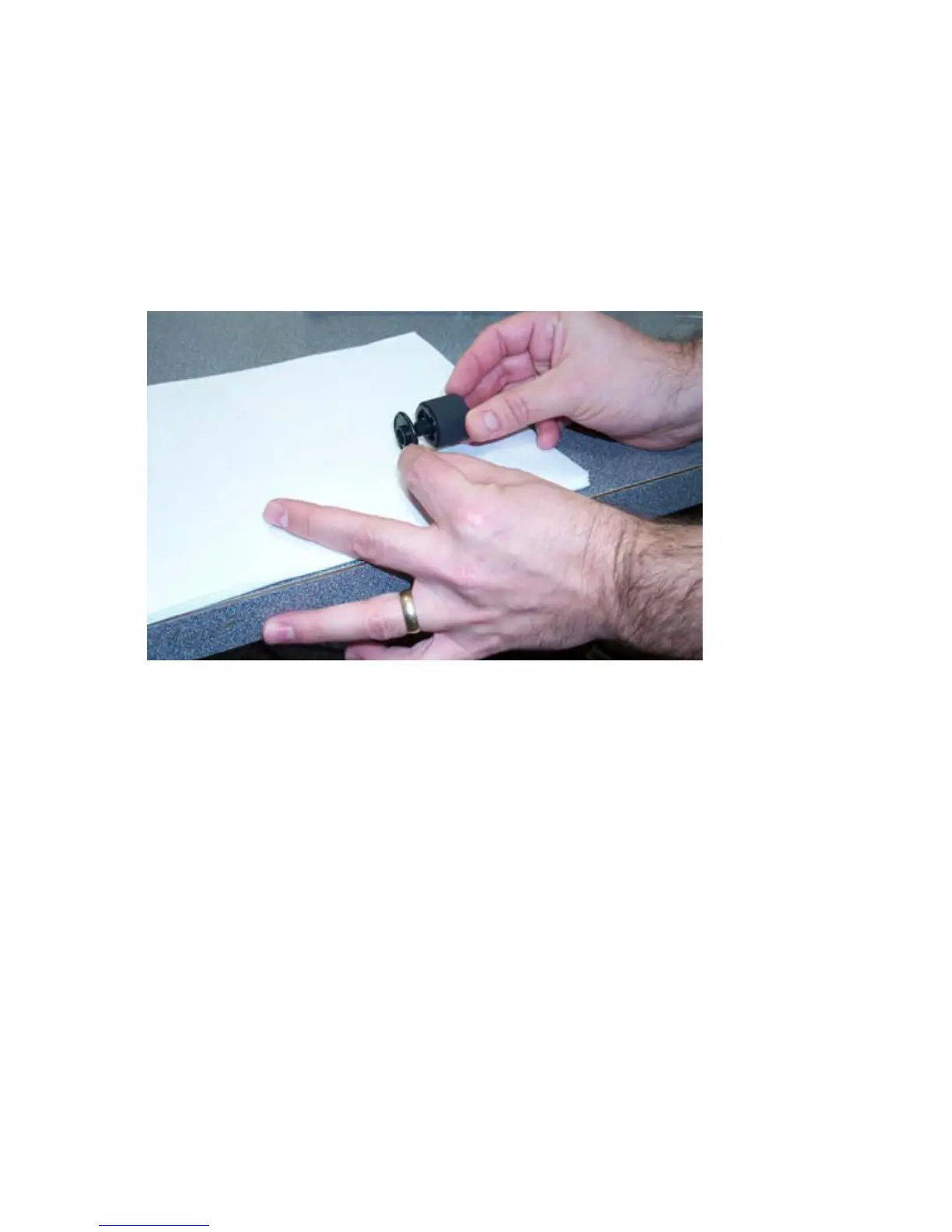

The roller has 3 pieces; 2 collars and the roller. When re-assembling the roller, the collars fit with the long ends
facing out.
The hole through the roller is round on one end and D shaped on the other. The D shaped end needs to face the
left.
The black plastic bearing that the roller shaft fits into is not attached to the printer and is easily lost. It has a small
key that fits into a slot in the MPT assembly.
Caution
Do not pinch the black washer in the e-ring slot.

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
