Xerox Phaser 6100 - Page 210

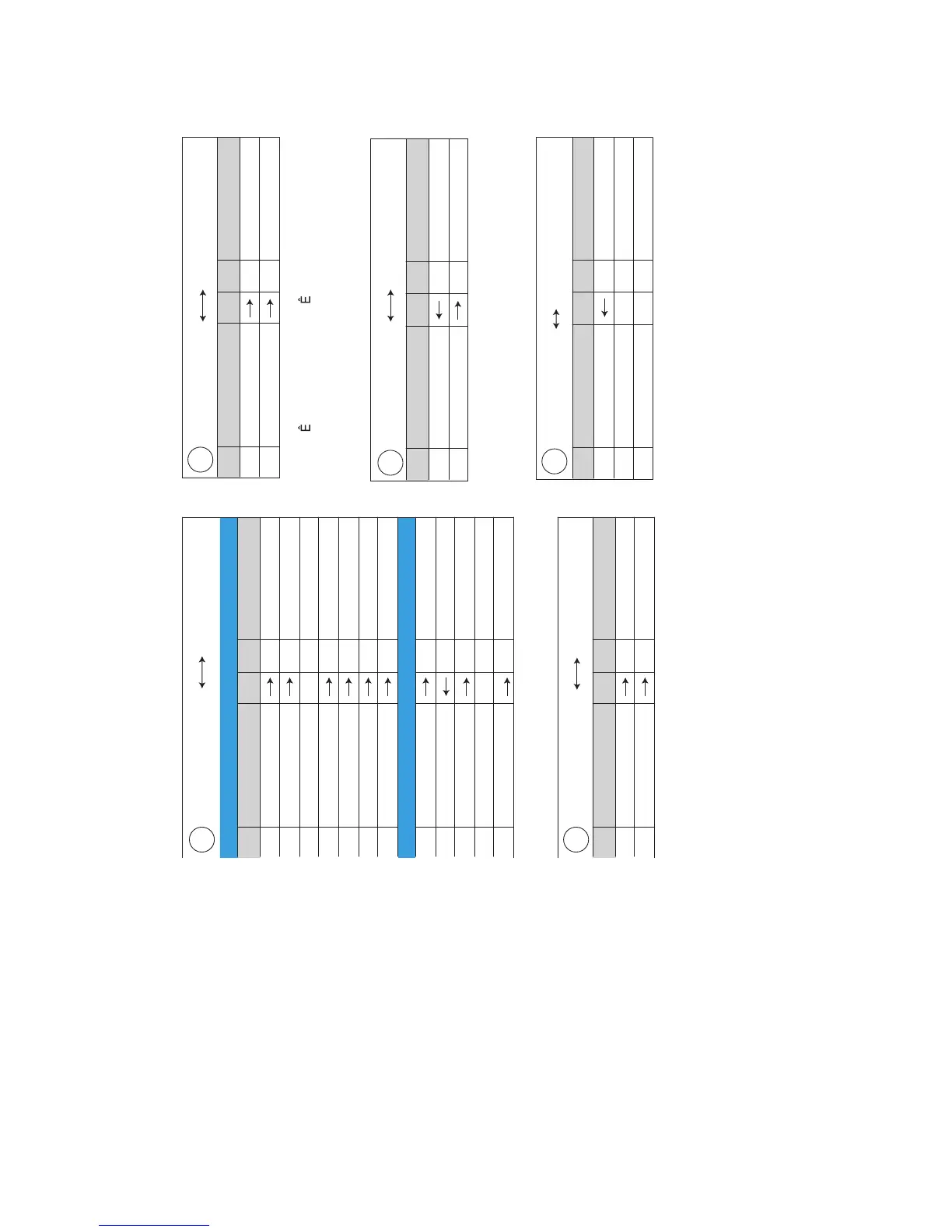

Connection Diagram
11-8
34
Main BD(CN12
) Laser Unit (LSU)
>> LD Part >> Motor Part
Pin
Signal Name Dir
Pin Signal Name
1
nHSYNC 1
*HSYNC
2
+5VL
2 +5V
3
DGND
3
GND
4
nLDON_LSU
4
*LD ON
5 VDO_LSU+
5
*VIDEO+
6 VDO_LSU-
6 *VIDEO-
7 nSH_LSU
7
*S/H
8 CLK_LSU
1 CLK
9
nRDY_LSU 2
*READY
10
nSTART_LSU
3
*START
11 AGND
4
GND
12
+24V 5
VCC
35
Main BD(CN11
)PTL(CN1)
Pin
Signal Name
Dir
Pin
Signal Name
1
+5V
1
<-
2
EN_ERASER
2
<-
36
Main BD(CN8
) ERASER(CN1)
Pin
Signal Name Dir
Pin Signal Name
1
+5VL 1
<-
2
EN_ERASER
2
<-
37
Main BD(CN6
) Imaging Unit (OPC)
Pin
Signal Name
Dir
Pin Signal Name
1
A_OPC_KEY
<-
2
DGND
<-
38
Main BD(CN13
)
Sensor(Temp 2)
Pin Signal Name
Dir
Pin
Signal Name
1
A_TEMP2
1
<-
2
NC
2
<-
3
GNDA
3
<-
* ( +5V
Resistance(150 Ohm) CN11-1 )
