Summary of Product
Service Manual 4-11
1) CPU BLOCK
A 120MHz - 32bit RISC processor is used to manage commands and data supplied by the host. This is converted
into a bitmap image which is passed to the engine block for printing.
2) SPGPm (Samsung Printer Graphics Processor) overview
■ Package: 272 pins PBGA
■ Power: 1.8V(Core), 3.3V(IO) power operation, P1284 inputs : 5V tolerant
■ Speed: 120MHz core ( ARM946ES) operation, 60MHz bus operation,
supportable engine speed: under 30ppm
■ Dual bus architecture for bus traffic distribution:
AMBA High performance Bus (AHB)
System Bus with SDRAM
■ Integrated ARM946ES: 32-bit RISC embedded processor core
■ Direct connection up to 5 SDRAM arrays:
SDRAM controller supports PC-66, PC-100 and PC-133 SDRAMs running at 60MHz
Up to 128MB per array, up to 512MB totally
Wide supports for various SDRAM configurations, including programmable band and column address
Programmable SDRAM refresh time interval
■ IEEE1284 compliant parallel port interface
Compatible ECP communications are supported
Direct support for IEEE1284 compliant data transceivers
■ High performance DMA based Interface to Printer Engine
■ Engine Controller
Motor Control Unit: Motor Speed Lookup Table Memory (128 x 16 x 2)
Pulse Width Modulation Unit
ADC Interface Unit
LSU Interface Unit
■ Ethernet Controller (MAC)
Full compliance with IEEE standard 802.3, 802.3u specification
Support 10/100 Mbps data transfer rates

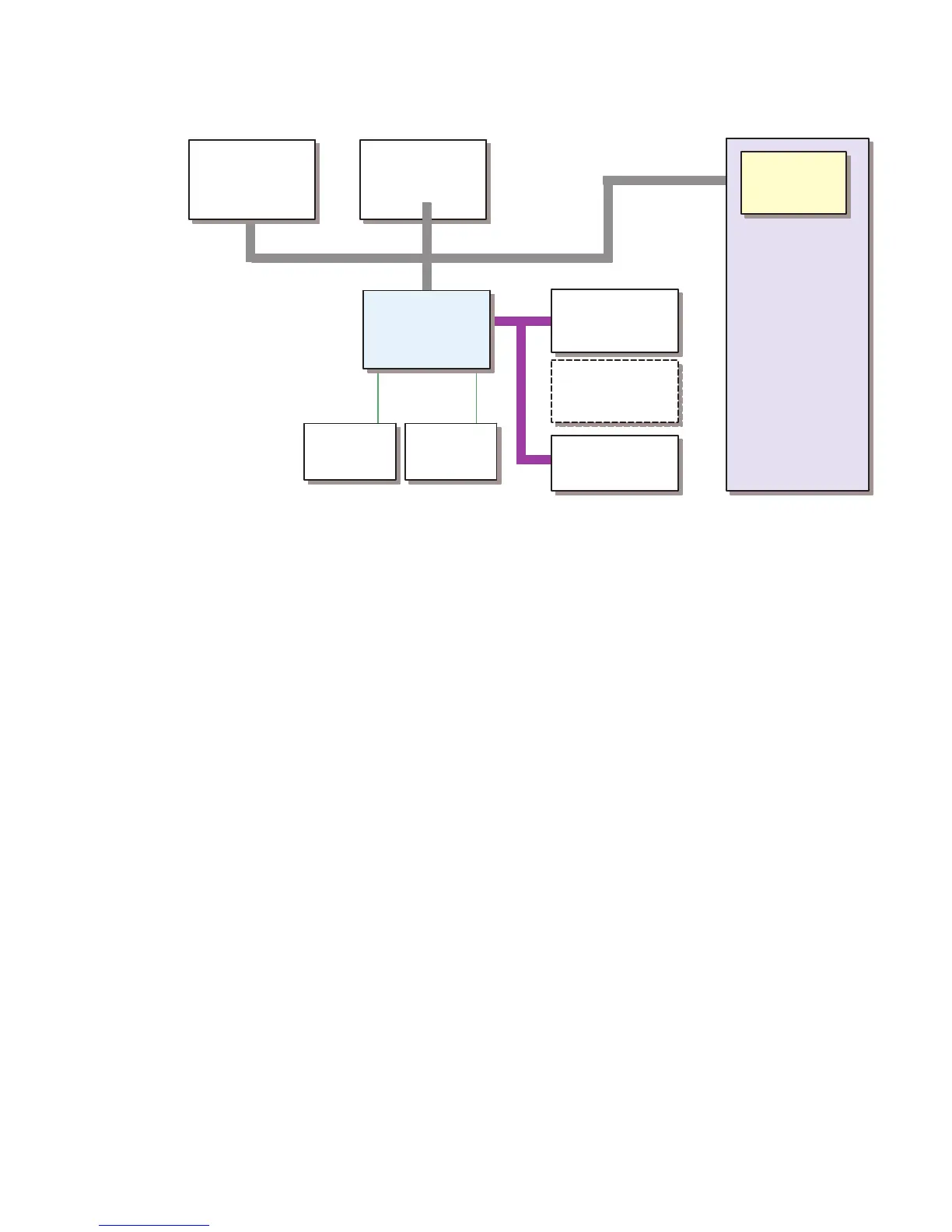

USB 2.0
SDRAM
64MB
EEPROM
2048 bytes
Flash Memory
4MB
(W-LAN)
NOT SUPPORTED
Engine
Control
Block
LPEC1
SDRAM DIMM
34MB~128MB
SPGPm
Panel
16x2 LC D
5pinUART
To Next Page
