System Outline
Service Manual 5-3
2) Developing
The latent image is formed as described below.

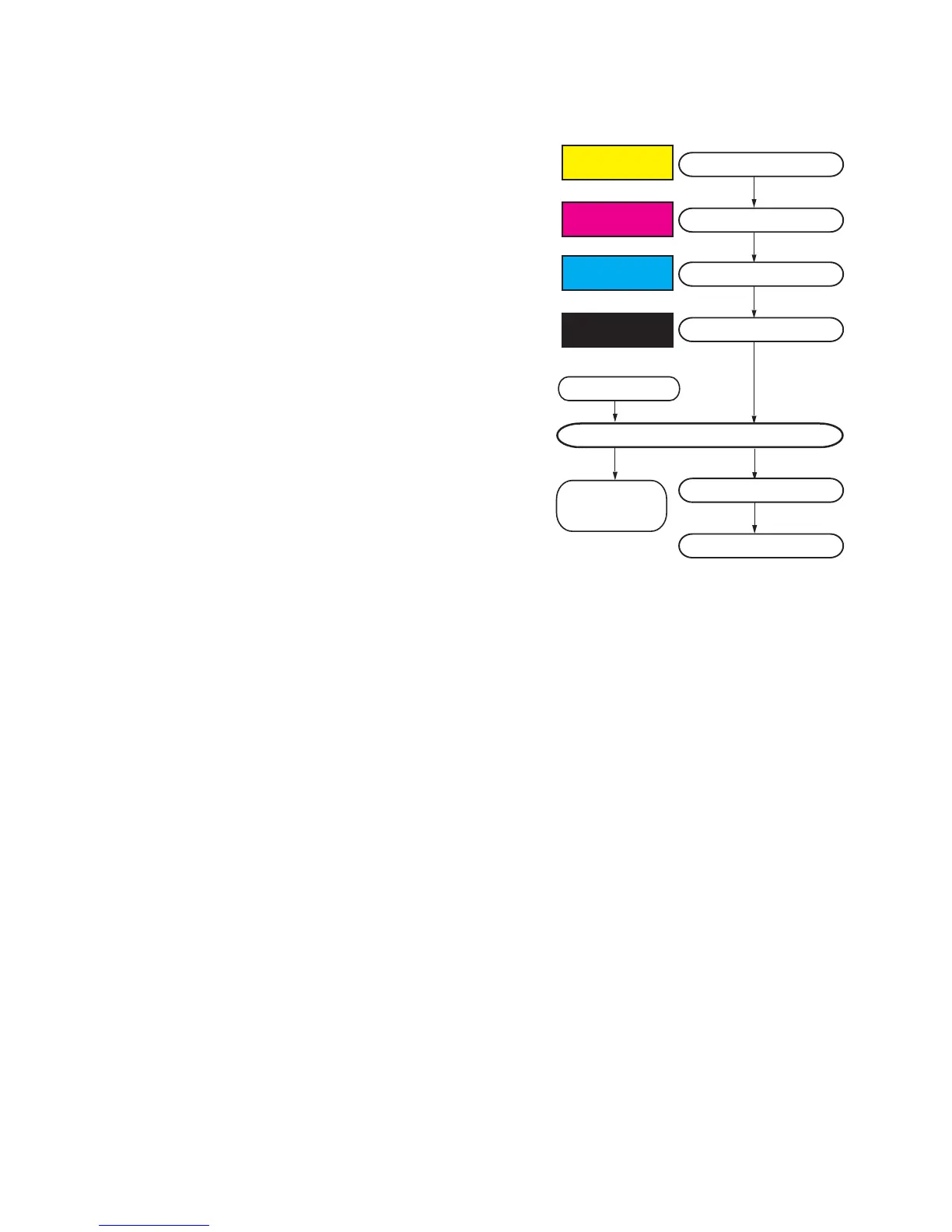

Developing Sequence: Y, M, C, and K
T1 Process
The image is created using a four color pass
process. Each of the four colors is applied to the
drum one at a time in the following order: Y, M,
C, and then K.
The image formed on the drum is then
transferred to the transfer belt.
T2 Process
The full four color image formed on the transfer
roller, from the transfer belt, is then transferred
to the media.
Fuser and Exit
The image on the page is then fused and the
paper is ejected into the output tray.
3) Toner Cartridge Empty Detection
The toner cartridge empty state is detected by the
CRUM (NVRAM) contained in each cartridge.
Developing and Image Transfer
Developing and Image Transfer
Developing and Image Transfer
Paper Pick-up
Fusing
Cleaning of
Transfer Belt
Paper Exit
Image Transfer to page
Developing and Image Transfer
Yellow ColorYellow Color
Magenta ColorMagenta Color
Cyan ColorCyan Color
Blacl BolorBlack Color
