Xerox Phaser 6100 Service Manual

Disassembly
6-8

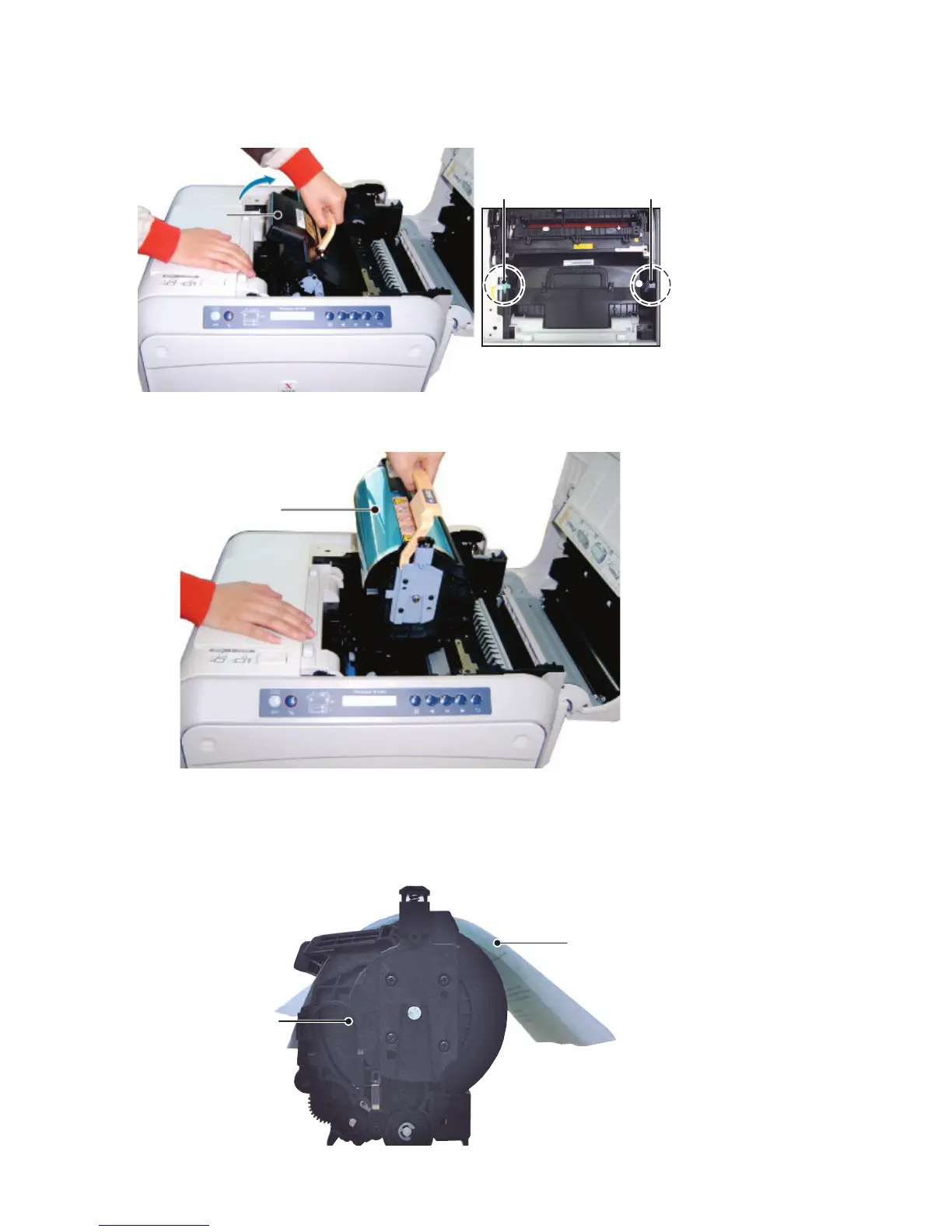

4. Remove the transfer belt by releasing the lock levers on both sides.
5. To remove the imaging unit, carefully lift the unit using the handle provided.
Caution
Ensure the drum surface is not scratched or damaged, while removing from the printer or after
placing it on a flat surface. Do not touch the surface of the drum. Exposing the drum surface to
direct light for more than 5 minutes will damage the drum, cover it with paper as shown below.
Transfer
Belt
Lever Lever
Imaging Unit
OPC Drum
Paper

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
