Xerox Phaser 6100 Service Manual

Disassembly
6-32

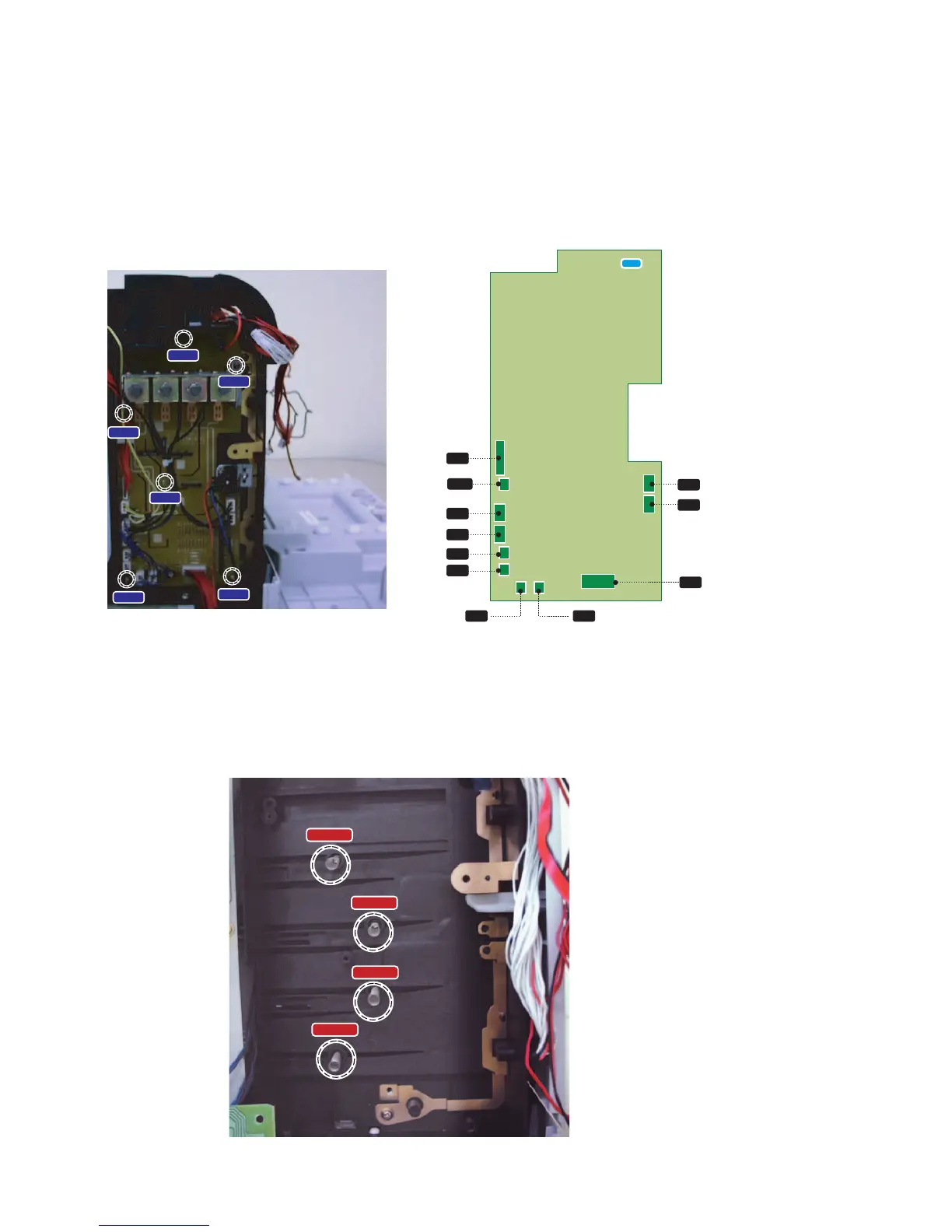

8. Disconnect 8 harnesses from the DEVE drive board: CN1, CN10, CN5, CN9, CN4, CN8, and supply.
9. Remove 6 screws (3*10 silver) and then take out the DEVE drive Board
Caution
CN5, CN9, CN4, and CN8 are keyed the same and can be plugged in incorrectly. Start with CN8
which corresponds to the bottom clutch assembly, then work up to CN4, CN9, and CN5..
10. Remove the 4 high-voltage terminals to ensure they don’t become damaged or lost.
Caution
Do not lose or damage the terminal springs.
.
Screw
Screw
Screw
Screw
Screw
Screw
SUPPLY
CN1
CN2 SOL-2ND
CN7 SOL-3RD
CN1 BLCD_DEV
CN10 SOL_T1_CLN
CN6 SOL_1ST
CN3 SOL_4TH
CN5 CLT_4TH
CN9 CLT_3RD
CN4 CLT-2ND CN8 CLT-1ST
Terminal
Terminal
Terminal
Terminal

Xerox Phaser 6100 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	15 s
Time to first page (color, normal)	24 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	64 MB
Standard input trays	2
Compatible operating systems	MAC OS, NT4, OS X, Win2000, Win95/98, WinME, WinXP, Win 98se
Recommended operating temperature range (T-T)	15 - 32.5 °C
Media types supported	A-4
Page description languages	GDI
Total input capacity	350 sheets

Weight and Dimensions

Dimensions (WxDxH)	510 x 470 x 405 mm
