7.4 Cooling Fan and Circulation Fan
Periodic Inspection & Maintenance
7
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 323

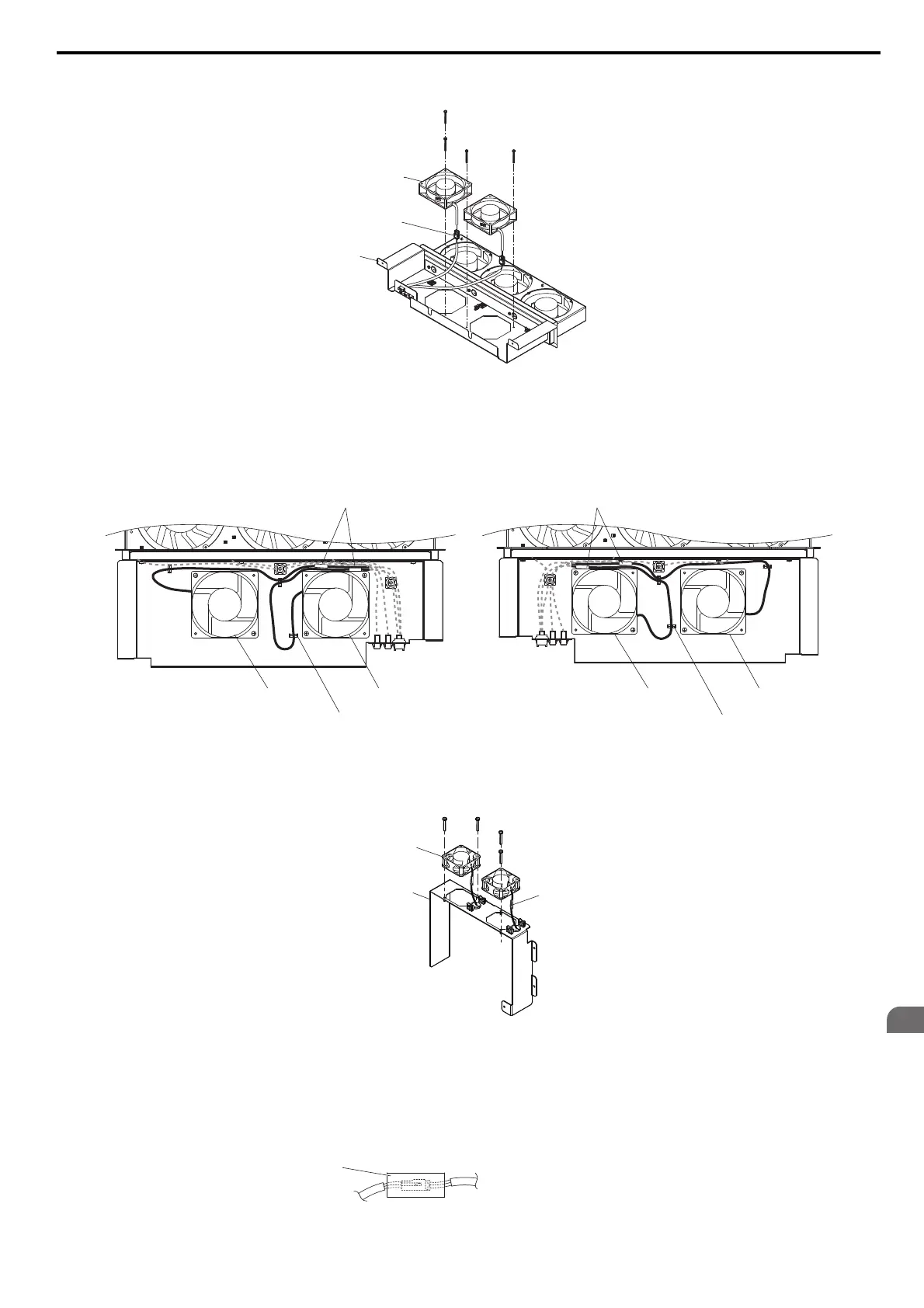

3. Turn the fan unit over and replace the circulation fans.
Figure 7.46
Figure 7.46 Replacing the Circuit Board Cooling Fans
4. Place the cooling fan connectors and guide the lead wires so that they are held in place by the cable hooks.
Figure 7.47
Figure 7.47 Cooling Fan Wiring: Models 4A0930 and 4A1200
5. Replace the circuit board cooling fans.
Note: Figure 7.48 shows the right side circuit board cooling fan.
Figure 7.48
Figure 7.48 Replacing the circuit board cooling fans: Models 4A0930 and 4A1200
6. Position the protective tube so that the fan connector sits in the center of the protective tube. (Only for circuit
board cooling fans).
A – Cooling Fan C – Cooling Fan Connector
B – Fan Unit Case
A – Circuit Board Cooling
Fan
B – Circuit Board Cooling
Fan Case
A
C
B
common_TMonly
Circulation Fan B10 Circulation Fan B9
Fun Unit Case (R)
Circulation Fan B8 Circulation Fan B7
Hook
Relay Connector
Hook
Fun Unit Case (L)
Relay Connector
common_TMonly
A
C
B
common_TMonly
Protective tube
com
-
mon_T
-
Monly
