YASKAWA E1000 User Manual

1.5 Component Names
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 35
Receiving
1
■ Three-Phase AC200 V CIMR-E2A0360A, 0415A
Three-Phase AC400 V CIMR-E4A0250A to 0362A
Figure 1.4

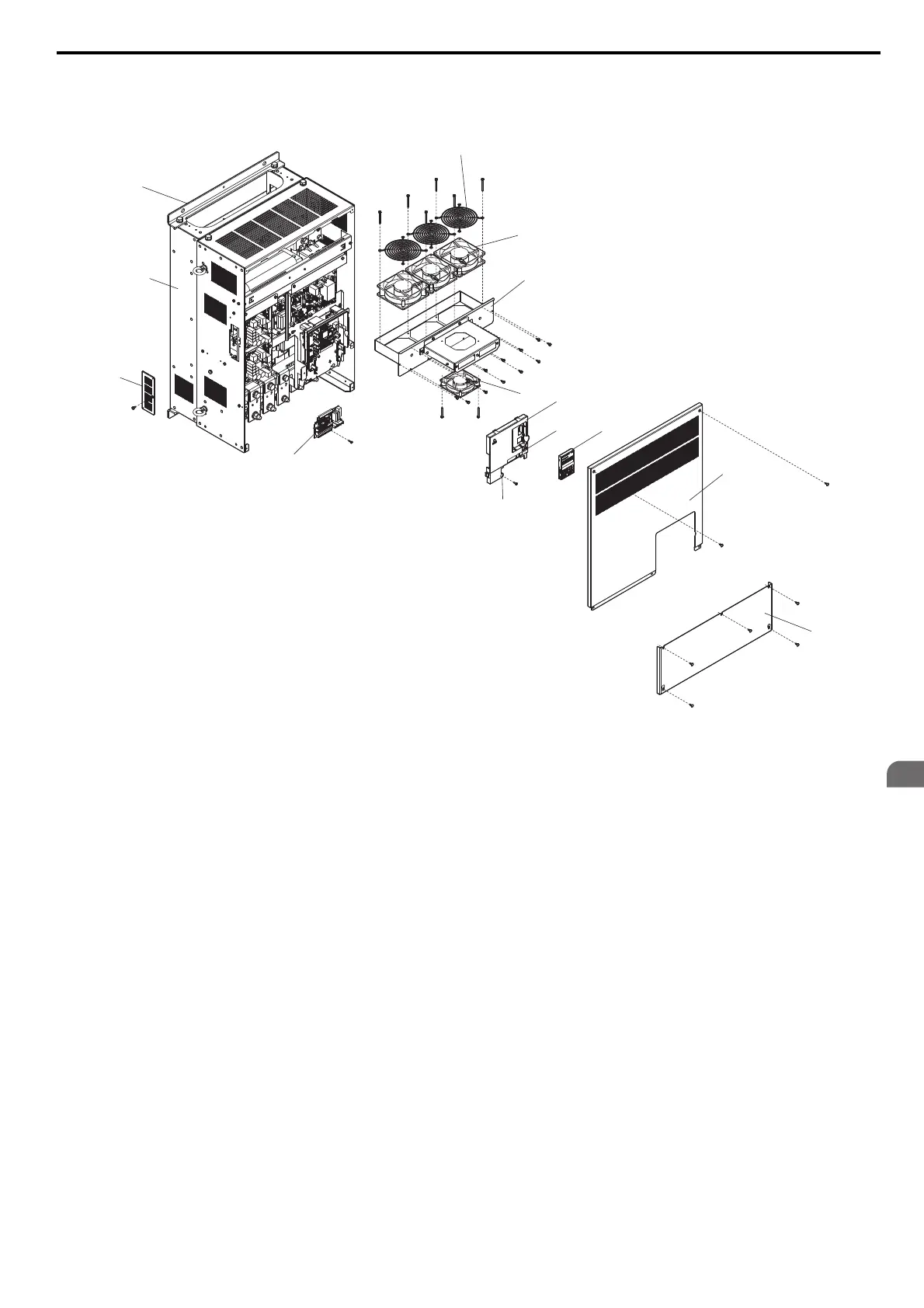

Figure 1.5 Exploded view of IP00 Enclosure Type Components (CIMR-E4A0362A)
A – Mounting hole H – Circulation fan <1>
<1> The following drive models come with a built-in circulation fan.
CIMR-E2A0360, 2A0415
CIMR-E4A0362
B – Heatsink I – Front cover
C – Optional 24 V DC power
supply connector cover
J – USB port (type-B)
D – Terminal board K – Digital operator
E – Fan guard L – Front cover screw
F – Cooling fan M – Drive cover
G – Fan unit case N – Terminal cover
J
K
B
C
E
F
G
H
I
L
M
N
D
A
YEC_TMonly
SIEP_C710616_35.book 35 ページ ２０１５年１１月３０日 月曜日 午後２時２分
