Miscellaneous Imager Options

130

Decode Mirror Images (Data Matrix Only)

Parameter # 537 (SSI # F1h 19h)

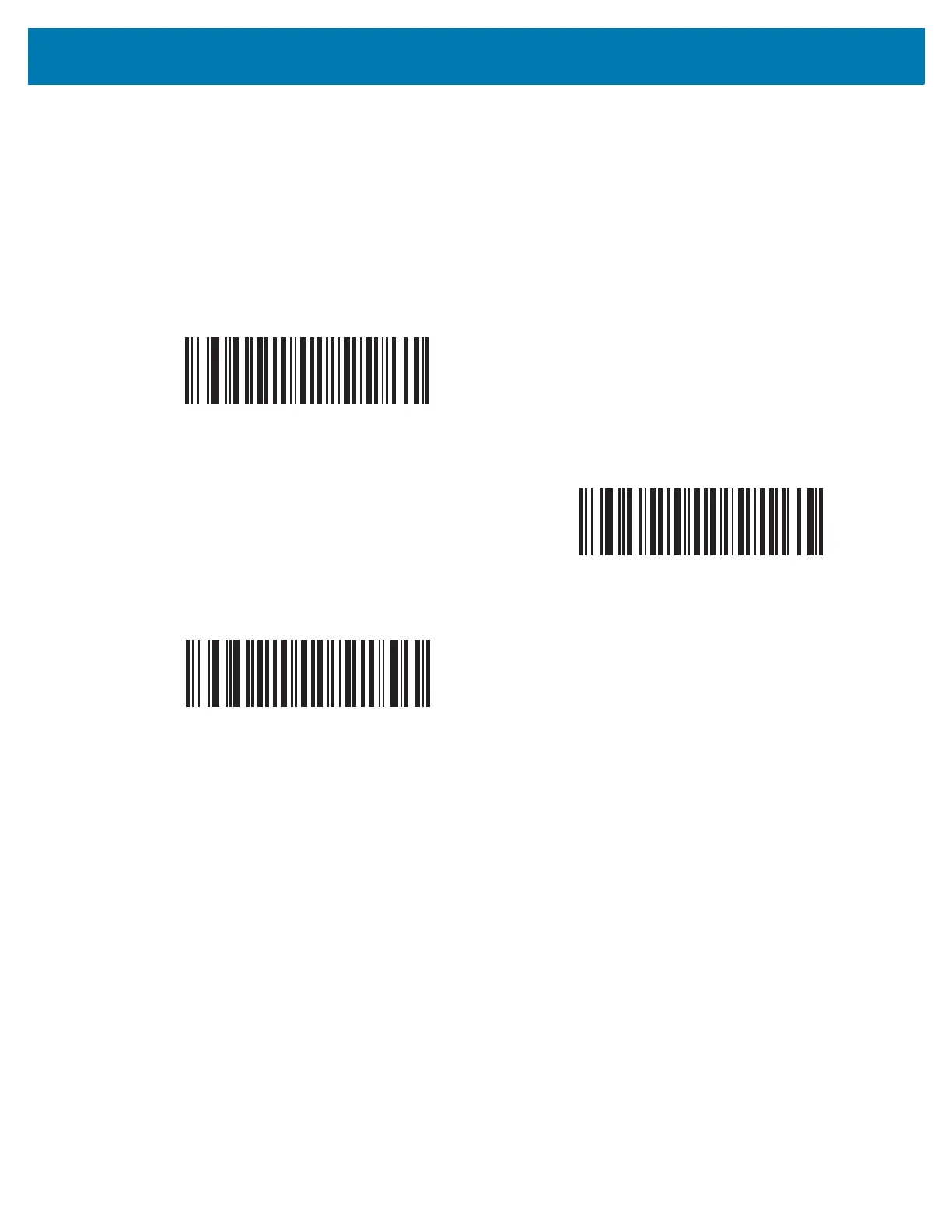

Select an option for decoding mirror image Data Matrix bar codes:

• Always - decode only Data Matrix bar codes that are mirror images

• Never - do not decode Data Matrix bar codes that are mirror images

• Auto - decode both mirrored and un-mirrored Data Matrix bar codes.

Never

(0)

Always

(1)

*Auto

(2)
