Symbologies

192

Interleaved 2 of 5 (ITF)

Enable/Disable Interleaved 2 of 5

Parameter # 6 (SSI # 06h)

To enable or disable Interleaved 2 of 5, scan the appropriate bar code below, and select an Interleaved 2 of 5

length from the following pages.

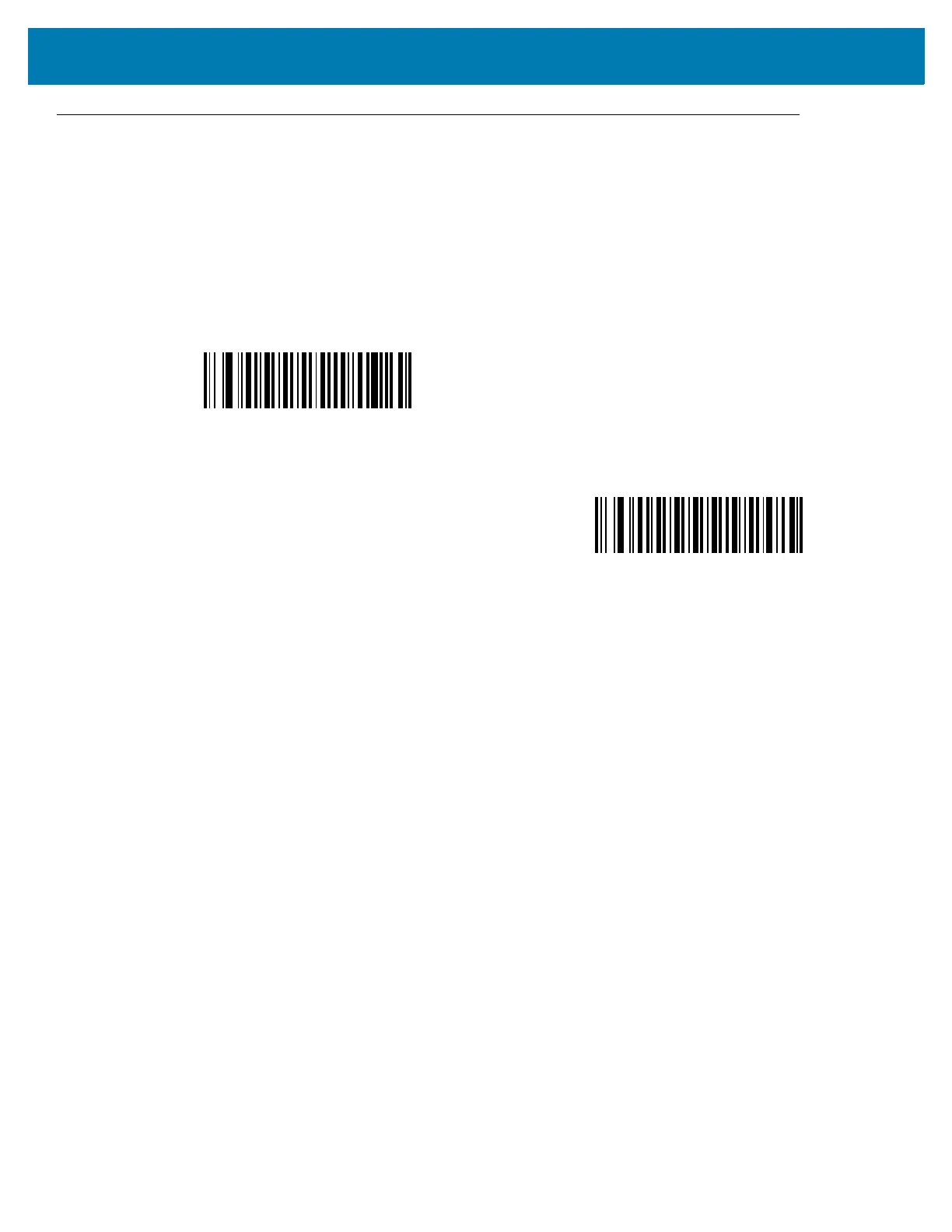

Enable Interleaved 2 of 5

(1)

*Disable Interleaved 2 of 5

(0)
