Symbologies

216

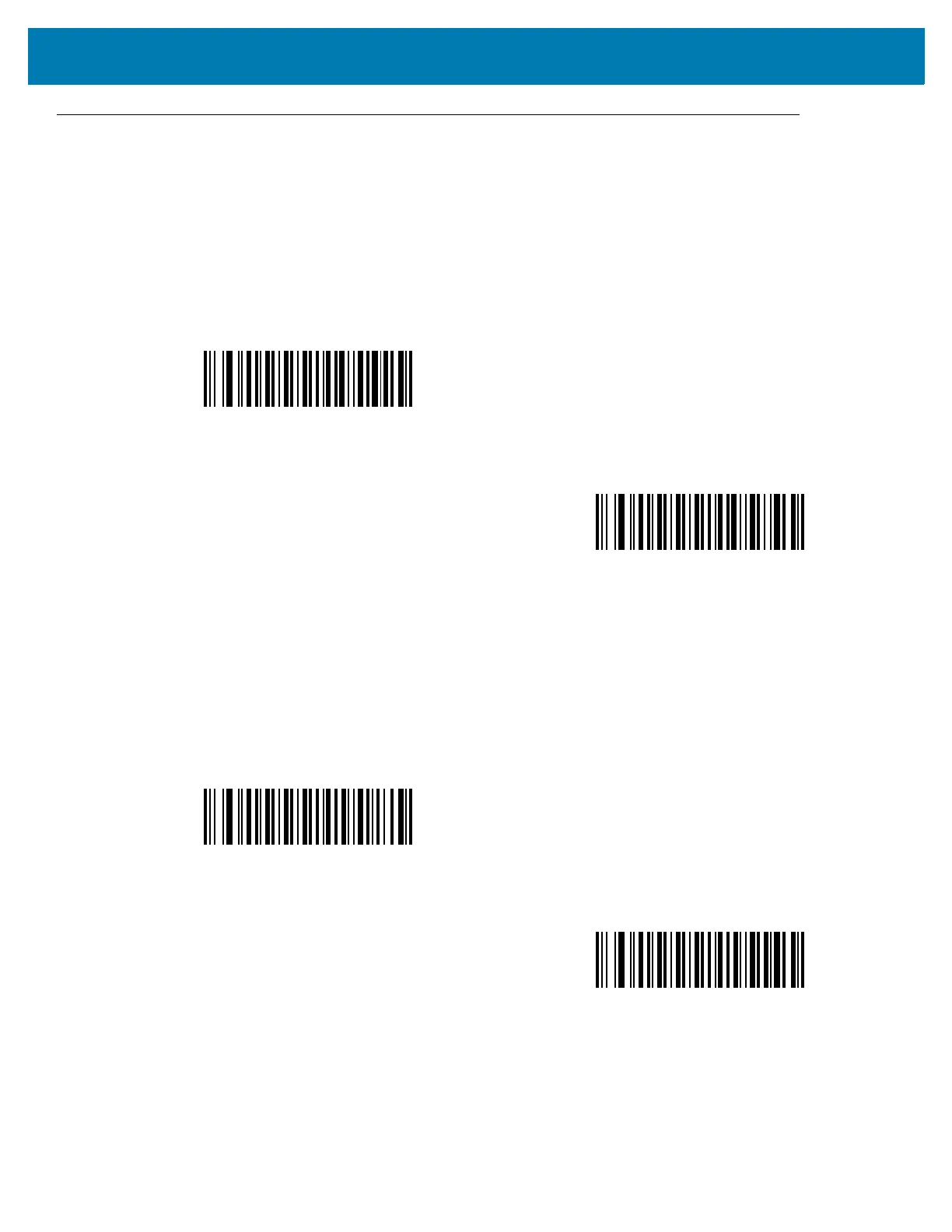

GS1 DataBar

The variants of GS1 DataBar are DataBar-14, DataBar Expanded, and DataBar Limited. The limited and expanded

versions have stacked variants. Scan the appropriate bar codes to enable or disable each variant of GS1 DataBar.

GS1 DataBar-14

Parameter # 338 (SSI # F0h 52h)

GS1 DataBar Limited

Parameter # 339 (SSI # F0h 53h)

Enable GS1 DataBar-14

(1)

Disable GS1 DataBar-14

(0)

*Enable GS1 DataBar Limited

(1)

Disable GS1 DataBar Limited

(0)
