7. Using the four screws removed from the contact block, install the Triggerless Assembly using a T6 Torx
screwdriver. Torque screws to 2 kgf-cm.
8. Install the Large Comfort Pad. See Large Comfort Pad Installation on page 286.
Finger Strap Replacement (Trigger Swivel Assembly)
Finger Strap Removal (Trigger Swivel Assembly)
1. Remove the Finger Strap from the Strap Buckle.

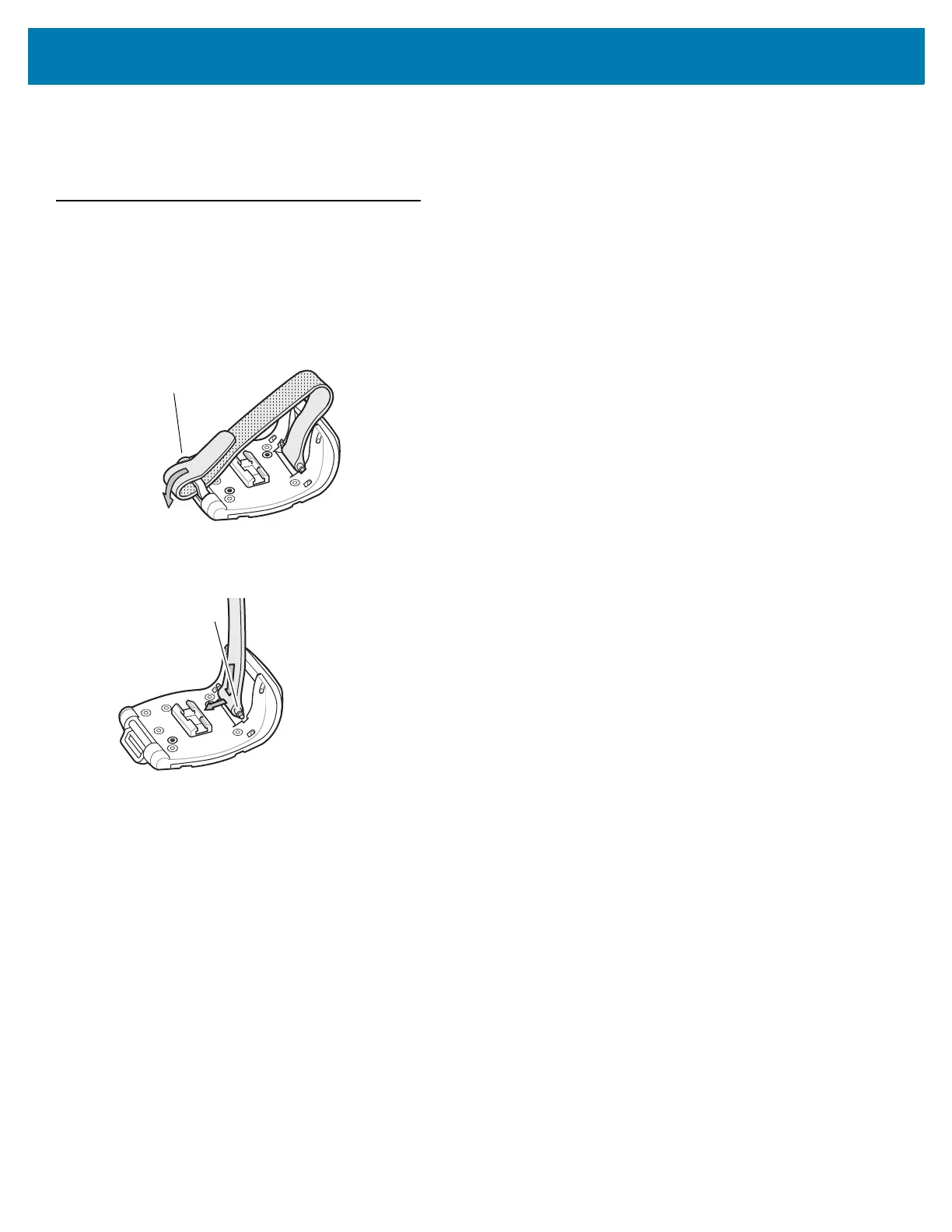

Figure 67 Finger Strap Removal (Trigger Swivel Assembly)
2. Push the Strap Pin down and pull the Finger Strap to remove the Strap Pin out of the Trigger Swivel Assembly.
Figure 68 Strap Pin Removal (Trigger Swivel Assembly)
Strap Buckle
Strap Pin
