Maintenance and Troubleshooting
294
Strap Buckle Replacement
Strap Buckle Removal
1. Remove the Triggered or Triggerless Swivel Assembly (see Trigger Assembly Replacement on page 287).
2. Press the Strap Buckle off the Trigger Swivel Assembly Pin.

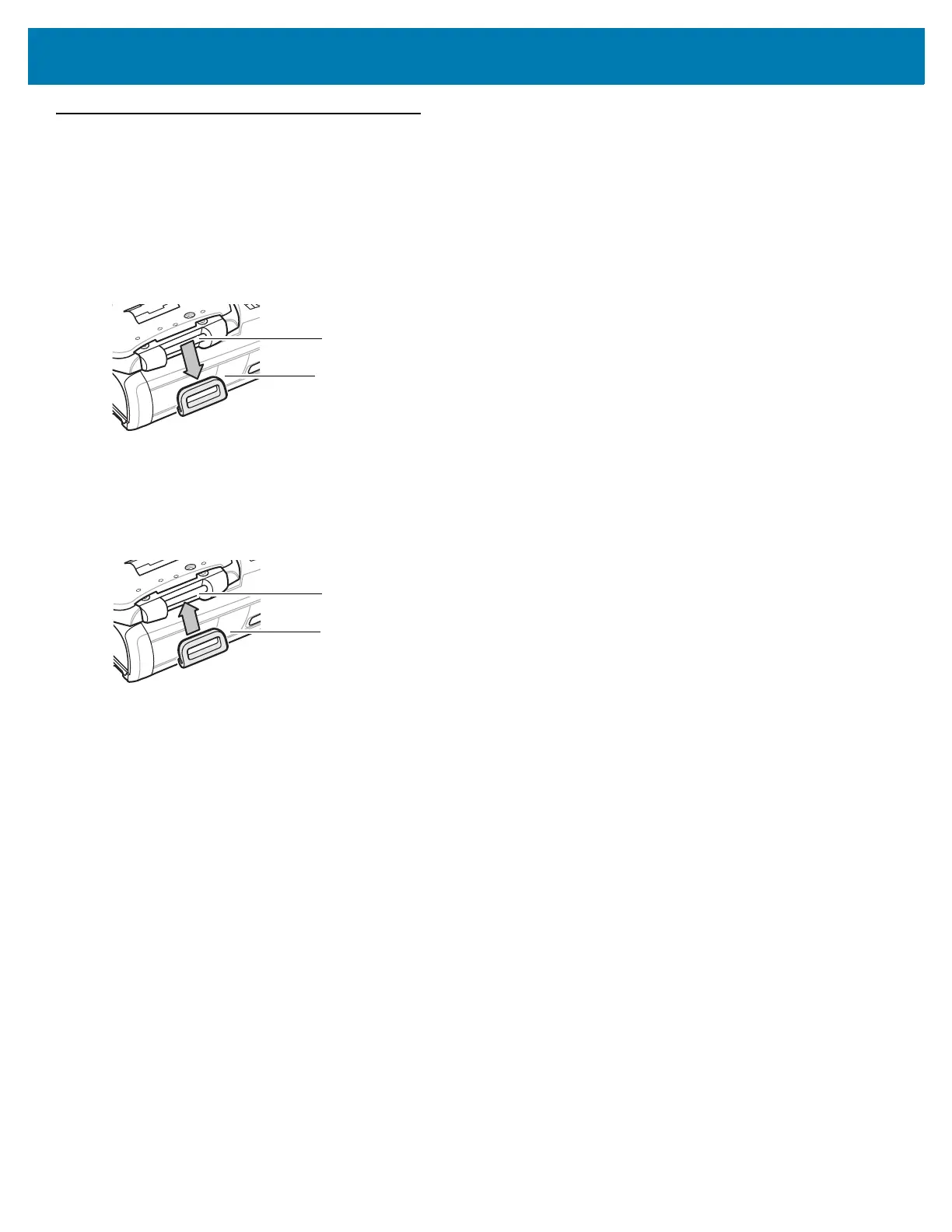

Figure 73 Strap Buckle Removal
Strap Buckle Installation
1. Align the pin slot of Strap Buckle with the pin of the Trigger Swivel Assembly.
Figure 74 Strap Buckle Installation
2. Press the Strap Buckle on to Trigger Swivel Assembly Pin. The pin slot snaps onto the pin.
3. Install the Trigger Swivel Assembly (see Trigger Assembly Replacement on page 287).
Strap Buckle
Trigger Swivel Assembly Pin
Strap Buckle
Trigger Swivel Assembly Pin
