Symbologies

229

Aztec

Parameter # 574 (SSI # F1h 3Eh)

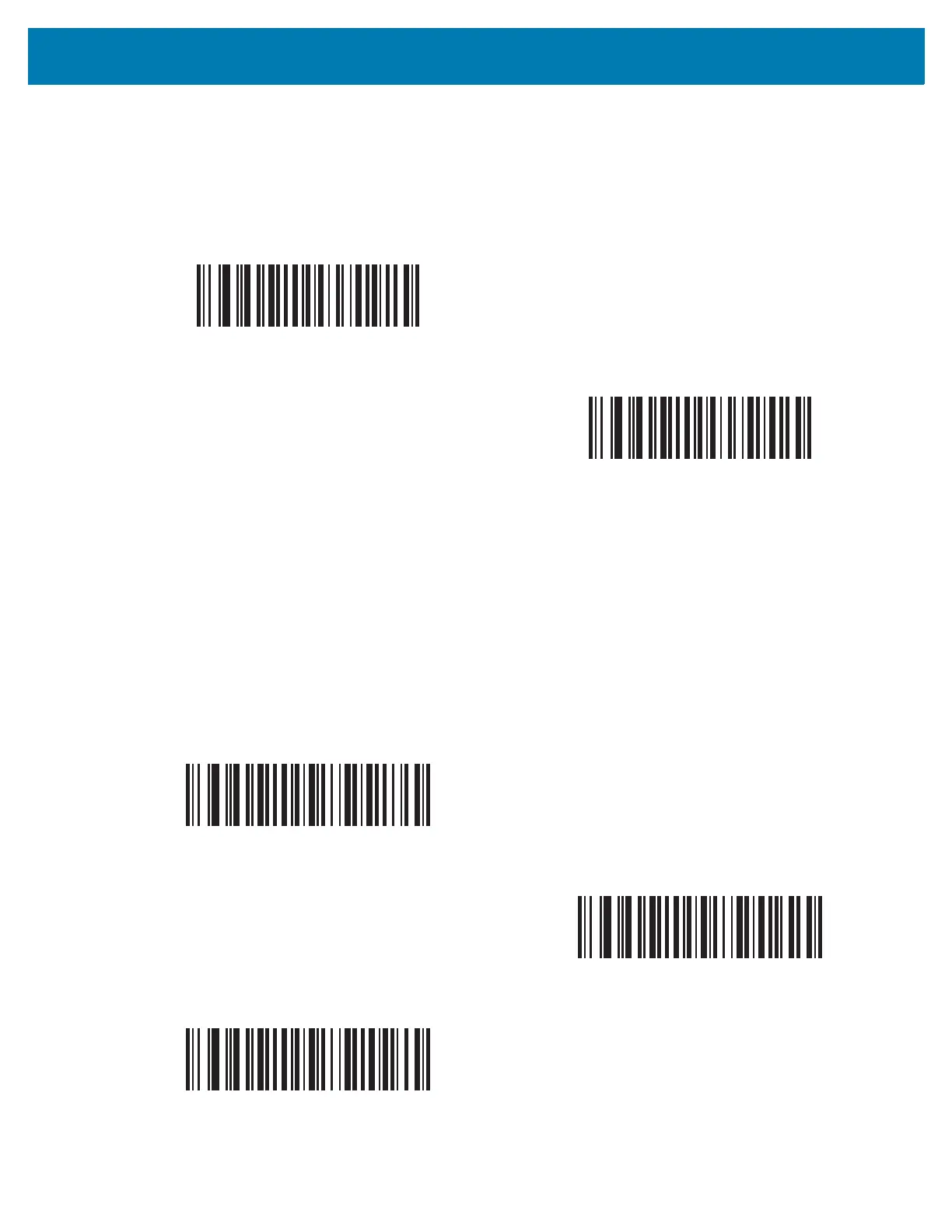

To enable or disable Aztec, scan the appropriate bar code below.

Aztec Inverse

Parameter # 589 (SSI # F1h 4Dh)

This parameter sets the Aztec inverse decoder setting. Options are:

• Regular Only - the RS6000 decodes regular Aztec bar codes only.

• Inverse Only - the RS6000 decodes inverse Aztec bar codes only.

• Inverse Autodetect - the RS6000 decodes both regular and inverse Aztec bar codes.

*Enable Aztec

(1)

Disable Aztec

(0)

Regular

(0)

Inverse Only

(1)

*Inverse Autodetect

(2)
